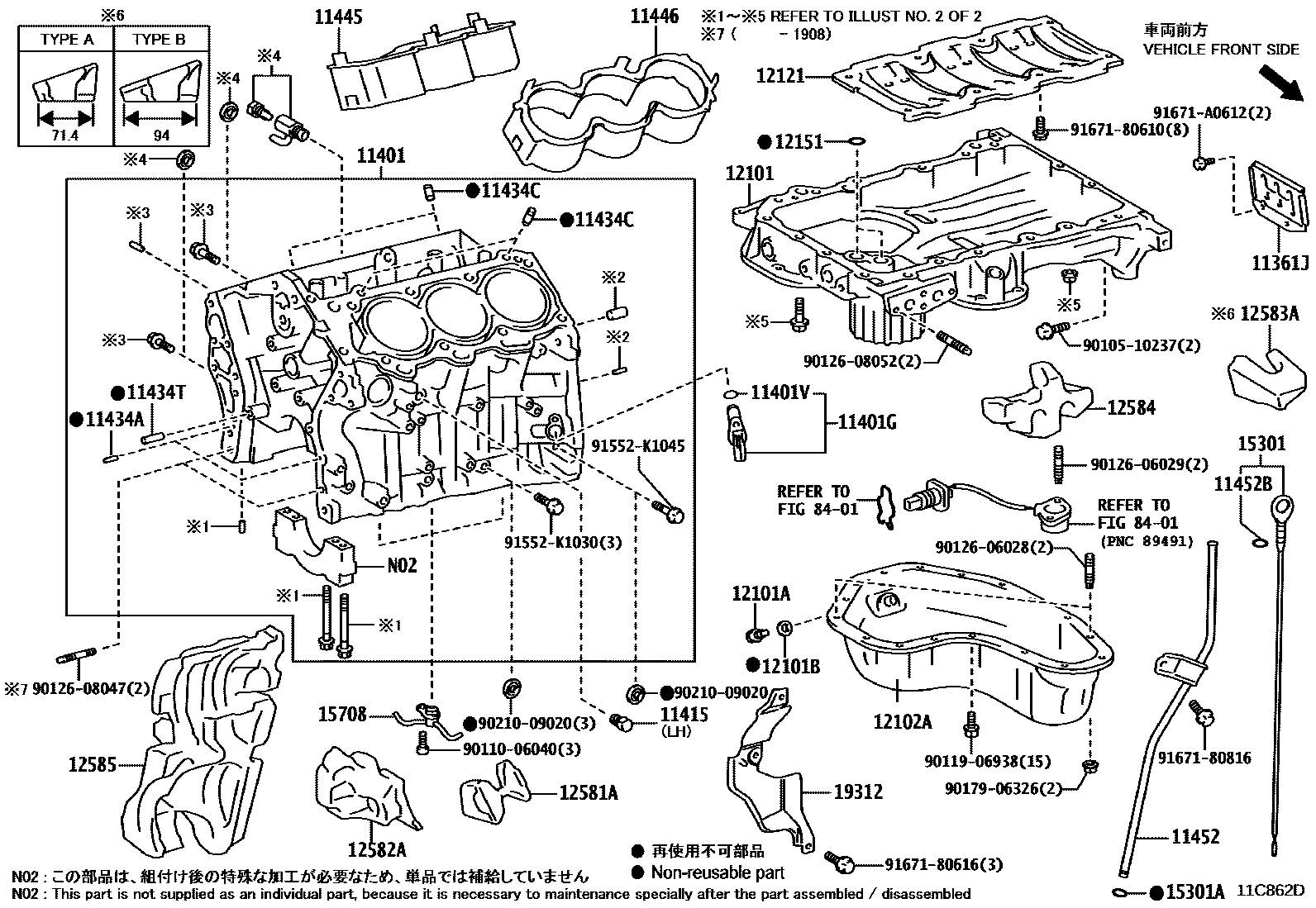

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401GSENSOR, CRANK POSITION
11401VO-RING, CRANK POSITION SENSOR
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
LH
RH
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=18,OD=8
11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)
11445SPACER, CYLINDER BLOCK WATER JACKET
11446SPACER, CYLINDER BLOCK WATER JACKET, LH
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
12121PLATE, OIL PAN BAFFLE, NO.1
12151GASKET, OIL PAN
12581AINSULATOR, CYLINDER BLOCK, NO.1
12582AINSULATOR, CYLINDER BLOCK, NO.2
12583AINSULATOR, CYLINDER BLOCK, NO.3
12584INSULATOR, CYLINDER BROCK, NO.4
main12584-31010
12585INSULATOR, CYLINDER BROCK, NO.5
main12585-31010
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15708NOZZLE SUB-ASSY, OIL, NO.1
19312PROTECTOR, CRANK POSITION SENSOR
8401
9010510237
main90105-10237
9011006040
main90110-06040
9011906938
main90119-06938
9012606028
main90126-06028
9012606029
main90126-06029
9012608047
main90126-08047
9012608052
main90126-08052
9017906326
main90179-06326
9021009020
main90210-09020
91552K1030
main91552-K1030
91552K1045
main91552-K1045
9167180610
main91671-80610
9167180616
main91671-80616
9167180816
main91671-80816
91671A0612
main91671-A0612
43 parts on this diagram · 3 diagrams in section
