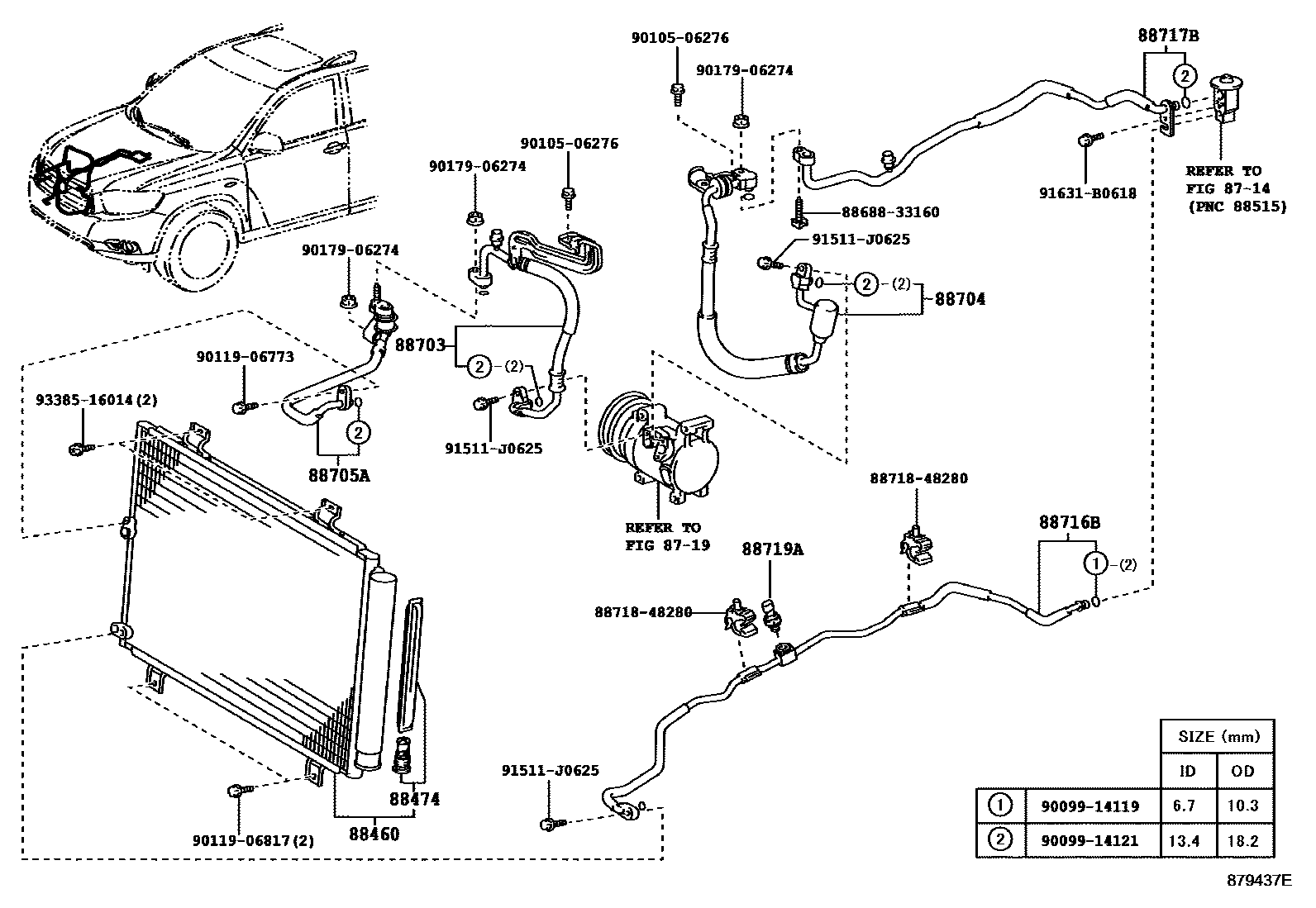

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1FRONT,W(REAR AIR CONDITIONER)0003 1FRONT 0004 1FRONT,W(REAR AIR CONDITIONER)0005 1FRONT 0006 1FRONT,W(REAR AIR CONDITIONER)0007 1FRONT 0008 1REAR 0009 1REAR 0010 1REAR

8714

8719

88460CONDENSER ASSY, COOLER

main88460-48100iASU40,GSU4#200705-201007

main88460-48110iMHU48200708-201008

main88460-48111iGVU48201008-201402

88474DRYER, COOLER

main88474-17010iASU40,GSU4#200705-201008

main88474-47020iMHU48200708-201402

88703HOSE SUB-ASSY, DISCHARGE

main88703-48151iGSU4#200705-201008

main88703-48160iMHU48200708-201008

main88703-48210iASU40200811-201008

main88703-48250iGVU48201008-201102

main88703-48251iGVU48201102-201107

main88703-48260iGVU48201107

88704HOSE SUB-ASSY, SUCTION

main88704-48120iGSU4#200705-201008

main88704-48130iMHU48200708-201008

WITH(REAR AUTO AIR CONDITIONER)

main88704-48130iMHU48200708-201008

WITH(REAR MANUAL AIR CONDITIONER)

main88704-48140iMHU48200708-201008

main88704-48190iASU40200811-201008

main88704-48230iGVU48201008-201107

main88704-48250iGVU48201107

88705ATUBE SUB-ASSY, DISCHARGE

main88705-48100iASU40,GSU4#200705-201008

main88705-48180iGVU48201008

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-48190iASU40,GSU4#..GD,SPO,STD200705-200902

WITH(REAR MANUAL AIR CONDITIONER)

sub88716-48330

main88716-48190iASU40,GSU4#..GD,SPO,STD200705-200902

WITH(REAR AUTO AIR CONDITIONER)

sub88716-48330

main88716-48200iASU40,GSU4#200705-200902

sub88716-48340

main88716-48260iMHU48200708-201008

WITH(REAR AUTO AIR CONDITIONER)

main88716-48260iMHU48200708-201008

WITH(REAR MANUAL AIR CONDITIONER)

main88716-48330iASU40,GSU4#..GD,SPO,STD200902-201008

WITH(REAR MANUAL AIR CONDITIONER)

main88716-48330iASU40,GSU4#..GD,SPO,STD200902-201008

WITH(REAR AUTO AIR CONDITIONER)

main88716-48340iASU40,GSU4#200902-201008

main88716-48420iGVU48201008-201402

main88716-48450iGVU48201107-201402

ECUADOR SPEC

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88717-48120iASU40,GSU4#..GD,SPO,STD200705-201008

WITH(REAR MANUAL AIR CONDITIONER)

main88717-48120iASU40,GSU4#..GD,SPO,STD200705-201008

WITH(REAR AUTO AIR CONDITIONER)

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-48080iGSU4#..GD,LIMD,SPO200705-201008

WITH(REAR AUTO AIR CONDITIONER)

main88717-48080iASU40,GSU4#..GD,SPO,STD200705-201008

WITH(REAR MANUAL AIR CONDITIONER)

main88717-48090iASU40,GSU4#200705-201008

main88717-48150iMHU48200708-201008

WITH(REAR MANUAL AIR CONDITIONER)

main88717-48150iMHU48200708-201008

WITH(REAR AUTO AIR CONDITIONER)

main88717-48250iGVU48201008-201402

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iASU40,GSU4#,MHU48200705-201402

8868833160BRACKET, COOLER DIAPHRAGM

main88688-33160

8871848280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48280

9009914119

main90099-14119

9009914121

main90099-14121

9010506276

main90105-06276

9011906773

main90119-06773

9011906817

main90119-06817

9017906274

main90179-06274

91511J0625

main91511-J0625

91631B0618

main91631-B0618

9338516014

main93385-16014

22 parts on this diagram · 10 diagrams in section
