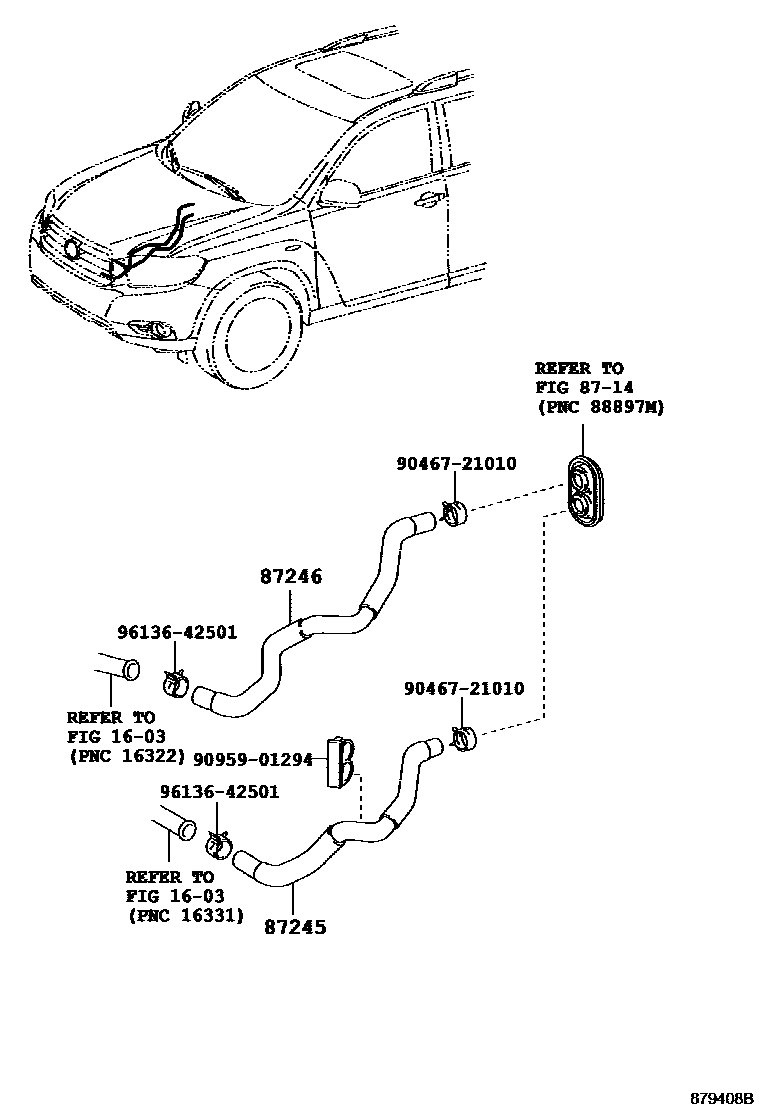

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT,W(REAR HEATER) 0003 1FRONT 0004 1FRONT,W(REAR HEATER) 0005 1FRONT 0006 1FRONT,W(REAR HEATER) 0007 1FRONT 0008 1REAR 0009 1REAR 0010 1REAR

1603

8714

87245HOSE, HEATER WATER, INLET

main87245-48A30iASU40200811-201008

main87245-48C00iGSU4#200705-201008

main87245-48D40iGVU48201008

87246HOSE, HEATER WATER, OUTLET

main87245-48750iMHU48200708-201008

main87245-48C10iGSU4#200705-201008

main87245-48C60iASU40200811-201008

main87245-48D30iGVU48201008

9046721010

main90467-21010

9095901294

main90959-01294

9613642501

main96136-42501

7 parts on this diagram · 10 diagrams in section
