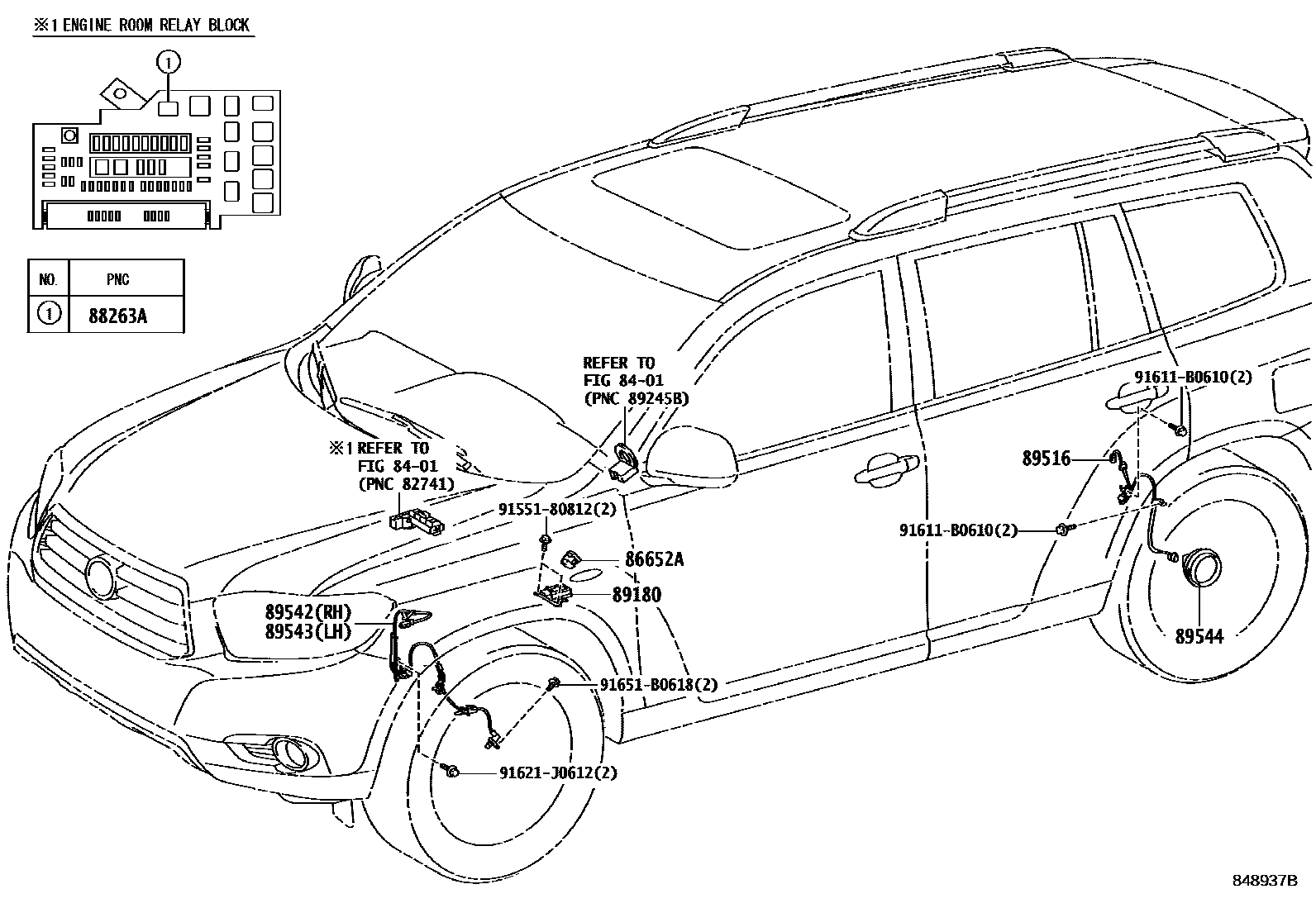

ABS & VSC

0001 1 0002 1 0003 1 0004 1

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iASU40,GSU4#,MHU48200705-201008

88263ARELAY, SKID CONTROL

main90987-04004iASU40,GSU4#,MHU48200705-201402

89180SENSOR ASSY, YAWRATE

main89180-48050iASU40,GSU4#200705-200903

sub89180-48090

main89180-48060iMHU48200708-200903

sub89180-48080

main89180-48080iMHU48200904-201008

main89180-48090iASU40,GSU4#200904-201008

89516WIRE, SKID CONTROL SENSOR

main89516-48050iASU40,GSU40200705-201008

RH

main89516-48060iASU40,GSU40200705-201008

LH

89542SENSOR, SPEED, FRONT RH

main89542-48040iASU40,GSU4#,MHU48200705-201008

89543SENSOR, SPEED, FRONT LH

main89543-48040iASU40,GSU4#,MHU48200705-201008

89544SENSOR, SKID CONTROL

main89544-28010iASU40,GSU40200705-201007

9155180812

main91551-80812

91611B0610

main91611-B0610

91621J0612

main91621-J0612

91651B0618

main91651-B0618

12 parts on this diagram · 4 diagrams in section
