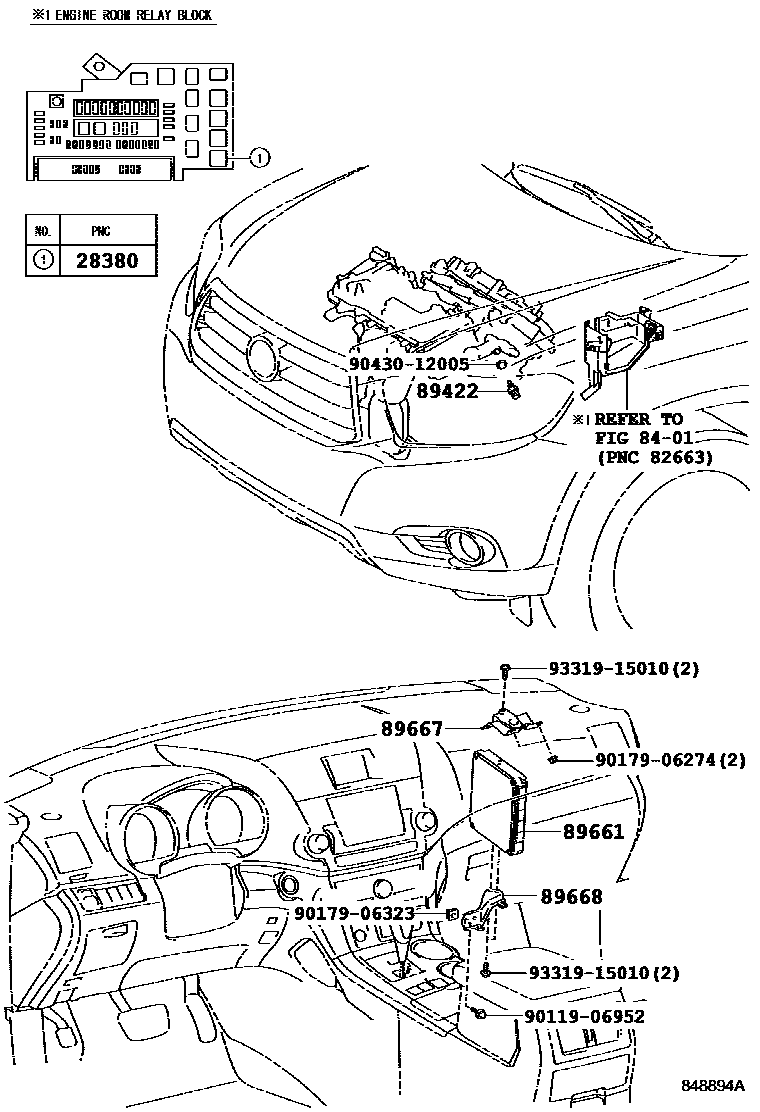

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

28380RELAY ASSY, FUEL PUMP

main90987-04004i2GRFE..GSU4#200705-201402

8401

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33020iMHU48200708-201008

P/N LABEL=8942233020

main89422-33030iASU40,GSU4#200705-201402

main89422-35010iMHU48200708-201008

P/N LABEL=8942235010

89661COMPUTER, ENGINE CONTROL

main89661-48B60iGSU40200705-200707

sub89661-48B61

main89661-48B61iGSU40200708-200802

main89661-48B62iGSU40200802-200808

sub89661-48F11

main89661-48B70iGSU45200705-200707

sub89661-48B71

main89661-48B71iGSU45200708-200802

main89661-48B72iGSU45200802-200808

sub89661-48F21

main89661-48F10iGSU40200808-200905

sub89661-48F11

main89661-48F11iGSU40200906-201008

sub89661-48F12

main89661-48F20iGSU45200808-200905

sub89661-48F21

main89661-48F21iGSU45200906-201008

sub89661-48F22

main89661-48F30iASU40200811-200901

sub89661-48F31

sub89530-48091

main89661-48F31iASU40200901-201008

sub89661-48F32

main89661-48G20iGVU48201008-201208

sub89661-48G21

main89661-48N80iGVU48201208

sub89661-48N81

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-48090iGSU4#200705-201008

main89667-48120iGVU48201008

main89667-48140iASU40200811-201008

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-48070iGSU4#200705-201008

main89668-48120iASU40200811-201008

main89668-48140iGVU48201008

9011906952

main90119-06952

9017906274

main90179-06274

9017906323

main90179-06323

9043012005

main90430-12005

9331915010

main93319-15010

11 parts on this diagram · 4 diagrams in section
