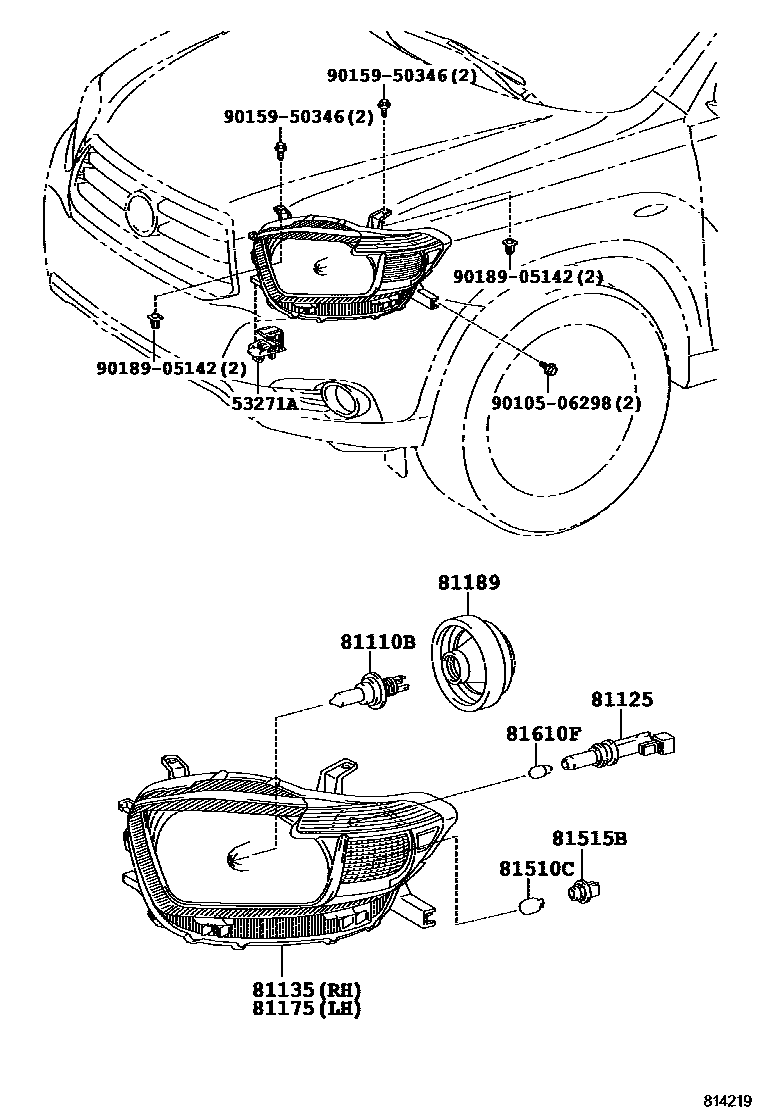

HEADLAMP

0001 1 0003 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060iASU40,GSU4#,MHU48200705-201402

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iGVU48201008

12V65W(SAE),60W(ECE)

main90981-13058iASU40,GSU4#200705-201008

12V 60/55W,HALOGEN

81125CORD, HEADLAMP

main81125-48470iASU40,GSU4#200705-201008

81135UNIT ASSY, HEADLAMP, RH

main81130-48470iASU40,GSU4#..GD,LIMD,STD200705-201007

main81130-48480iGSU4#..SPO200705-201007

main81130-48490iMHU48200708-201008

main81130-48540iGVU48201008

81175UNIT ASSY, HEADLAMP, LH

main81170-48460iASU40,GSU4#..GD,LIMD,STD200705-201007

main81170-48470iGSU4#..SPO200705-201007

main81170-48480iMHU48200708-201008

main81170-48540iGVU48201008

81189COVER, HEADLAMP

main90075-65002iASU40,GSU4#200705-201008

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iASU40,GSU4#200705-201008

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iASU40,GSU4#200705-201008

main90075-60060iGVU48201008

81610FBULB(FOR CLEARANCE LAMP)

main90981-15012iASU40,GSU4#200705-201008

12V 5W

9010506298

main90105-06298

9015950346

main90159-50346

9018905142

main90189-05142

12 parts on this diagram · 2 diagrams in section
