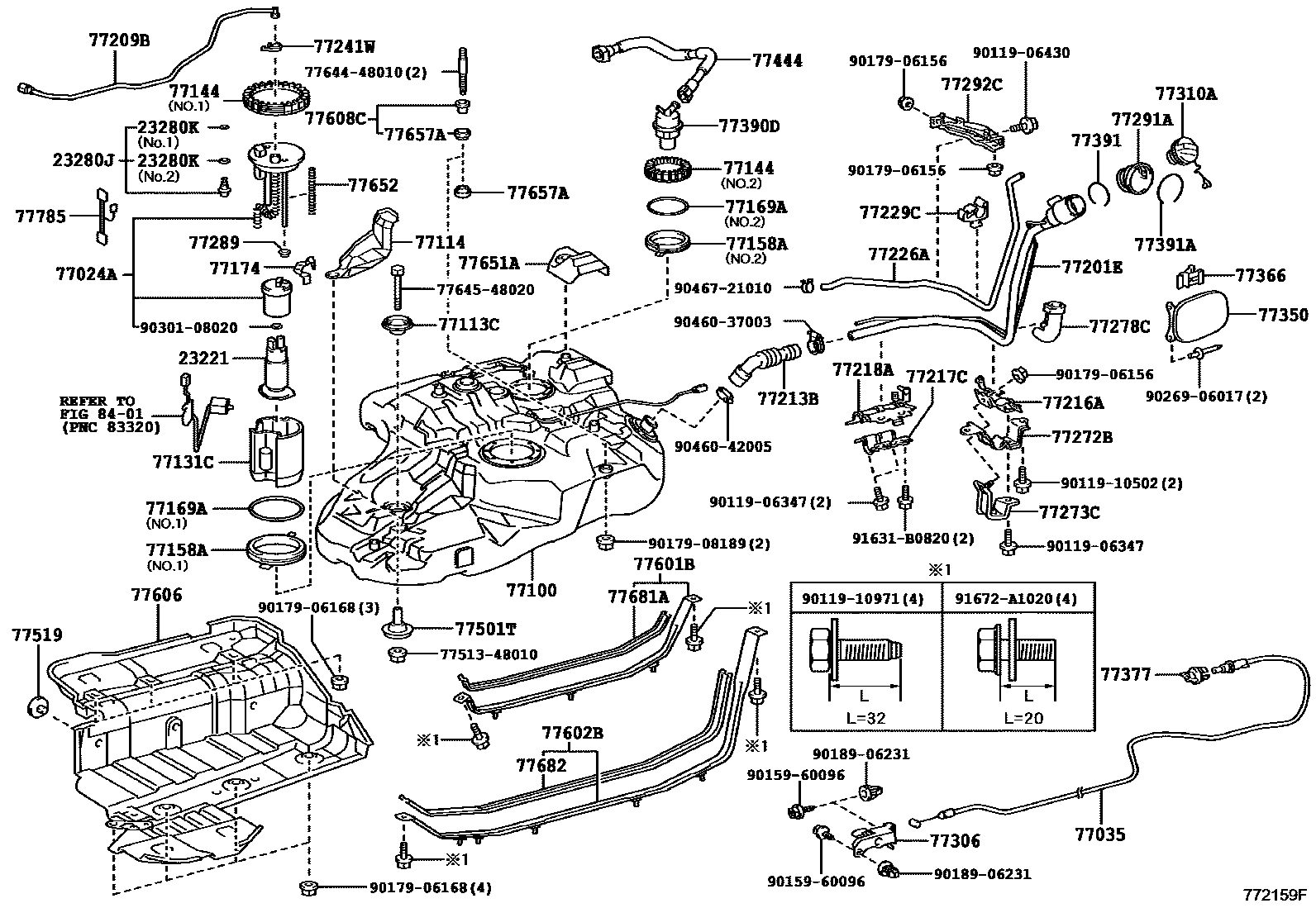

FUEL TANK & TUBE
23221PUMP, FUEL
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.1
NO.2:REFER ILLUST.
NO.2
77024APLATE SUB-ASSY, FUEL SUCTION
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77113CPLATE, FUEL TANK SIDE
77114PLATE, FUEL TANK SIDE, REAR
77144RETAINER, FUEL PUMP GAUGE
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
77158ASUPPORT, TANK SUCTION TUBE
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
77169AGASKET, FUEL SUCTION TUBE SET
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
77174SUPPORT, FUEL SUCTION, NO.1
77209CONNECTOR SUB-ASSY, FUEL TUBE
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
sub77213-48061
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218PLATE, FUEL INLET PIPE SET
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77226ATUBE, FUEL TANK BREATHER, NO.6
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77272BSUPPORT, BREATHER TUBE, NO.1
77273CSUPPORT, BREATHER TUBE, NO.2
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77289HOLDER, FUEL TANK PIPE SETTING
77291ASHIELD, FUEL TANK FILLER PIPE
77292CSHIELD, FUEL TANK FILLER PIPE, NO.2
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77390DVALVE ASSY, FUEL TANK OVER FILL CHECK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77444HOSE, FUEL TANK VENT
77501TBRACKET SUB-ASSY, FUEL TANK
77519SPACER, FUEL TANK BRACKET
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77608CCUSHION SET, FUEL TANK
RH
LH
77651ACUSHION, FUEL TANK, NO.1
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
77657ACUSHION, FUEL TANK, NO.5
RH
LH
77681ASEAT, FUEL TANK BAND
77682SEAT, FUEL TANK BAND, LH
8401
7751348010RETAINER, LPG TANK BRACKET, FRONT
main77513-48010
7764448010BOLT, FUEL TANK
main77644-48010
7764548020PACKING, FUEL TANK BRACKET UPPER, B
main77645-48020
9011906347
main90119-06347
9011906430
main90119-06430
9011910502
main90119-10502
9011910971
main90119-10971
9015960096
main90159-60096
9017906156
main90179-06156
9017906168
main90179-06168
9017908189
main90179-08189
9018906231
main90189-06231
9026906017
main90269-06017
9030108020
main90301-08020
9046037003
main90460-37003
9046042005
main90460-42005
9046721010
main90467-21010
91631B0820
main91631-B0820
91672A1020
main91672-A1020
