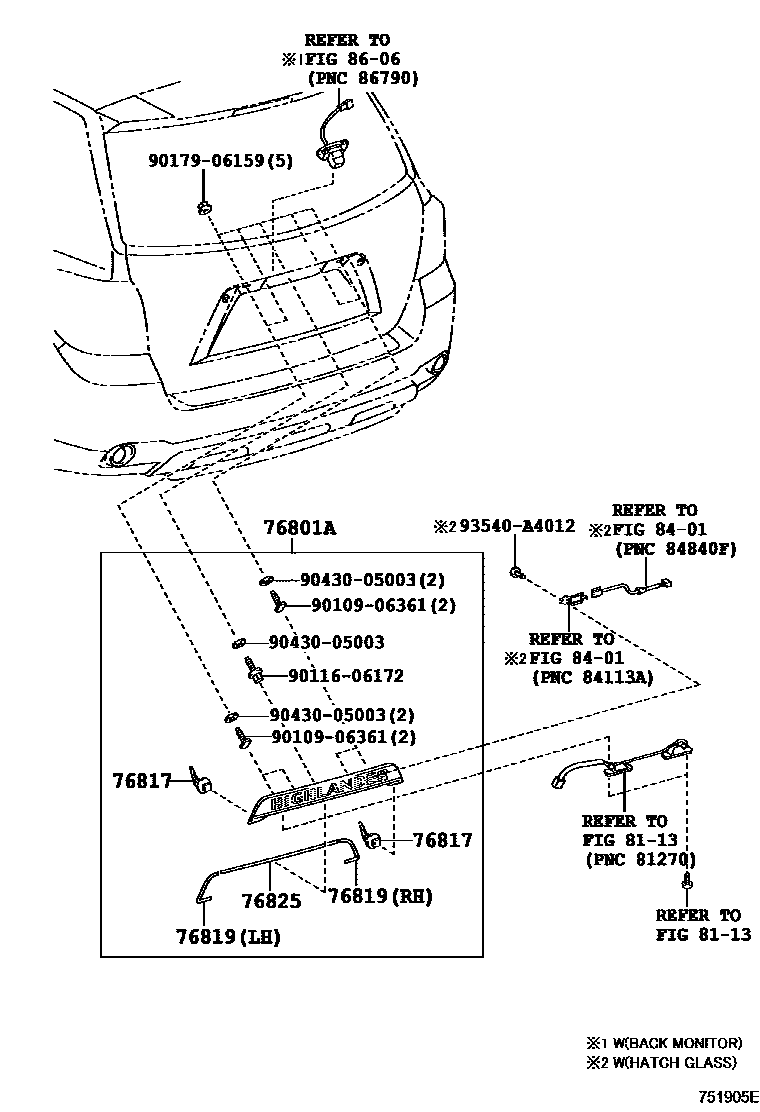

REAR MOULDING
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
NO PAINT REQ.
NO PAINT REQ.
PLATED
NO PAINT REQ.,MULTI INFORMATION DISPLAY-WITH 3.5INCH MONITOR
76817CLIP, BACK DOOR OUTSIDE GARNISH
76819SEAL, BACK DOOR OUTSIDE GARNISH
RH
RH
LH
LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
8113
8401
8606
9010906361
main90109-06361
9011606172
main90116-06172
9017906159
main90179-06159
9043005003
main90430-05003
93540A4012
main93540-A4012
12 parts on this diagram · 2 diagrams in section
