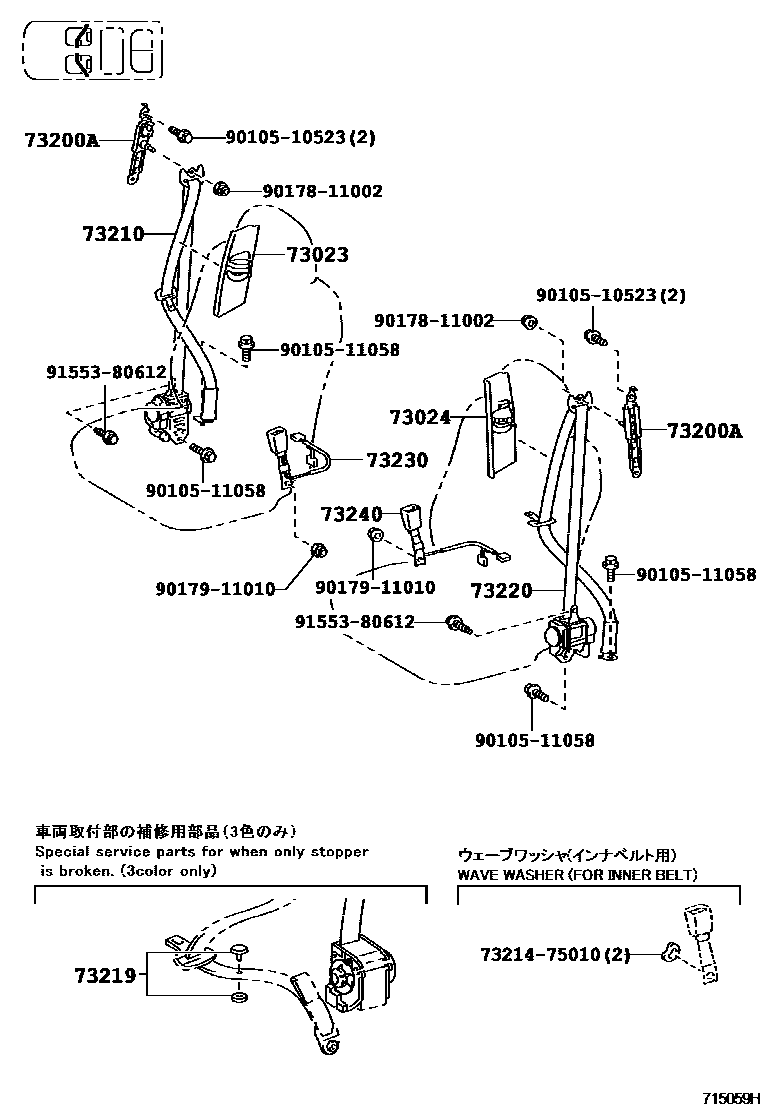

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT 0004 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33020-B0iGSU4#..GD,LIMD,SPO200705-201402

GRAY,TRIM1#,2#

sub73023-33020¥2,070

main73023-33020-B0iMHU48;ASU40,GSU4#..STD200705-201008

GRAY,TRIM1#

sub73023-33020¥2,070

main73023-33020-E1iGVU48200705-201402

SAND BEIGE,TRIM4#

sub73023-33020¥2,070

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33020-B0iGSU4#..GD,LIMD,SPO200705-201402

GRAY,TRIM1#,2#

sub73024-33020¥2,070

main73024-33020-B0iMHU48;ASU40,GSU4#..STD200705-201008

GRAY,TRIM1#

sub73024-33020¥2,070

main73024-33020-E1iGVU48200705-201402

SAND BEIGE,TRIM4#

sub73024-33020¥2,070

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010iASU40,GSU4#,MHU48¥3,020200705-201008

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-48160-A0iASU40,GSU4#,MHU48200705-201008

IVORY,TRIM4#

main73210-48160-B0iASU40,GSU4#,MHU48200705-201008

GRAY,TRIM1#

main73210-48160-C0iGSU4#..GD,LIMD,SPO200705-201007

BLACK,TRIM2#

main73210-48320-A0iGVU48201008-201402

SAND BEIGE,TRIM4#

main73210-48320-B0iGVU48201008-201402

GRAY,TRIM1#

main73210-48320-C0iGVU48201008-201402

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-02010iGVU48¥80200705-201008

BLACK

main73219-02020iASU40,GSU4#,MHU48¥80200705-201008

GRAY

main73219-02030iGVU48¥80200705-201008

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-48150-A0iASU40,GSU4#,MHU48200705-201008

IVORY,TRIM4#

sub73220-48150¥37,800

main73220-48150-B0iASU40,GSU4#,MHU48200705-201008

GRAY,TRIM1#

sub73220-48150¥37,800

main73220-48150-C0iGSU4#..GD,LIMD,SPO200705-201007

BLACK,TRIM2#

sub73220-48150¥37,800

main73220-48270-A0iGVU48201008-201402

SAND BEIGE,TRIM4#

main73220-48270-B0iGVU48201008-201402

GRAY,TRIM1#

main73220-48270-C0iGVU48201008-201402

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-48160-B0iMHU48;ASU40,GSU4#..GD,SPO,STD200705-201402

GRAY,TRIM1#

sub73230-48160¥10,000

main73230-48160-C0iGSU4#..GD,SPO200705-201402

BLACK,TRIM2#

sub73230-48160¥10,000

main73230-48160-E0iGVU48..STD200705-201402

SAND BEIGE,TRIM4#

sub73230-48160¥10,000

main73230-48230-B0iGSU4#..LIMD200705-201402

GRAY,TRIM1#

sub73230-48230¥9,100

main73230-48230-C0iGSU4#..LIMD200705-201402

BLACK,TRIM2#

sub73230-48230¥9,100

main73230-48230-E0iGSU4#..LIMD200705-201402

SAND BEIGE,TRIM4#

sub73230-48230¥9,100

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-48240-B0iASU40,GSU4#..STD200705-201007

GRAY,TRIM1#

main73230-48240-E0iASU40,GSU4#..STD200705-201007

SAND BEIGE,TRIM4#

main73230-48250-B0iMHU48;GSU4#..GD,LIMD,SPO200705-201402

GRAY,TRIM1#

main73230-48250-C0iGVU48200705-201402

BLACK,TRIM2#

main73230-48250-E0iMHU48;GSU4#..GD,LIMD,SPO200705-201402

SAND BEIGE,TRIM4#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010¥170

9010510523

main90105-10523¥100

9010511058

main90105-11058¥100

9017811002

main90178-11002¥100

9017911010

main90179-11010¥110

9155380612

main91553-80612¥60

14 parts on this diagram · 4 diagrams in section
