BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67005PANEL SUB-ASSY, BACK DOOR

main67005-48430iGVU48..LIMD201008-201204

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

sub67005-48431

main67005-48430iGSU4#..GD,LIMD,SPO200705-201007

POWRE BACK DOOR-WITH

sub67005-48431

main67005-48430iMHU48..LIMD200708-201008

COMFORT PACKAGE

sub67005-48431

main67005-48431iGVU48..LIMD201205-201206

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

sub67005-48432

main67005-48432iGVU48..STD201207-201402

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

sub67005-0E232

main67005-48450iMHU48..STD;GSU4#..GD,LIMD,SPO200705-201204

sub67005-48451

main67005-48450iGSU4#..STD200909-201007

MULTI INFORMATION DISPLAY-WITH 3.5INCH MONITOR

sub67005-48451

main67005-48451iGVU48..STD201205-201206

sub67005-48452

main67005-48452iGVU48..STD201207-201402

sub67005-0E242

main67005-48460iASU40,GSU4#..STD200705-201007

sub67005-0E252

6709

67881AWEATHERSTRIP, BACK DOOR

main67881-48040iGSU4#,MHU48200705-200810

sub67881-48041

main67881-48041iASU40,GSU4#,MHU48200811-201008

67882DWEATHERSTRIP, BACK DOOR, NO.2

main67882-48010iASU40,GSU4#,MHU48200705-201107

sub67882-48030

main67882-48030iGVU48201108

67891ASEAL, BACK DOOR

main67891-48010iGSU4#,MHU48200705-200811

68131GLASS, BACK DOOR

main68105-48180iASU40,GSU4#,MHU48..STD200705-200906

*EHT,T=5.0,PRIVACY

main68105-48181iASU40,GSU4#,MHU48..STD200907-200909

*EHT,T=5.0,PRIVACY

sub68105-48182

main68105-48182iGVU48..STD200910-201008

*EHT,T=5.0,PRIVACY

main68105-48190iGSU4#,MHU48..GD,LIMD,SPO200705-200805

*EHT,T=5.0,PRIVACY

sub68105-48191

main68105-48190iMHU48..STD200708-200805

*EHT,T=5.0,PRIVACY,COMFORT PACKAGE

sub68105-48191

main68105-48191iGSU4#,MHU48..GD,LIMD,SPO200806-200906

*EHT,T=5.0,PRIVACY,COMFORT PACKAGE

sub68105-48192

main68105-48191iMHU48..STD200806-200906

*EHT,T=5.0,PRIVACY

sub68105-48192

main68105-48192iMHU48..STD200907-200909

*EHT,T=5.0,PRIVACY,COMFORT PACKAGE

sub68105-48193

main68105-48192iGSU4#,MHU48..GD,LIMD,SPO200907-200909

*EHT,T=5.0,PRIVACY

sub68105-48193

main68105-48193iGVU48..STD200910-201008

*EHT,T=5.0,PRIVACY

main68105-48193iGSU4#,MHU48..GD,LIMD,SPO200910-201008

*EHT,T=5.0,PRIVACY,COMFORT PACKAGE

main68105-48193iGVU48..LIMD201008

*EHT,T=5.0,PRIVACY,BACK GLASS-WITH(GLASS HATCH-BACK DOOR)

68678PROTECTOR, BACK DOOR WINDOW

main68678-48010iGSU4#,MHU48..GD,LIMD,SPO200705-201008

main68678-48010iMHU48..STD200708-201008

COMFORT PACKAGE

main68678-48010iGVU48..LIMD201008

BACK GLASS-WITH(GLASS HATCH-BACK DOOR)

69806BRACKET SUB-ASSY, BACK DOOR GLASS GUIDE

main69806-48010iASU40,GSU4#,MHU48..STD200705-201008

75129CCUSHION, REAR LICENCE PLATE

main75129-48010iGVU48200705-201008

9011906864

main90119-06864

9011906897

main90119-06897

9017906341

main90179-06341

9046709206

main90467-09206

9054109128

main90541-09128

9054111006

main90541-11006

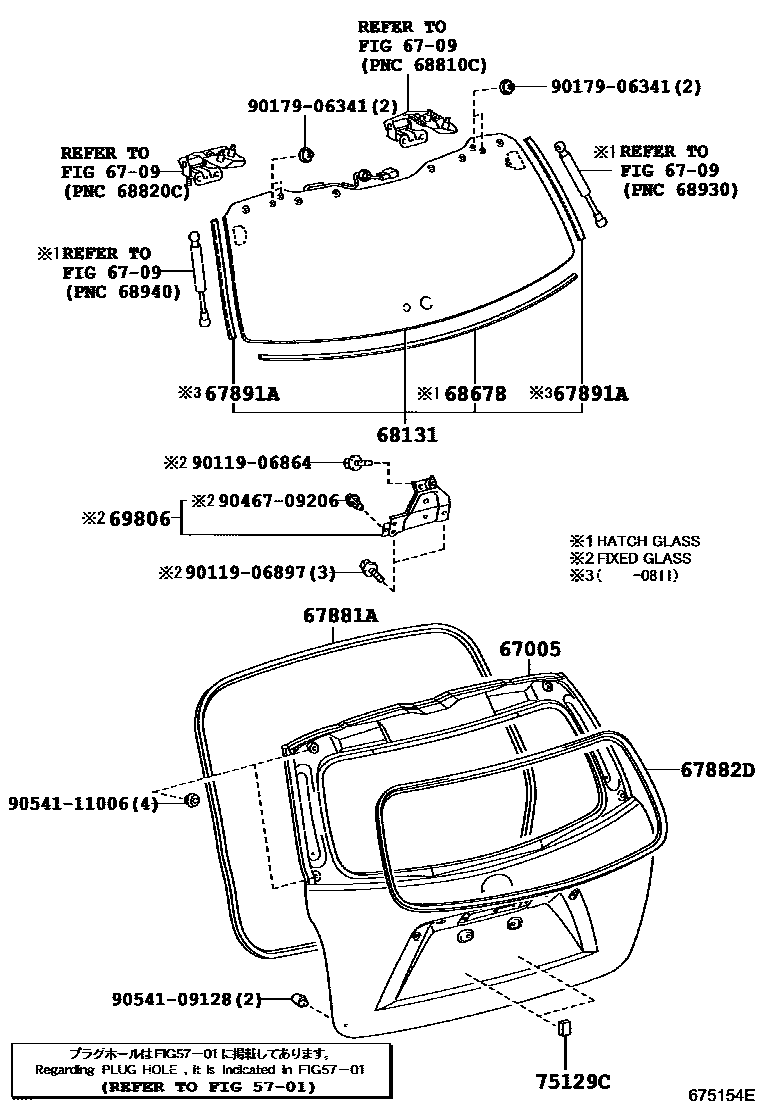

15 parts on this diagram · 2 diagrams in section
