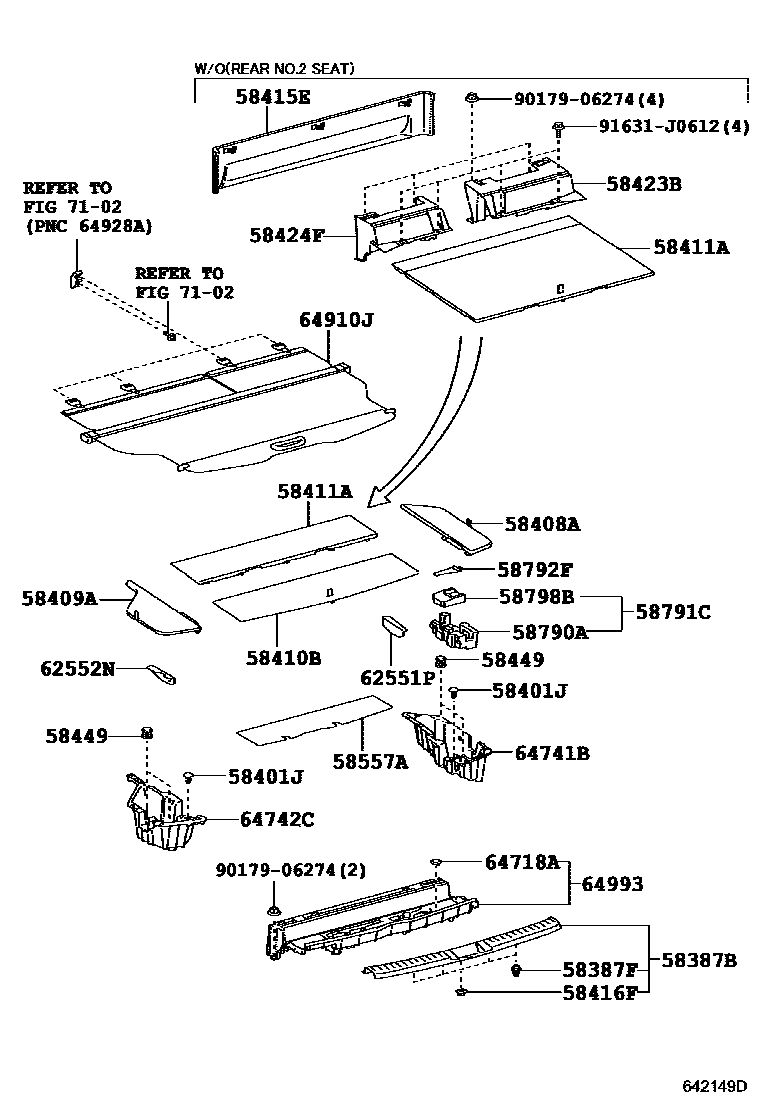

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
58387FCLIP, REAR FLOOR FINISH PLATE
58401JCLIP(FOR DECK BOAD)
58408ABOARD SUB-ASSY, DECK, NO.2
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
58409ABOARD SUB-ASSY, DECK, NO.3
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
58410BBOARD ASSY, DECK
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
58411ABOARD, DECK, NO.1
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
58415EBOARD, REAR FLOOR, NO.1
58416FBRACKET, DECK BOARD, NO.1
58423BSPACER, REAR FLOOR BOARD, NO.2
58424FSPACER, REAR FLOOR BOARD, NO.3
58557AMAT, REAR
58790ACARRIER ASSY, JACK
58791CCARRIER, JACK
58792FSUPPORT, JACK CARRIER
58798BCUSHION, JACK CARRIER
62551PCOVER, REAR SEAT SIDE, RH
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
62552NCOVER, REAR SEAT SIDE, LH
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
64718ACOVER, DECK TRIM SERVICE HOLE
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
64910JCOVER ASSY, TONNEAU
COMFORT PACKAGE&TONEAU COVER-WITH,GRAY,TRIM1#
sub64910-48091
COMFORT PACKAGE&TONEAU COVER-WITH,SAND BEIGE,TRIM4#
sub64910-48091
64993BOX, DECK FLOOR, REAR
7102
9017906274
main90179-06274
91631J0612
main91631-J0612
27 parts on this diagram · 3 diagrams in section
