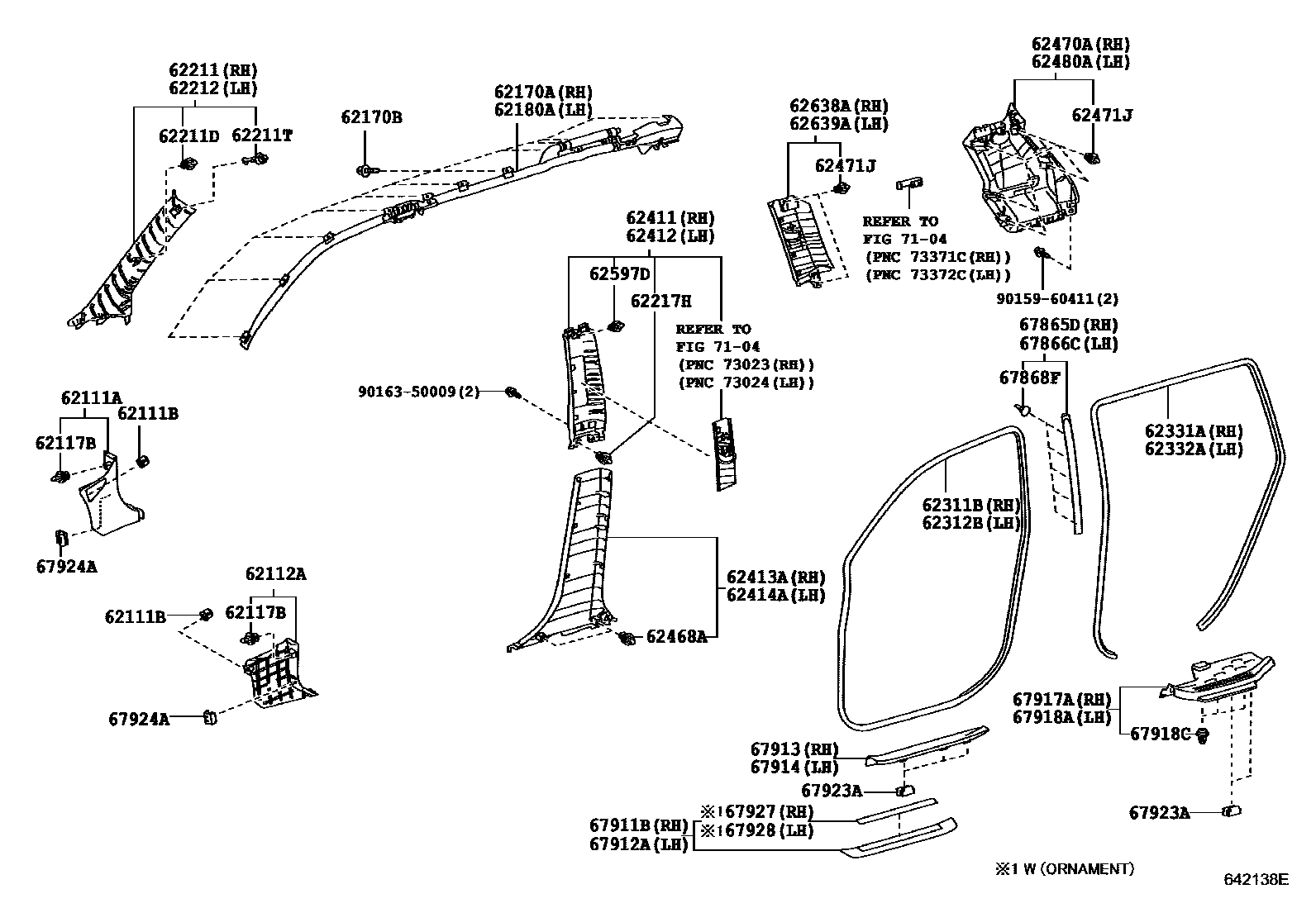

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111ATRIM SUB-ASSY, COWL SIDE, RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
62112ATRIM SUB-ASSY, COWL SIDE, LH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
62217HCLIP, CENTER PILLER GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
62411GARNISH, CENTER PILLAR, RH
GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
62412GARNISH, CENTER PILLAR, LH
GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
62414AGARNISH, CENTER PILLAR, LOWER LH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
62468ACLIP (FOR CENTER PILLAR REAR GARNISH)
62470AGARNISH ASSY, ROOF SIDE, INNER RH
62471JCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),GRAY,TRIM1#,2#
sub62480-48101
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),SAND BEIGE,TRIM4#
sub62480-48101
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),GRAY,TRIM1#,2#
sub62480-48102
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),SAND BEIGE,TRIM4#
sub62480-48102
62597DCLIP
62638AGARNISH, QUARTER PILLAR, RH
GRAY,TRIM1#,2#
SAND BEIGE,TRIM4#
62639AGARNISH, QUARTER PILLAR, LH
67865DWEATHERSTRIP, CENTER PILLAR UPPER END, RH
67866CWEATHERSTRIP, CENTER PILLAR UPPER END, LH
67868FRETAINER, DOOR WEATHERSTRIP, LH
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
67913PLATE, FRONT DOOR SCUFF, RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
67917APLATE, REAR DOOR SCUFF, RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
67918APLATE, REAR DOOR SCUFF, LH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
67918CCLIP(FOR REAR SCUFF PLATE)
YELLOW
NATURAL
67923ACLAMP, DOOR SCUFF PLATE, NO.1
67924ACLAMP, DOOR SCUFF PLATE, NO.2
67927ORNAMENT, FRONT DOOR SCUFF, RH
67928ORNAMENT, FRONT DOOR SCUFF, LH
7104
9015960411
main90159-60411
9016350009
main90163-50009
44 parts on this diagram · 1 diagram in section
