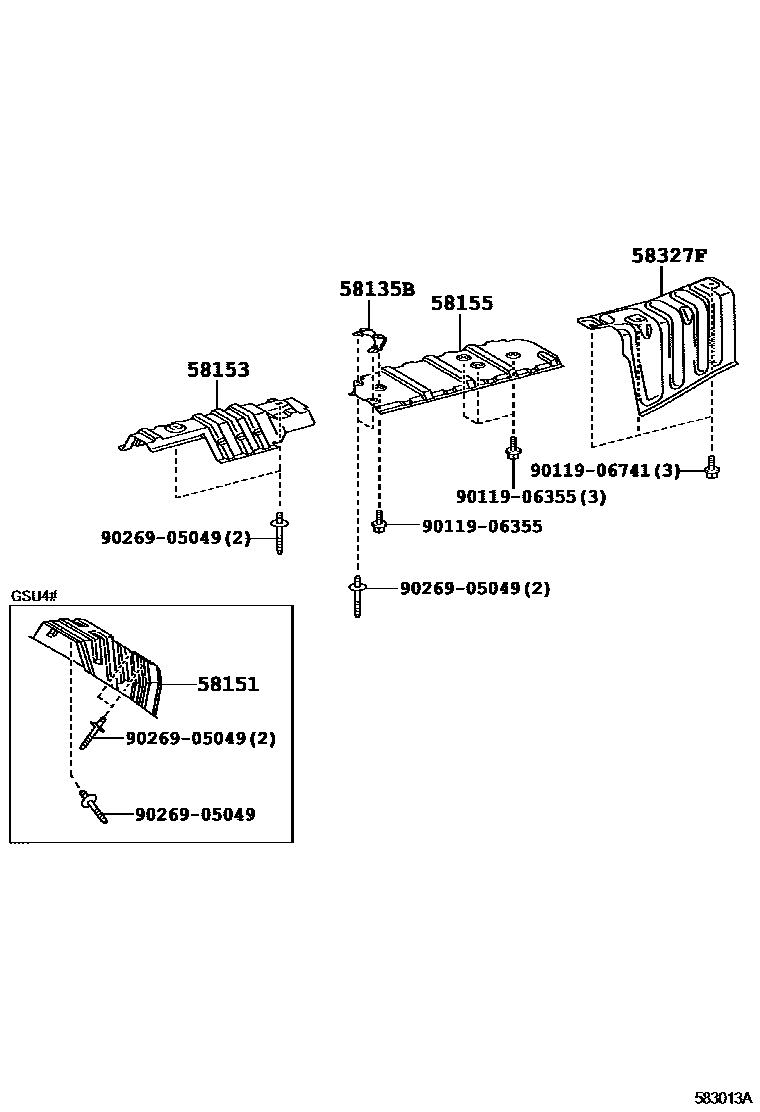

FLOOR INSULATOR

0001 1 0002 1

58135BBRACKET, FLOOR INSULATOR SUPPORT

main58135-48010iASU40,GSU4#200705-201008

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-48031iGSU4#200705-200801

sub58151-48032

main58151-48032iGSU4#200802-201008

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-48020iASU40,GSU4#,MHU48200705-201008

main58153-48050iGVU48201008

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-48021iASU40,GSU4#200705-201008

main58155-48030iMHU48200708-201008

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-48040iASU40,GSU4#,MHU48200705-201008

9011906355

main90119-06355

9011906741

main90119-06741

9026905049

main90269-05049

8 parts on this diagram · 2 diagrams in section
