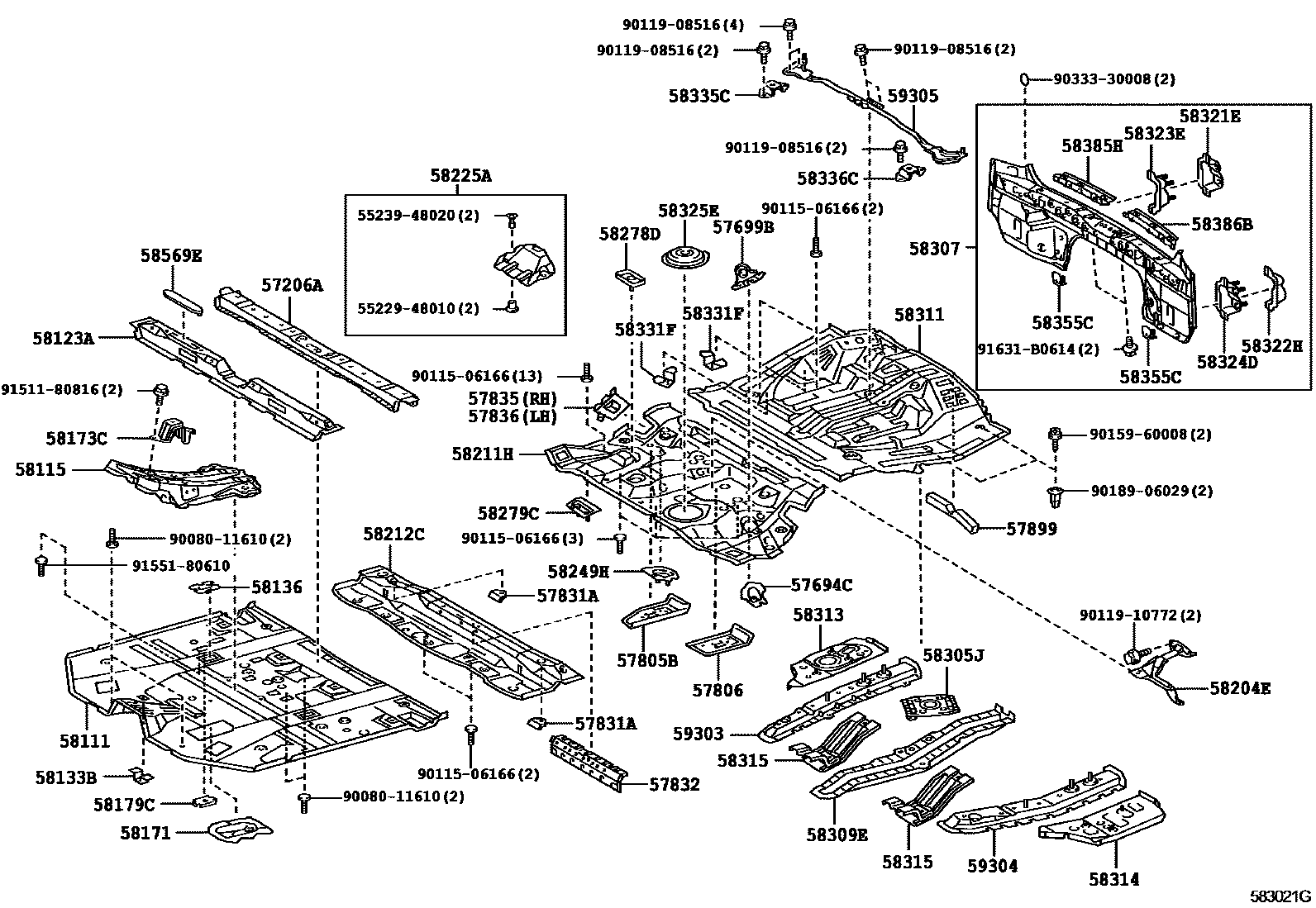

FLOOR PAN & LOWER BACK PANEL
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57694CREINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH
57699BREINFORCE, FUEL TANK MOUNTING BRACKET, NO.3
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57899SEAL, REAR FLOOR, REAR
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58173CBRACKET, WIRING HARNESS PROTECTOR
58179CBRACKET, CLAMP FLOOR
58204EBRACKET SUB-ASSY, FRONT SEAT
58211HPAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58225ABRACKET, CENTER MOUNTING
58249HBRACKET, CENTER FLOOR BOARD SUPPORT
58278DPROTECTOR, FUEL TANK, UPPER
58279CPROTECTOR, FUEL TANK, UPPER NO.2
58305JBRACKET, SPARE WHEEL CARRIER
58307PANEL SUB-ASSY, BODY LOWER BACK
58309EPLATE SUB-ASSY, REAR FLOOR
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315EXTENSION, REAR FLOOR PANEL
58321EPLATE, REAR BUMPER ARM SUPPORT, RH
58322HPLATE, REAR BUMPER ARM SUPPORT, LH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58335CPLATE, FLOOR SIDE, FRONT RH
WITHOUT(REAR NO.2 SEAT)
REAR NO.2 SEAT-WITHOUT
58336CPLATE, FLOOR SIDE, FRONT LH
WITHOUT(REAR NO.2 SEAT)
REAR NO.2 SEAT-WITHOUT
58355CBRACKET, REAR BUMPER ARM
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58569ECOVER, FRONT FLOOR CAUTION PLATE
59303PANEL SUB-ASSY, 3RD SEAT FLOOR SIDE, RH
59304PANEL SUB-ASSY, 3RD SEAT FLOOR SIDE, LH
59305MEMBER SUB-ASSY, 3RD SEAT FLOOR CROSS
5522948010PLATE, DASH PANEL INSULATOR, NO.4
main55229-48010
5523948020SILENCER, STEERING COLUMN HOLE COVER
main55239-48020
9008011610
main90080-11610
9011506166
main90115-06166
9011908516
main90119-08516
9011910772
main90119-10772
9015960008
main90159-60008
9018906029
main90189-06029
9033330008
main90333-30008
9151180816
main91511-80816
9155180610
main91551-80610
91631B0614
main91631-B0614
59 parts on this diagram · 5 diagrams in section
