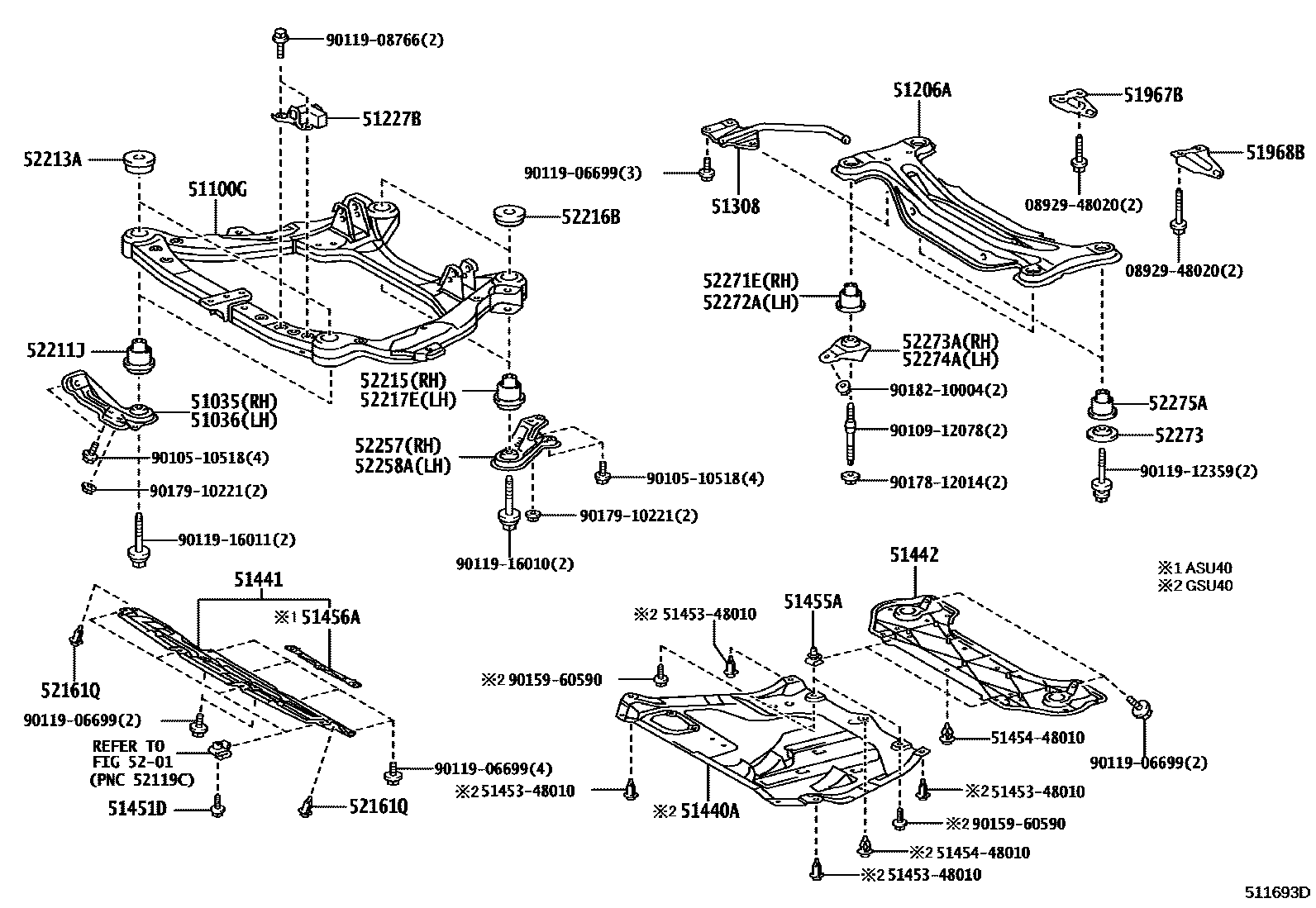

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-48020iGVU48200705-201107

sub51035-48021

main51035-48021iGVU48201108

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-48020iASU40,GSU4#,MHU48200705-201107

sub51036-48021

main51036-48021iGVU48201108

51100GFRAME ASSY, FRONT

main51100-48060iMHU48200708-200806

sub51100-48061

main51100-48061iMHU48200807-201008

main51100-48070iGSU4#200705-200806

sub51100-48071

main51100-48071iGVU48200807-201303

sub51100-48072

main51100-48072iGVU48201304-201308

sub51100-48073

main51100-48073iGVU48201309-201402

sub51100-48074

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-48040iGSU45200705-201008

main51206-48050iMHU48200708-201008

main51206-48070iASU40,GSU40200705-201004

sub51206-48071

main51206-48071iASU40,GSU40201005-201008

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-48031iASU40,GSU4#200705-201008

main51227-48090iMHU48200708-201008

main51227-48100iGVU48201008

51308BRACKET SUB-ASSY, EXHAUST PIPE CLAMP

main51308-48022iGSU40200705-201008

main51308-48030iASU40200811-201008

51440ACOVER ASSY, ENGINE UNDER

main51440-48070iGSU4#200705-201008

sub51440-48071

51441COVER, ENGINE UNDER, NO.1

main51441-48060iGSU4#,MHU48200705-201008

main51441-48110iASU40200811-201008

main51441-48120iGVU48201008

51442COVER, ENGINE UNDER, NO.2

main51442-48020iASU40,GSU4#,MHU48200705-200905

sub51442-48021

main51442-48021iASU40,GSU4#,MHU48200906-201008

main51442-48040iGVU48201008

51451DSCREW, NO.1

main90159-60444iASU40,GSU4#,MHU48200705-201008

51455ASEAL, ENGINE UNDER COVER, NO.1

main51455-48010iASU40,GSU4#,MHU48200705-201008

51456ASEAL, ENGINE UNDER COVER, REAR

main51456-48010iASU40200811-201008

51967BHOOK, TRANSPORT, REAR RH

main51967-48010iASU40,GSU4#,MHU48200705-201008

51968BHOOK, TRANSPORT, REAR LH

main51968-48010iASU40,GSU4#,MHU48200705-201008

5201

52161QPIECE, FRONT BUMPER

main52161-16010iASU40,GSU4#,MHU48200705-201402

sub52161-0K040

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-28020iASU40,GSU4#,MHU48200705-201008

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28020iASU40,GSU4#,MHU48200705-201008

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28010iASU40,GSU4#,MHU48200705-201008

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28010iASU40,GSU4#,MHU48200705-201008

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-28010iASU40,GSU4#,MHU48200705-201008

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-48030iASU40,GSU4#,MHU48200705-201008

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-48040iASU40,GSU4#,MHU48200705-201008

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-33030iASU40,GSU40200705-201008

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-32010iGSU45,MHU48200705-201008

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-33040iASU40,GSU40200705-201008

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33010iASU40,GSU40200705-201008

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-48010iASU40,GSU40200705-201008

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-48010iASU40,GSU40200705-201008

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-33050iASU40,GSU40200705-201008

main52275-48010iGSU45,MHU48200705-201008

0892948020

main08929-48020

5145348010SILENCER, ENGINE UNDER COVER, FRONT

main51453-48010

5145448010CLIP

main51454-48010

9010510518

main90105-10518

9010912078

main90109-12078

9011906699

main90119-06699

9011908766

main90119-08766

9011912359

main90119-12359

9011916010

main90119-16010

9011916011

main90119-16011

9015960590

main90159-60590

9017812014

main90178-12014

9017910221

main90179-10221

9018210004

main90182-10004

44 parts on this diagram · 4 diagrams in section
