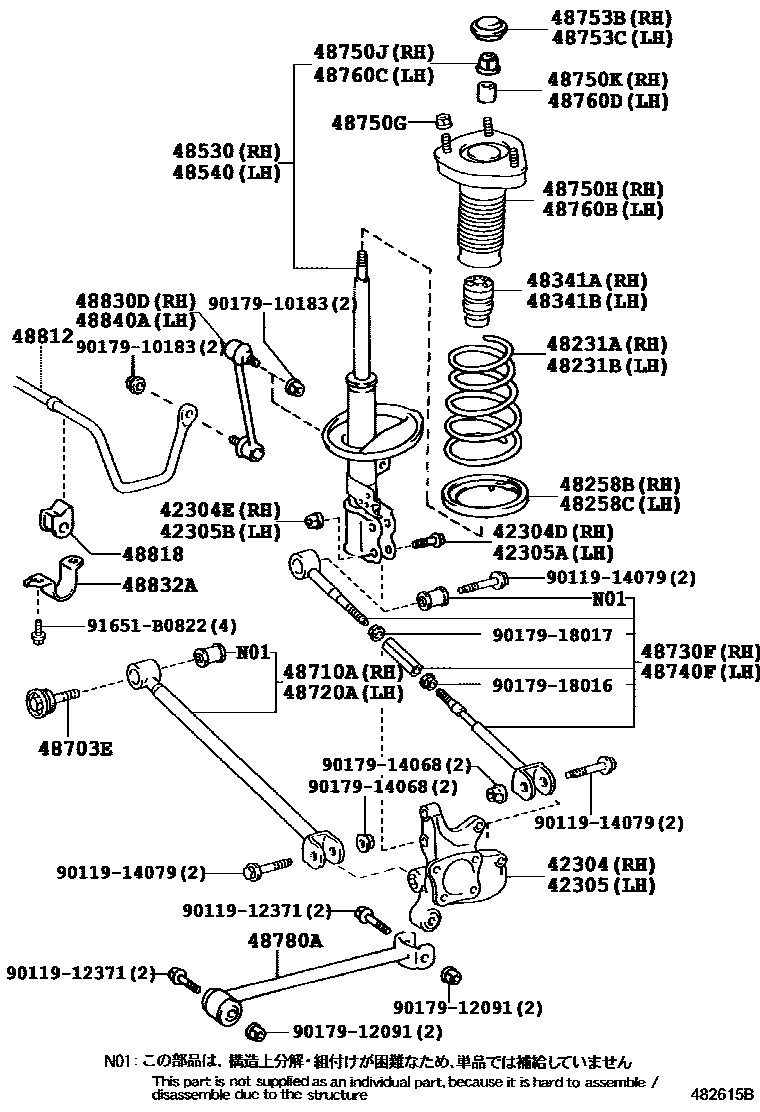

REAR SPRING & SHOCK ABSORBER
42304DBOLT (FOR REAR AXLE CARRIER RH)
42304ENUT (FOR REAR AXLE CARRIER RH)
42305ABOLT (FOR REAR AXLE CARRIER LH)
42305BNUT (FOR REAR AXLE CARRIER LH)
48231ASPRING, COIL, REAR RH
MEXICO SPEC
48231BSPRING, COIL, REAR LH
MEXICO SPEC
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-48380
MARK 48530-48330
MARK 48530-48330,MEXICO SPEC
MARK 48530-48350
MARK 48530-48360
MARK 48530-48370
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48540-48380
MARK 48540-48330,MEXICO SPEC
MARK 48540-48330
MARK 48540-48350
MARK 48540-48360
MARK 48540-48370
48703EBOLT(FOR REAR SUSPENSION ARM)
*14-1.50PX76-36
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48818BUSH, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48840ALINK ASSY, REAR STABILIZER, LH
9011912371
main90119-12371
9011914079
main90119-14079
9017910183
main90179-10183
9017912091
main90179-12091
9017914068
main90179-14068
9017918016
main90179-18016
9017918017
main90179-18017
91651B0822
main91651-B0822
42 parts on this diagram · 2 diagrams in section
