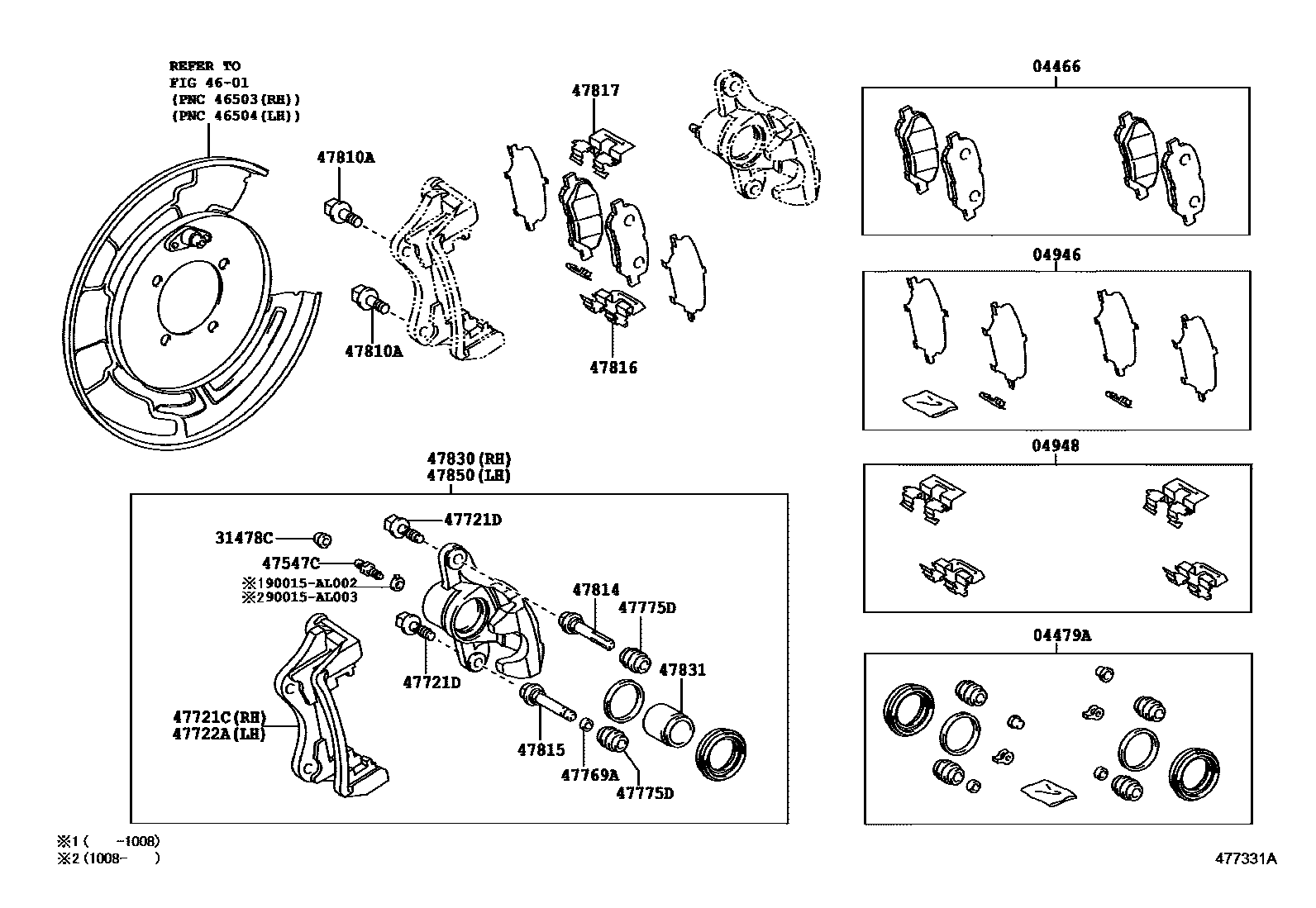

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-48120iASU40,GSU4#,MHU48200705-201402

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-48120iASU40,GSU4#,MHU48200705-201008

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-48090iASU40,GSU4#,MHU48200705-201008

04948FITTING KIT, DISC BRAKE, REAR

main04948-48040iASU40,GSU4#,MHU48200705-201008

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iASU40,GSU4#,MHU48200705-201008

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27040iASU40,GSU4#,MHU48200705-201008

main47847-48100iGVU48201008

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-48090iASU40,GSU4#,MHU48200705-201008

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08346iASU40,GSU4#,MHU48200705-201008

*8-1.00PX21.5-10.5

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-48090iASU40,GSU4#,MHU48200705-201008

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-33020iASU40,GSU4#,MHU48200705-201008

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-48090iASU40,GSU4#,MHU48200705-201008

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iASU40,GSU4#,MHU48200705-201402

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-48090iASU40,GSU4#,MHU48200705-201008

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-48090iASU40,GSU4#,MHU48200705-201008

47816PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47816-48090iASU40,GSU4#,MHU48200705-201008

47817PLATE, PAD SUPPORT. NO.2(FOR REAR DISC BRAKE)

main47817-48090iASU40,GSU4#,MHU48200705-201008

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-48090iASU40,GSU4#,MHU48200705-201008

main47830-48120iGVU48201008

47831PISTON, REAR DISC BRAKE

main47831-48090iASU40,GSU4#,MHU48200705-201008

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-48090iASU40,GSU4#,MHU48200705-201008

main47850-48120iGVU48201008

90015AL002

main90015-AL002

90015AL003

main90015-AL003

22 parts on this diagram · 1 diagram in section
