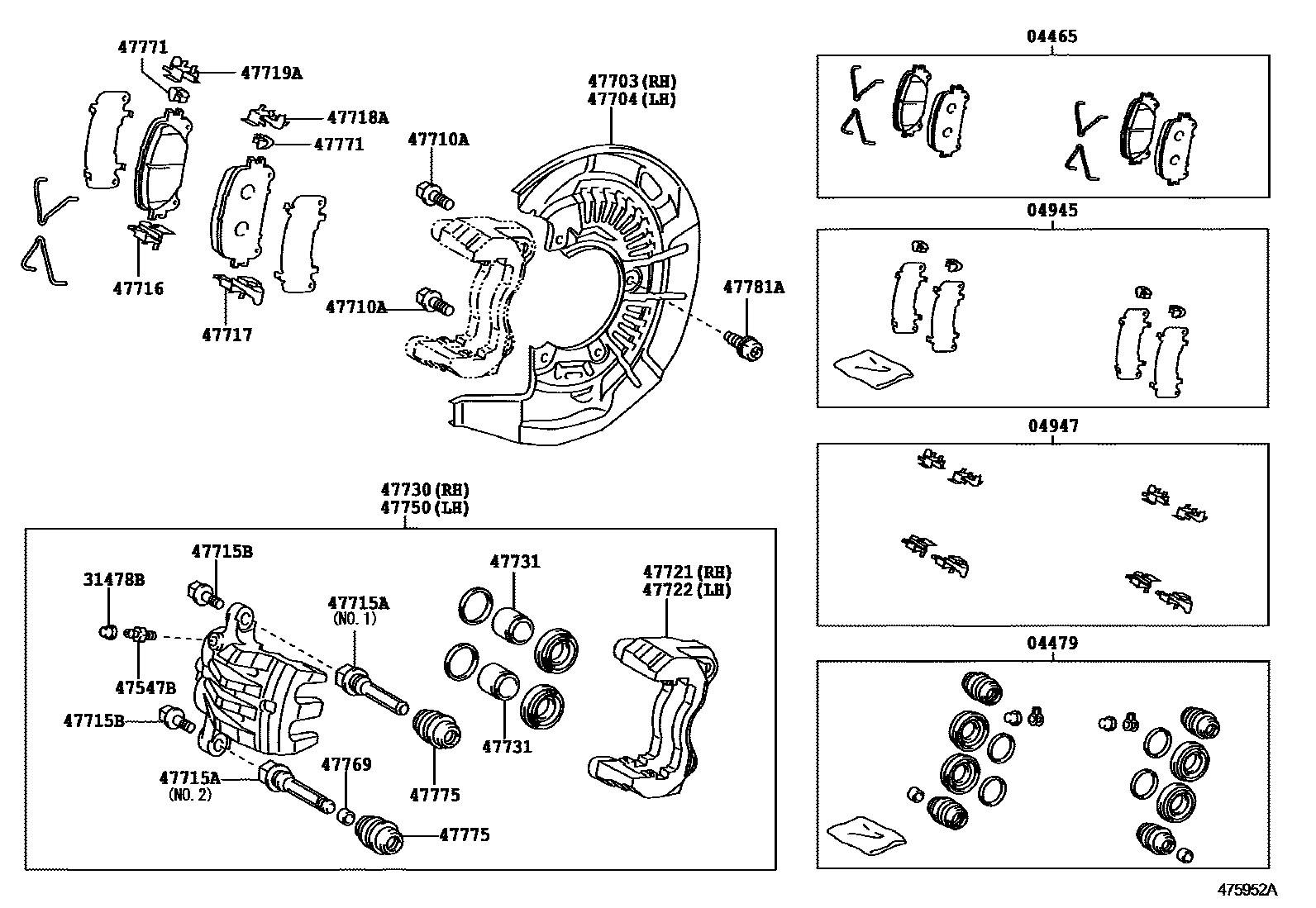

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-48150iASU40,GSU4#,MHU48¥11,000200705-201008

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48150iASU40,GSU4#,MHU48¥2,700200705-201008

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48150iASU40,GSU4#,MHU48¥1,250200705-201008

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iASU40,GSU4#,MHU48¥1,670200705-201008

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iASU40,GSU4#,MHU48¥160200705-201008

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iGVU48¥160200710-201008

main47547-20010iGSU4#,MHU48¥200200705-200710

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-48010iASU40,GSU4#,MHU48¥2,170200705-201402

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-48010iASU40,GSU4#,MHU48¥2,170200705-201402

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iGVU48¥160200705-201402

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iASU40,GSU4#,MHU48¥230200705-201008

NO.2

main47715-48150iASU40,GSU4#,MHU48¥230200705-201008

NO.1

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90015-AA602iASU40,GSU4#,MHU48¥80200705-201008

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-48150iASU40,GSU4#,MHU48¥220200705-201008

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-48150iASU40,GSU4#,MHU48¥220200705-201008

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-48150iASU40,GSU4#,MHU48¥220200705-201008

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-48150iASU40,GSU4#,MHU48¥220200705-201008

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48150iASU40,GSU4#,MHU48¥6,700200705-201008

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-48140iASU40,GSU4#,MHU48¥6,700200705-201008

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48150iASU40,GSU4#,MHU48¥37,400200705-201008

47731PISTON, FRONT DISC BRAKE

main47731-48150iASU40,GSU4#,MHU48¥1,060200705-201008

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48110iASU40,GSU4#,MHU48¥37,400200705-201008

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-48150iASU40,GSU4#,MHU48¥200200705-201008

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48150iASU40,GSU4#,MHU48¥200200705-201008

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-48150iASU40,GSU4#,MHU48¥250200705-201008

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iASU40,GSU4#,MHU48¥90200705-201402

24 parts on this diagram · 1 diagram in section
