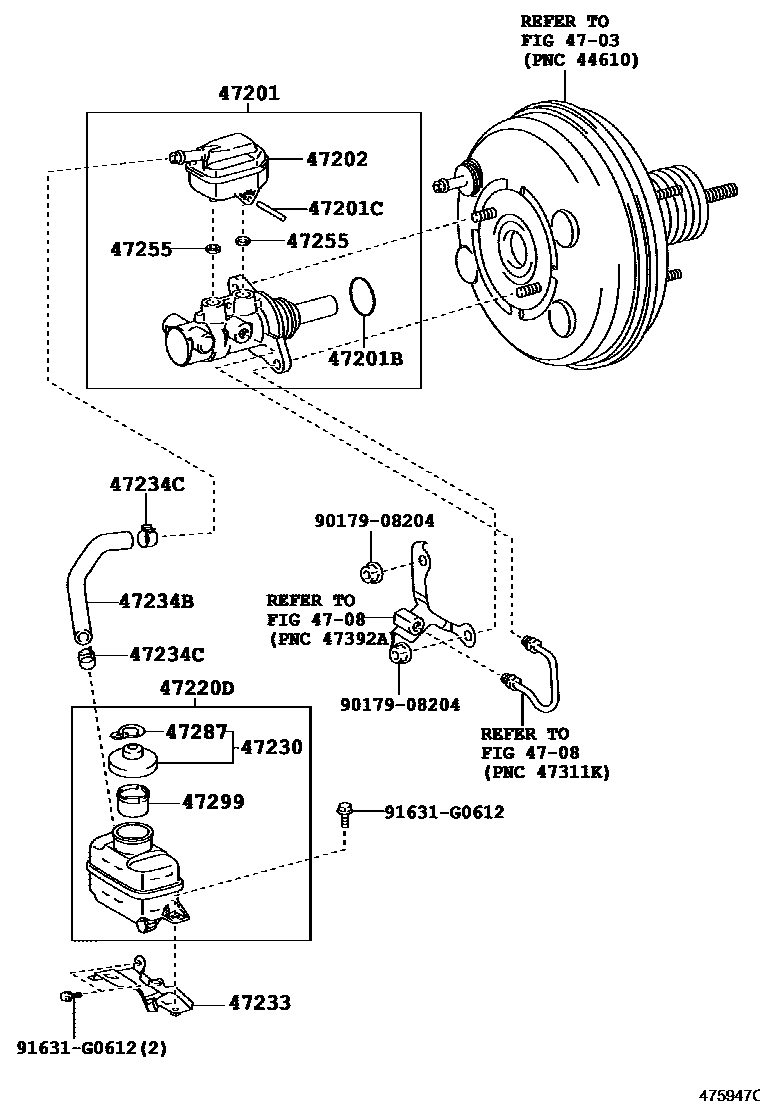

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-48200iASU40,GSU4#200705-201007

sub47201-48201

main47201-48210iMHU48200708-201402

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASU40,GSU4#200705-201008

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iASU40,GSU4#200705-201008

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48200iASU40,GSU4#200705-201007

main47220-48210iMHU48200708-201008

main47220-48220iGVU48201008-201402

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-48190iASU40,GSU4#200705-201007

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iASU40,GSU4#200705-201008

main47230-58010iMHU48200708-201008

sub47230-11010

47233BRACKET, RESERVOIR

main47233-48110iMHU48200708-201008

main47233-48120iASU40,GSU4#200705-201008

main47233-48140iGVU48201008

47234BTUBE, RESERVOIR, NO.1

main47234-48140iMHU48200708-201008

NO.1

main47234-48150iMHU48200708-201008

NO.2

main47234-48160iASU40,GSU4#200705-201008

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main96133-41500iASU40,GSU4#200705-201008

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iMHU48200708-201008

main90029-48001iASU40,GSU4#200705-201008

sub90016-AT001

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iASU40,GSU4#200705-201008

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iASU40,GSU4#200705-201008

main47299-48180iMHU48200708-201008

9017908204

main90179-08204

91631G0612

main91631-G0612

16 parts on this diagram · 3 diagrams in section
