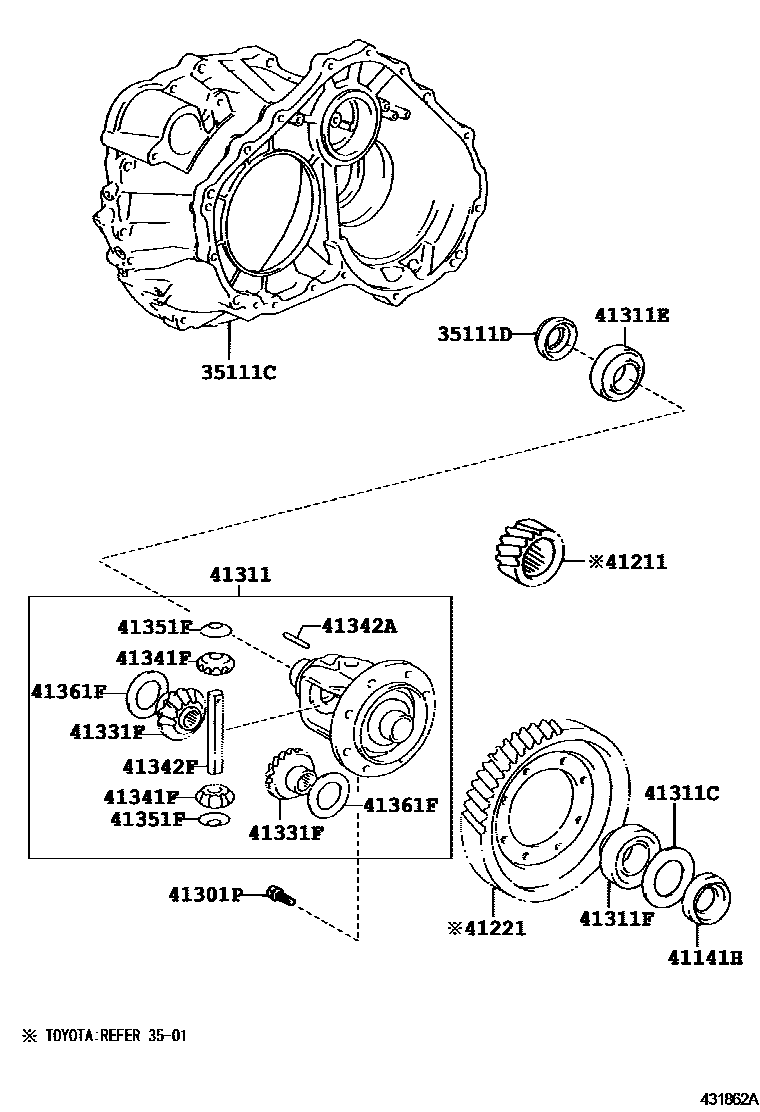

FRONT AXLE HOUSING & DIFFERENTIAL
41141HSEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)
41211PINION, DIFFERENTIAL DRIVE
AISIN AW:REFER 35-01
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
(L)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
(J)
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 0,(L)
T=2.05,MARK 1,(L)
T=2.10,MARK 2,(L)
T=2.15,MARK 3,(L)
T=2.20,MARK 4,(L)
T=2.25,MARK 5,(L)
T=2.30,MARK 6,(L)
T=2.35,MARK 7,(L)
T=2.40,MARK 8,(L)
T=2.45,MARK 9,(L)
T=2.50,MARK A,(L)
T=2.55,MARK B,(L)
T=2.60,MARK C,(L)
T=2.65,MARK D,(L)
T=2.70,MARK E,(L)
T=2.75,MARK F,(L)
T=2.80,MARK G,(L)
T=2.85,MARK H,(L)
T=2.00,MARK 0,(J)
T=2.05,MARK 1,(J)
T=2.10,MARK 2,(J)
T=2.15,MARK 3,(J)
T=2.20,MARK 4,(J)
T=2.25,MARK 5,(J)
T=2.30,MARK 6,(J)
T=2.35,MARK 7,(J)
T=2.40,MARK 8,(J)
T=2.45,MARK 9,(J)
T=2.50,MARK A,(J)
T=2.55,MARK B,(J)
T=2.60,MARK C,(J)
T=2.65,MARK D,(J)
T=2.70,MARK E,(J)
T=2.75,MARK F,(J)
T=2.80,MARK G,(J)
T=2.85,MARK H,(J)
T=2.025,MARK J,AISIN AW:REFER 35-01
T=2.075,MARK K,AISIN AW:REFER 35-01
T=2.125,MARK L,AISIN AW:REFER 35-01
T=2.175,MARK M,AISIN AW:REFER 35-01
T=2.225,MARK N,AISIN AW:REFER 35-01
T=2.275,MARK P,AISIN AW:REFER 35-01
T=2.325,MARK Q,AISIN AW:REFER 35-01
T=2.375,MARK R,AISIN AW:REFER 35-01
T=2.425,MARK S,AISIN AW:REFER 35-01
T=2.475,MARK T,AISIN AW:REFER 35-01
T=2.525,MARK U,AISIN AW:REFER 35-01
T=2.575,MARK V,AISIN AW:REFER 35-01
T=2.625,MARK W,AISIN AW:REFER 35-01
T=2.675,MARK X,AISIN AW:REFER 35-01
T=2.725,MARK Y,AISIN AW:REFER 35-01
T=2.775,MARK AA,AISIN AW:REFER 35-01
T=2.825,MARK AB,AISIN AW:REFER 35-01
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
TOYOTA:REFER 35-01
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
TOYOTA:REFER 35-01
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.625
T=1.725
T=1.825
16 parts on this diagram · 3 diagrams in section
