DISC WHEEL & WHEEL CAP

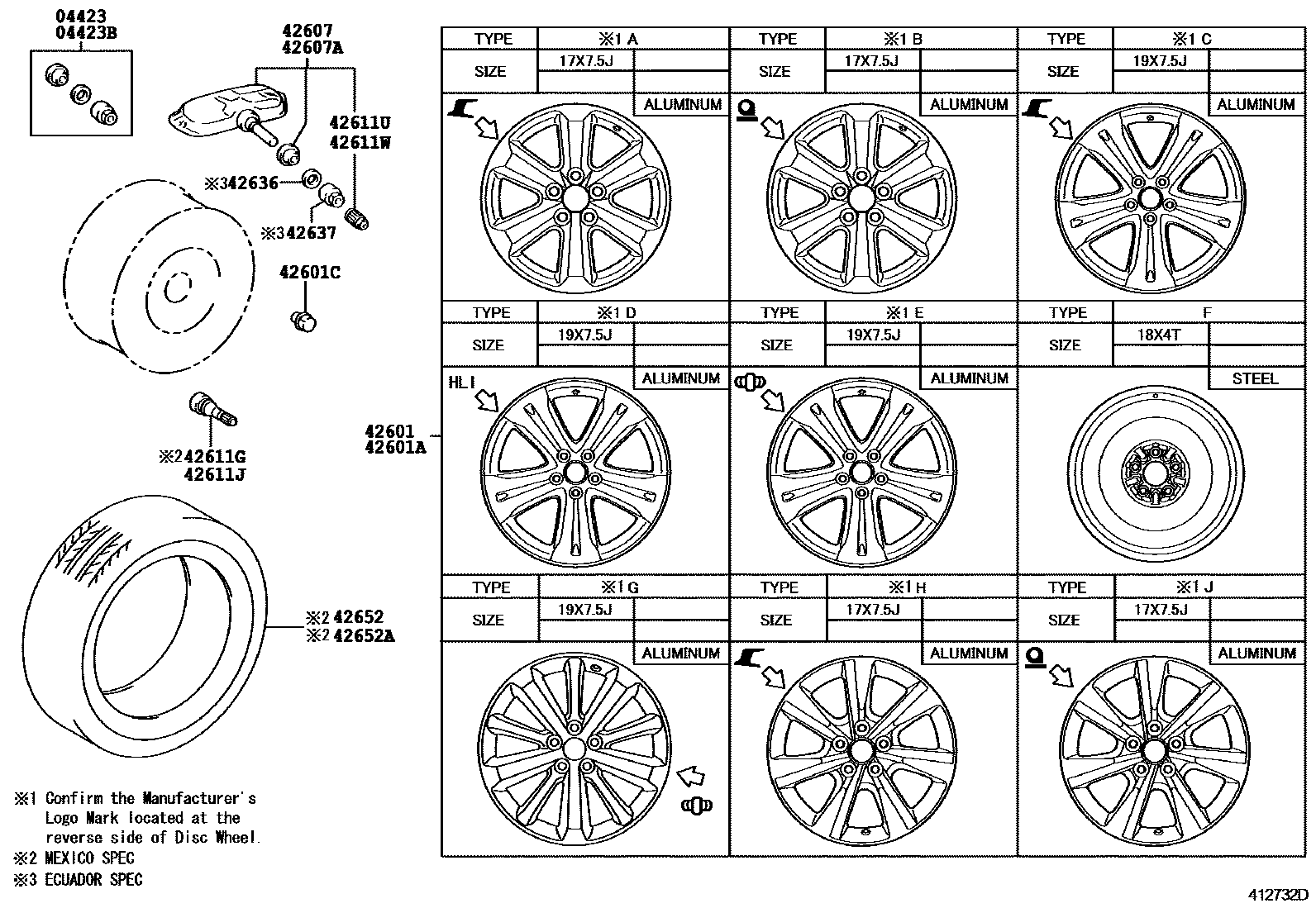

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33030i200705-201008
sub04423-33060
main04423-33030i201107
ECUADOR SPEC
sub04423-33060
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
main04423-33030i200801-201008
SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM
sub04423-33060
main04423-33030i200801-201008
DECONTENT PACKAGE&SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM
sub04423-33060
main04423-33030i200801-201008
SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM
sub04423-33060
main04423-33030i200705-200801
sub04423-33060
main04423-33030i201107
ECUADOR SPEC
sub04423-33060
42601WHEEL, DISC
main42611-48430i201008-201009
19X7.5J, #,TIRE & DISC WHEEL-P245/55R19 103S 7.5J ALUMI(FOR HYBRID)&SPARE TIRE-TEMPER TIRE(165/90D18),TYPE G:REFER ILLUST.
main42611-48430i201107
19X7.5J, #,ECUADOR SPEC&TIRE & DISC WHEEL-P245/55R19 103S 7.5J ALUMI(FOR HYBRID),TYPE G:REFER ILLUST.
main42611-48430i200708-201008
19X7.5J, #,TYPE G:REFER ILLUST.
main42611-48430i201008-201009
19X7.5J, #,TIRE & DISC WHEEL-P245/55R19 103S 7.5J ALUMI(FOR HYBRID)&SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM,TYPE G:REFER ILLUST.
main42611-48430i201009
19X7.5J, #,TIRE & DISC WHEEL-P245/55R19 103S 7.5J ALUMI(FOR HYBRID),TYPE G:REFER ILLUST.
main42611-48460i201008
17X7.5J, #,TYPE H:REFER ILLUST.
main42611-48470i201008
17X7.5J, #,TYPE J:REFER ILLUST.
sub42611-48460
main42611-48490i200705-201007
17X7.5J, #,TYPE A:REFER ILLUST.
main42611-48490i200708-200901
17X7.5J, #,DECONTENT PACKAGE&SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM,TYPE A:REFER ILLUST.
main42611-48490i200708-201008
17X7.5J, #,DECONTENT PACKAGE,TYPE A:REFER ILLUST.
main42611-48500i200705-201007
17X7.5J, #,TYPE B:REFER ILLUST.
sub42611-48490
main42611-48500i200708-200901
17X7.5J, #,DECONTENT PACKAGE&SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM,TYPE B:REFER ILLUST.
sub42611-48490
main42611-48500i200708-201008
17X7.5J, #,DECONTENT PACKAGE,TYPE B:REFER ILLUST.
sub42611-48490
main42611-48510i200705-201007
19X7.5J, #,TYPE C:REFER ILLUST.
main42611-48520i200705-200907
19X7.5J, #,TYPE D:REFER ILLUST.
sub42611-48510
main42611-48530i200705-201007
19X7.5J, #,TYPE E:REFER ILLUST.
main42611-48540i200705-200907
19X7.5J, #,TYPE D:REFER ILLUST.
sub42611-48530
42601AWHEEL, DISC (FOR SPARE)
main42611-48430i200708-201008
19X7.5J, #,SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM,TYPE G:REFER ILLUST.
main42611-48430i201008
19X7.5J, #,TYPE G:REFER ILLUST.
main42611-48430i201008-201009
19X7.5J, #,TIRE & DISC WHEEL-P245/55R19 103S 7.5J ALUMI(FOR HYBRID)&SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM,TYPE G:REFER ILLUST.
main42611-48430i201009
19X7.5J, #,TIRE & DISC WHEEL-P245/55R19 103S 7.5J ALUMI(FOR HYBRID),TYPE G:REFER ILLUST.
main42611-48430i201107
19X7.5J, #,ECUADOR SPEC&TIRE & DISC WHEEL-P245/55R19 103S 7.5J ALUMI(FOR HYBRID),TYPE G:REFER ILLUST.
main42611-48460i201008
17X7.5J, #,TYPE H:REFER ILLUST.
main42611-48470i201008
17X7.5J, #,TYPE J:REFER ILLUST.
sub42611-48460
main42611-48490i200705-201008
17X7.5J, #,SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM,TYPE A:REFER ILLUST.
main42611-48490i200705-201008
17X7.5J, #,MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM,TYPE A:REFER ILLUST.
main42611-48490i200708-201008
17X7.5J, #,DECONTENT PACKAGE&SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM,TYPE A:REFER ILLUST.
main42611-48500i200705-201008
17X7.5J, #,SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM,TYPE B:REFER ILLUST.
sub42611-48490
main42611-48500i200708-201008
17X7.5J, #,DECONTENT PACKAGE&SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM,TYPE B:REFER ILLUST.
sub42611-48490
main42611-48500i200705-201008
17X7.5J, #,MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM,TYPE B:REFER ILLUST.
sub42611-48490
main42611-48510i200705-201008
19X7.5J, #,MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM,TYPE C:REFER ILLUST.
main42611-48510i200705-201008
19X7.5J, #,SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM,TYPE C:REFER ILLUST.
main42611-48520i200705-200907
19X7.5J, #,MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM,TYPE D:REFER ILLUST.
sub42611-48510
main42611-48520i200705-200907
19X7.5J, #,SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM,TYPE D:REFER ILLUST.
sub42611-48510
main42611-48530i200705-201008
19X7.5J, #,MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM,TYPE E:REFER ILLUST.
main42611-48530i200705-201008
19X7.5J, #,SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM,TYPE E:REFER ILLUST.
main42611-48540i200705-200907
19X7.5J, #,MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM,TYPE D:REFER ILLUST.
sub42611-48530
main42611-48540i200705-200907
19X7.5J, #,SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM,TYPE D:REFER ILLUST.
sub42611-48530
main42611-48550i200705-200810
18X4T,TYPE F:REFER ILLUST.
sub42611-48750
main42611-48750i201008-201009
18X4T,SPARE TIRE-TEMPER TIRE(165/90D18),TYPE F:REFER ILLUST.
sub42611-48751
main42611-48750i201008-201009
18X4T,TIRE & DISC WHEEL-P245/55R19 103S 7.5J ALUMI(FOR HYBRID)&SPARE TIRE-TEMPER TIRE(165/90D18),TYPE F:REFER ILLUST.
sub42611-48751
main42611-48750i200811-201008
18X4T,TYPE F:REFER ILLUST.
sub42611-48751
42601CNUT, HUB (FOR AXLE)
main90942-01033i200705-201008
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-33011i200705-201008
sub42607-33012
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-33011i200705-201008
SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM
sub42607-33012
main42607-33011i200705-201008
SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM
sub42607-33012
main42607-33011i200708-201008
DECONTENT PACKAGE&SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM
sub42607-33012
main42607-33011i201008
sub42607-33012
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009i200705-201008
MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM
main90942-05009i200705-201008
MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i201008-201009
TIRE & DISC WHEEL-P245/55R19 103S 7.5J ALUMI(FOR HYBRID)&SPARE TIRE-TEMPER TIRE(165/90D18)
main90942-05009i201008-201009
SPARE TIRE-TEMPER TIRE(165/90D18)
main90942-05009i200705-201008
42611UCAP, TIRE VALVE
main90942-05039i200705-201008
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05039i200705-201008
SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM
main90942-05039i200705-201008
SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM
main90942-05039i200708-201008
DECONTENT PACKAGE&SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM
main90942-05039i201008
42636WASHER, TIRE VALVE
main42636-33010i201107
ECUADOR SPEC
42637NUT, YIRE TUBE
main42637-33010i201107
ECUADOR SPEC
42652TIRE
main42652-48570i200705-201008
245/65R17 *D/L,MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM
main42652-48600i200705-201008
245/55R19 *B/S,MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM
42652ATIRE (FOR SPARE)
main42652-48570i200705-201008
245/65R17 *D/L,MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/65R17),ALUMINUM
main42652-48600i200705-201008
245/55R19 *B/S,MEXICO SPEC&SPARE TIRE-GRAND TIRE(245/55R19),ALUMINUM

15 parts on this diagram · 3 diagrams in section
