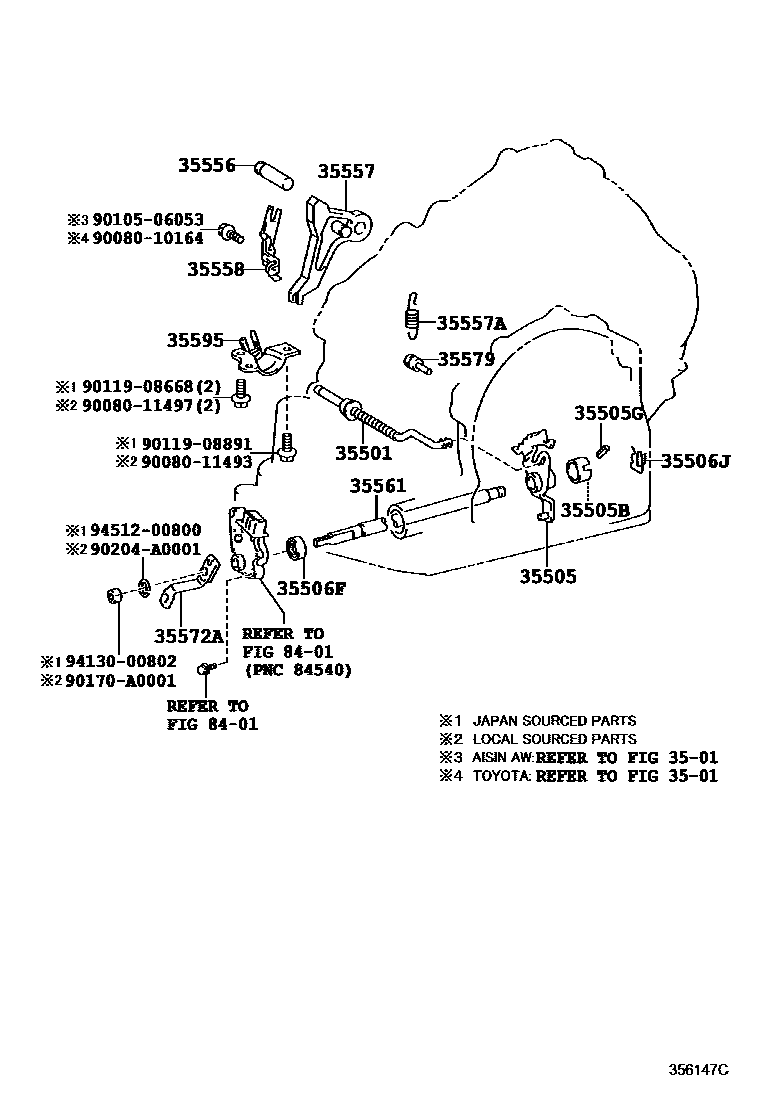

THROTTLE LINK & VALVE LEVER (ATM)
3501
35505LEVER SUB-ASSY, MANUAL VALVE
35505BSPACER (FOR MANUAL VALVE LEVER)
35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
35506SHAFT SUB-ASSY, MANUAL VALVE LEVER
sub35506-33011
35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
35556SHAFT, PARKING LOCK PAWL
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35557ASPRING, TORSION (FOR PARKING LOCK PAWL)
(L)
(J)
35558CLAMP, PAWL SHAFT
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35561SHAFT, MANUAL VALVE LEVER
35572ALEVER, TRANSMISSION CONTROL SHAFT
(L)TOYOTA:REFER35-01
(J)TOYOTA:REFER35-01
35579PIN, PARKING LOCK PAWL
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35595BRACKET, PARKING LOCK PAWL
8401
9008010164
main90080-10164
9008011493
main90080-11493
9008011497
main90080-11497
9010506053
main90105-06053
9011908668
main90119-08668
9011908891
main90119-08891
90170A0001
main90170-A0001
90204A0001
main90204-A0001
9413000802
main94130-00802
9451200800
main94512-00800
27 parts on this diagram · 2 diagrams in section
