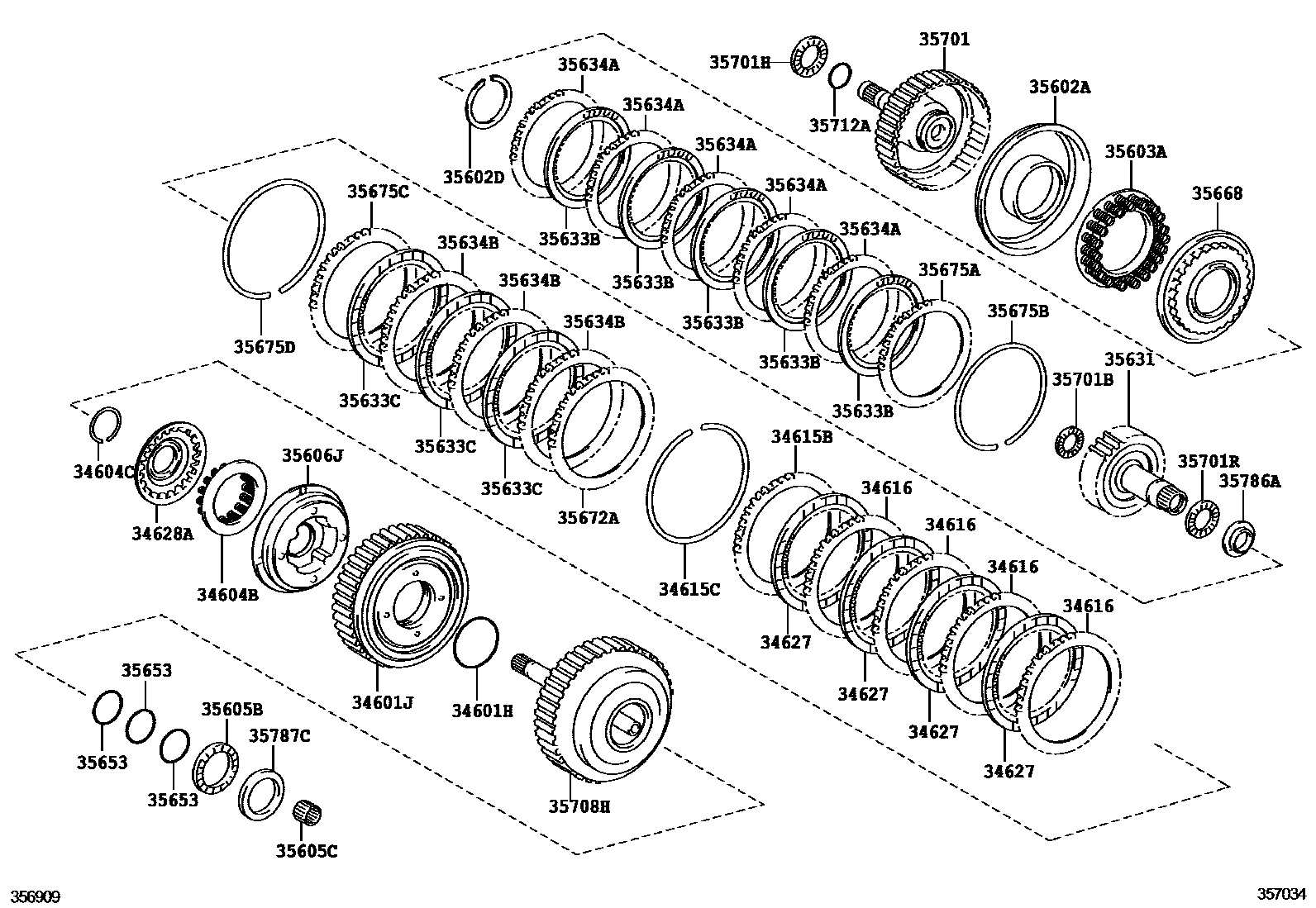

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
34601HRING, O (FOR OVERDRIVE DIRECT CLUCH)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
34601JDRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
34604BSPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
34604CSPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
34615BFLANGE, OVERDRIVE CLUTCH
T=2.5,TMC:SEE 35-01
T=2.6,TMC:SEE 35-01
T=2.7,TMC:SEE 35-01
T=2.8,TMC:SEE 35-01
T=2.9,TMC:SEE 35-01
T=3.0,TMC:SEE 35-01
T=3.1,TMC:SEE 35-01
T=2.5,AISIN:SEE35-01
T=2.6,AISIN:SEE35-01
T=2.7,AISIN:SEE35-01
T=2.8,AISIN:SEE35-01
T=2.9,AISIN:SEE35-01
T=3.0,AISIN:SEE35-01
T=3.1,AISIN:SEE35-01
34615CRING, HOLE SNAP(FOR OVERDRIVE CLUCH)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
34616PLATE, OVERDRIVE CLUTCH
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
34627DISC, OVERDRIVE DIRECT CLUTCH
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
34628ABALANCER, OVERDRIVE DIRECT CLUTCH
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35602APISTON SUB-ASSY, FORWARD CLUTCH
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
(L)
(J)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35605BBEARING, THRUST NEEDLE ROLLER
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35605CBEARING, NEEDLE ROLLER
(L)
(J)
35606JPISTON, OVERDRIVE DIRECT CLUTCH
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
(L)
(J)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
(L)
(J)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8,TOYOTA:REFER 35-01
T=1.8,AISIN AW:REFER 35-01
35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
T=1.8,(L)
T=1.8,(J)
35653RING, REAR CLUTCH OIL SEAL, OUTER
35668BALANCER, CLUTCH, NO.1
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35675AFLANGE, FORWARD CLUTCH
T=3.00,(L)
T=3.15,(L)
T=3.30,(L)
T=3.45,(L)
T=3.60,(L)
T=3.00,(J)
T=3.15,(J)
T=3.30,(J)
T=3.45,(J)
T=3.60,(J)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
(L)
(J)
35675CFLANGE, DIRECT CLUTCH
T=3.0,(L)
T=3.1,(L)
T=3.2,(L)
T=3.3,(L)
T=3.4,(L)
T=3.5,(L)
T=3.6,(L)
T=3.0,(J)
T=3.1,(J)
T=3.2,(J)
T=3.3,(J)
T=3.4,(J)
T=3.5,(J)
T=3.6,(J)
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
(L)
(J)
35701SHAFT SUB-ASSY, INPUT
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
(L)
(J)
35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
OD=52.05,(L)
OD=52.2,(J)
35701RBEARING, THRUST NEEDLE ROLLER
(L)
TOYOTA:REFER 35-01
(J)
35708HSHAFT SUB-ASSY, INTERMEDIATE
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
35712ARING, INPUT SHAFT OIL SEAL
35786ARACE, THRUST BEARING, NO.1
(L)
(J)
35787CRACE, THRUST BEARING, NO.2
35 parts on this diagram · 2 diagrams in section
