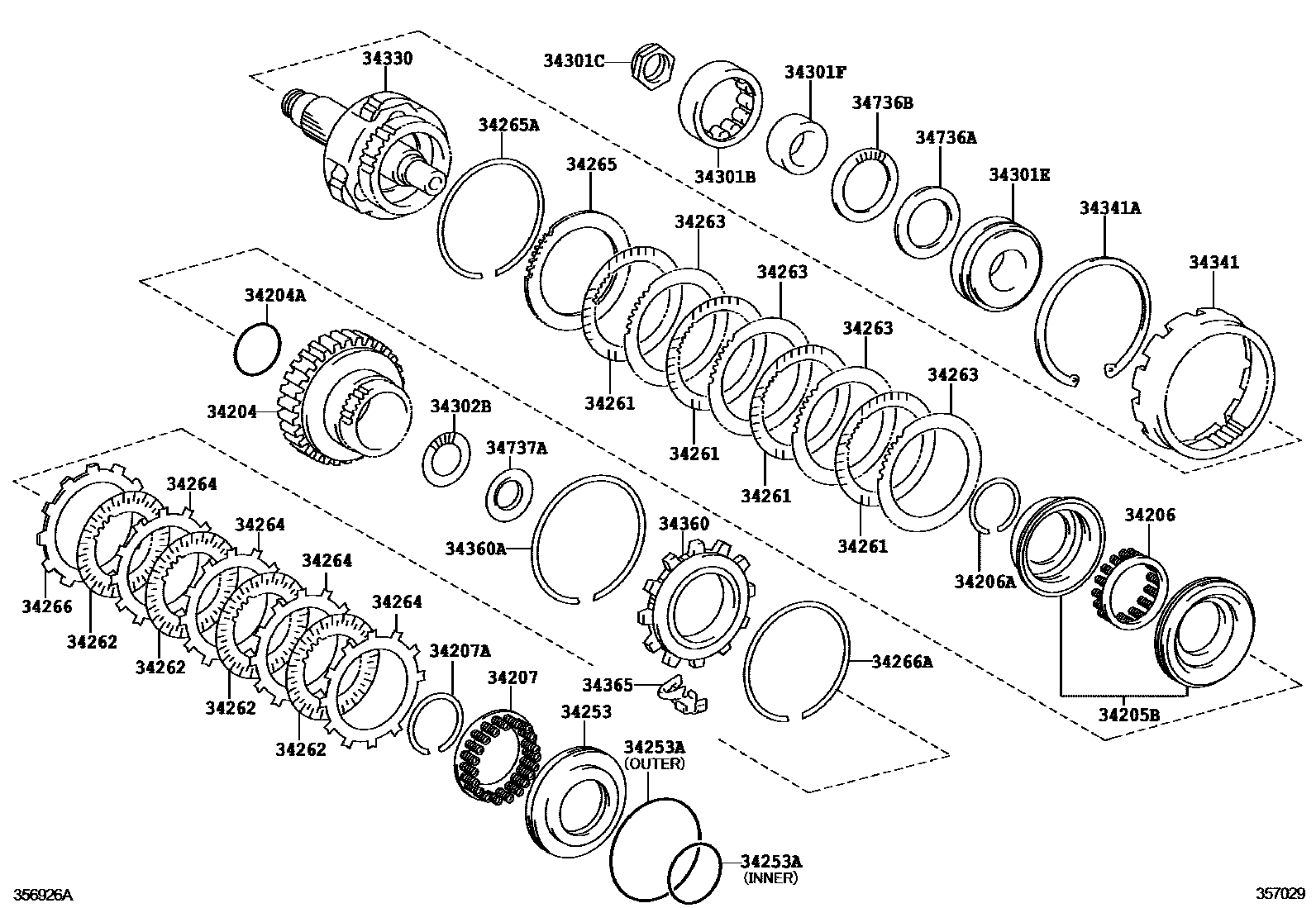

OVERDRIVE GEAR (ATM)
34204DRUM SUB-ASSY, UNDERDRIVE CLUTCH
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
34204ARING, O (FOR UNDERDRIVE CLUTCH DRUM)
(L)
(J)
34205BPISTON SET, UNDERDRIVE CLUTCH
TOYOTA:REFER 35-01
34206SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN
(L)
(J)
34206ARING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING)
(L)
(J)
34207SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN
(L)
(J)
34207ARING, SNAP (FOR UNDERDRIVE BRAKE RETURN SPRING)
(L)
(J)
34253PISTON, UNDERDRIVE BRAKE
AISIN AW:REFER 35-01
34253ARING, O (FOR UNDERDRIVE BRAKE PISTON)
OUTER,TMC:SEE 35-01
(J),INNER
OUTER,AISIN:SEE35-01
(L),INNER
34261DISC, UNDERDRIVE CLUTCH, NO.1
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
34262DISC, UNDERDRIVE CLUTCH, NO.2
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
34263PLATE, UNDERDRIVE CLUTCH, NO.1
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
34264PLATE, UNDERDRIVE CLUTCH, NO.2
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
34265FLANGE, UNDERDRIVE CLUTCH, NO.1
T=3.0 MARK 1,(L)
T=3.1 MARK 4,TOYOTA:REFER 35-01
T=3.2 MARK 2,(L)
T=3.3 MARK 5,TOYOTA:REFER 35-01
T=3.4 MARK 3,(L)
T=3.0 MARK 1,(J)
T=3.2 MARK 2,(J)
T=3.4 MARK 3,(J)
T=3.6 MARK 6,AISIN AW:REFER 35-01
T=2.8 MARK 0,AISIN AW:REFER 35-01
T=2.9 MARK 7,AISIN AW:REFER 35-01
T=3.5 MARK 8,AISIN AW:REFER 35-01
T=3.1 MARK 4,AISIN AW:REFER 35-01
T=3.3 MARK 5,AISIN AW:REFER 35-01
34265ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1)
(L)
(J)
34266FLANGE, UNDERDRIVE CLUTCH, NO.2
(L),T=3.0 MARK 1
(L),T=3.2 MARK 2
(L),T=3.4 MARK 3
T=3.6,MARK 4,*229
T=2.8,MARK 0,*229
(J),T=3.0
(J),T=3.2
(J),T=3.4
34266ARING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2)
(L)
(J)
34301BBEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE)
(L)
(J)
34301EBEARING, TAPERED ROLLER (FOR UNDERDRIVE)
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
34301FRACE, CYLINDRICAL ROLLER BEARING, INNER
(J)
34302BBEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEAR)
(L)
(J)
34341ARING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)
(J)
(L)
34360CLUTCH ASSY, UNDERDRIVE 1 WAY
TOYOTA:REFER 35-01
AISIN AW:REFER 35-01
34360ARING, SHAFT SNAP (FOR UNDERDRIVE 1 WAY CLUTCH)
(L)
(J)
34365RETAINER, OUTER RACE
34736ARACE, THRUST BEARING UNDERDRIVE, NO.2
T=3.5
T=3.8
34736BBEARING, THRUST NEEDLE ROLLER
34737ARACE, THRUST BEARING UNDERDRIVE, NO.3
(L)
(J)
31 parts on this diagram · 2 diagrams in section
