TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

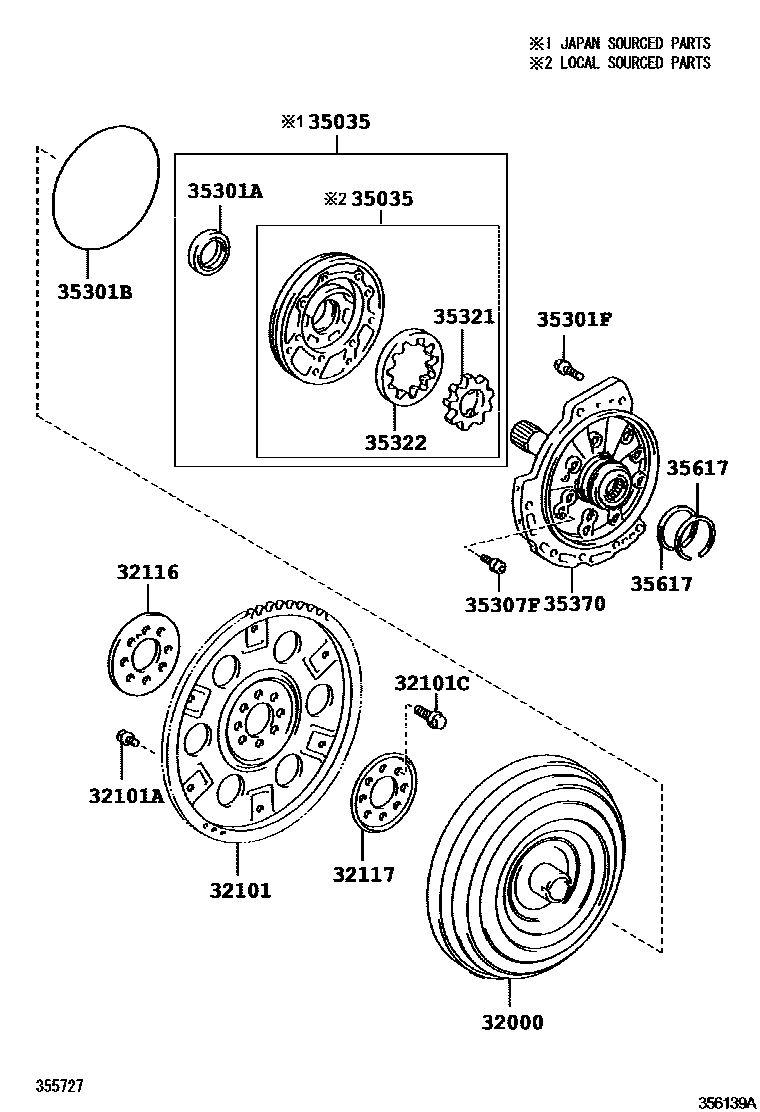

Parts diagram
32000CONVERTER ASSY, TORQUE
main32000-07010i200801-201007
(L)
main32000-42060i200705-200811
main32000-42060i200811-201007
(J)
main32000-73010i200811-201007
sub32000-73011
32101GEAR SUB-ASSY, DRIVE PLATE & RING
main32101-48010i200705
main32101-73010i200811
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
main90109-09001i200705
*9-1.25PX12.4-7.3,BLACK
main90119-09025i200705
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
main90105-10048i200705-201007
*10-1.25PX18-13
main90105-10048i200707-201003
*10-1.25PX18-13,(J)
main90105-12384i200811-201003
*12-1.25PX21-15,(J)
main90105-12384i201003-201007
*12-1.25PX21-15
main90105-A0022i200707-201003
*10-1.25PX18-13,(L)
sub90105-10048
main90105-A0059i200811-201003
*12-1.25PX21-15,(L)
sub90105-12384
32116SPACER, DRIVE PLATE, FRONT
main32116-20050i200811
main32116-32020i200705
32117SPACER, DRIVE PLATE, REAR
main32117-20060i200811
main32117-32020i200705
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
main35035-08010i200705
(L)
main35035-33020i200705
(J)
sub35035-12080
main35035-73010i200811-200902
MARK 35301-73010
main35035-73011i200902
MARK 35301-73011
sub35035-73012
35301ASEAL, OIL (FOR FRONT OIL PUMP)
main90080-31068i200705
(L)
main90311-38083i200705
(J)
main90311-43010i200811
35301BRING, O (FOR FRONT OIL PUMP BODY)
main90080-30078i200801
TOYOTA:REFER 35-01
main90301-99099i200705
AISIN AW:REFER 35-01
main90301-99158i200811
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90080-10236i200801
*8-1.25PX28-28,TOYOTA:REFER 35-01
main90105-08198i200705
*8-1.25PX28-28,AISIN AW:REFER 35-01
main91551-80835i200811
*8-1.25PX35-22
35307FBOLT (FOR STATOR SHAFT)
main90080-14044i200705
(L)
main90148-60027i200705
(J)
main90148-60067i200811
NO.1
main90148-60068i200811
NO.2
35321GEAR, FRONT OIL PUMP DRIVE
main35321-08010i200705-201008
T=11.715,MARK A,(L)
main35321-08020i200705-201008
T=11.715,MARK B,(L)
main35321-08030i200705-201008
T=11.715,MARK C,(L)
main35321-08040i200705-201008
T=11.715,MARK D,(L)
main35321-08050i200705-201008
T=11.715,MARK E,(L)
main35321-33060i200705-201008
T=11.715,MARK A,(J)
main35321-33070i200705-201008
T=11.715,MARK B,(J)
main35321-33080i200705-201008
T=11.715,MARK C,(J)
main35321-33090i200705-201008
T=11.715,MARK D,(J)
main35321-33100i200705-201008
T=11.715,MARK E,(J)
main35321-33110i200811-201008
T=11.567,MARK 1
sub35321-33111
main35321-33120i200811-201008
T=11.567,MARK 2
sub35321-33121
main35321-33130i200811-201008
T=11.567,MARK 3
sub35321-33131
main35321-33140i200811-201008
T=11.567,MARK 4
sub35321-33141
main35321-33150i200811-201008
T=11.567,MARK 5
sub35321-33151
35322GEAR, FRONT OIL PUMP DRIVEN
main35322-08010i200705
T=11.715,MARK A,(L)
main35322-08020i200705
T=11.715,MARK B,(L)
main35322-08030i200705
T=11.715,MARK C,(L)
main35322-08040i200705
T=11.715,MARK D,(L)
main35322-08050i200705
T=11.715,MARK E,(L)
main35322-33060i200705
T=11.715,MARK A,(J)
main35322-33070i200705
T=11.715,MARK B,(J)
main35322-33080i200705
T=11.715,MARK C,(J)
main35322-33090i200705
T=11.715,MARK D,(J)
main35322-33100i200705
T=11.715,MARK E,(J)
main35322-33110i200811
T=11.567,MARK 1
main35322-33120i200811
T=11.567,MARK 2
main35322-33130i200811
T=11.567,MARK 3
main35322-33140i200811
T=11.567,MARK 4
main35322-33150i200811
T=11.567,MARK 5
35370SHAFT ASSY, STATOR
main35370-06010i200705
(L)
main35370-28010i200705
(J)
sub35370-12110
main35370-73010i200811-200902
main35370-73011i200902
sub35370-73012
35617RING, CLUTCH DRUM OIL SEAL
main35613-21010i200705

15 parts on this diagram · 2 diagrams in section
