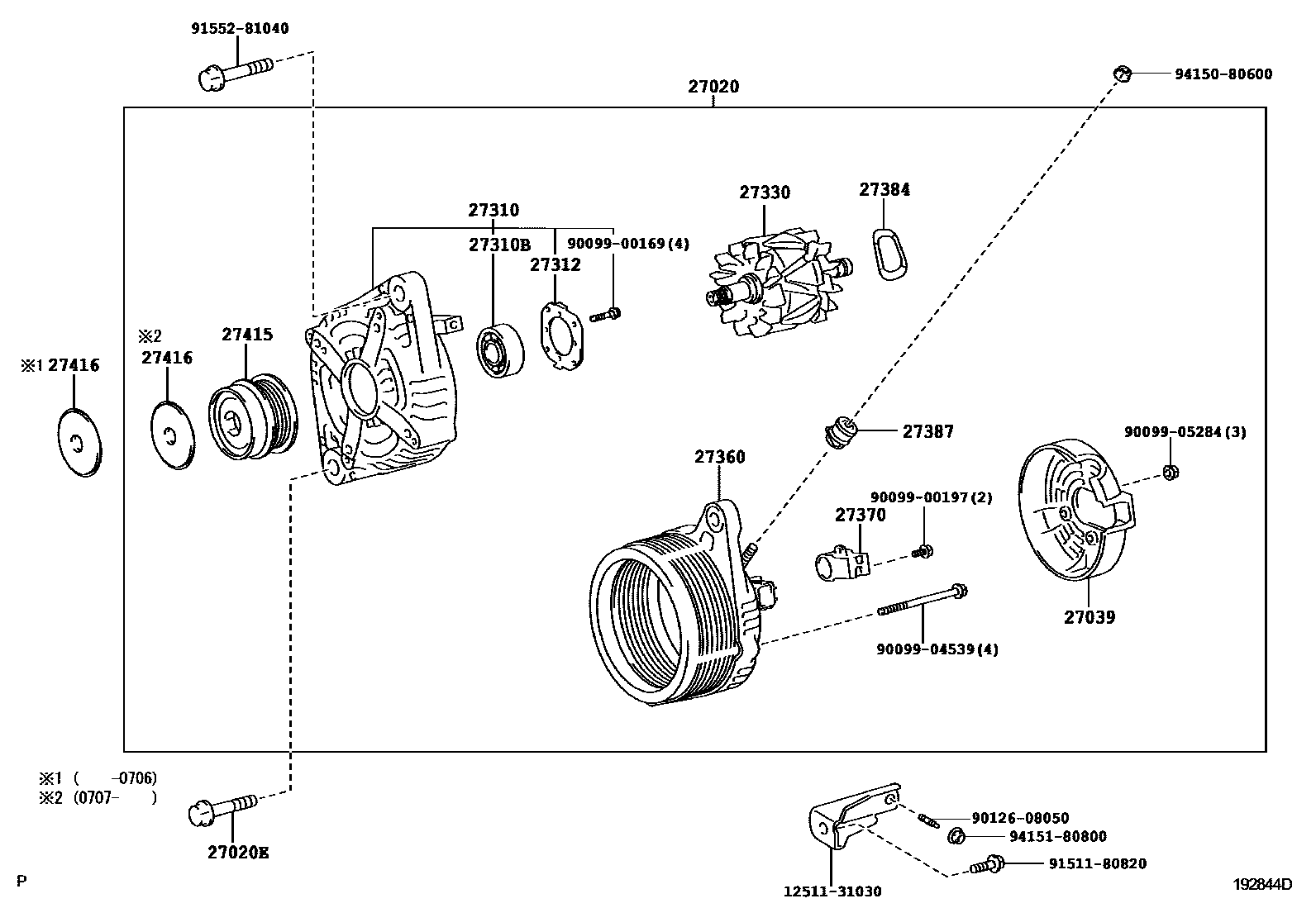

ALTERNATOR
27020ALTERNATOR ASSY
12V 100A
12V 130A,WINDOSHIELD DEICER-WITH&FOG LAMP-WITH
sub27060-31111
12V 130A,WINDOSHIELD DEICER-WITH&FOG LAMP-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
sub27060-31111
12V 130A,WINDOSHIELD DEICER-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
sub27060-31111
12V 130A,FOG LAMP-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
sub27060-31111
12V 130A,WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
sub27060-31111
12V 130A,WINDOSHIELD DEICER-WITH
sub27060-31112
12V 130A,WINDOSHIELD DEICER-WITH&FOG LAMP-WITH
sub27060-31112
12V 130A,WINDOSHIELD DEICER-WITH&FOG LAMP-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
sub27060-31112
12V 130A,WINDOSHIELD DEICER-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
sub27060-31112
12V 130A,FOG LAMP-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
sub27060-31112
12V 130A,WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
sub27060-31112
12V 130A,WINDOSHIELD DEICER-WITH
12V 130A
12V 130A,WINDOSHIELD DEICER-WITH&FOG LAMP-WITH
12V 130A,WINDOSHIELD DEICER-WITH&FOG LAMP-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
12V 130A,WINDOSHIELD DEICER-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
12V 130A,FOG LAMP-WITH
12V 130A,FOG LAMP-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
12V 130A,WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
12V 100A
27020EBOLT(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
FOG LAMP-WITH
FOG LAMP-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
WINDOSHIELD DEICER-WITH
WINDOSHIELD DEICER-WITH&FOG LAMP-WITH
WINDOSHIELD DEICER-WITH&FOG LAMP-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFFSWITCH)
WINDOSHIELD DEICER-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
27360COIL ASSY, ALTERNATOR
WINDOSHIELD DEICER-WITH&FOG LAMP-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFFSWITCH)
WINDOSHIELD DEICER-WITH&FOG LAMP-WITH
WINDOSHIELD DEICER-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
FOG LAMP-WITH
FOG LAMP-WITH&WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
WITH(DAYTIME RUNNING LIGHT SYSTEM)-WITH(OFF SWITCH)
WINDOSHIELD DEICER-WITH
sub27360-36091
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387INSULATOR, TERMINAL
27416CAP, ALTERNATOR PULLEY
1251131030BRACKET, ALTERNATOR, NO.1
main12511-31030
9009900169
main90099-00169
9009900197
main90099-00197
9009904539
main90099-04539
9009905284
main90099-05284
9012608050
main90126-08050
9151180820
main91511-80820
9155281040
main91552-81040
9415080600
main94150-80600
9415180800
main94151-80800
23 parts on this diagram · 2 diagrams in section
