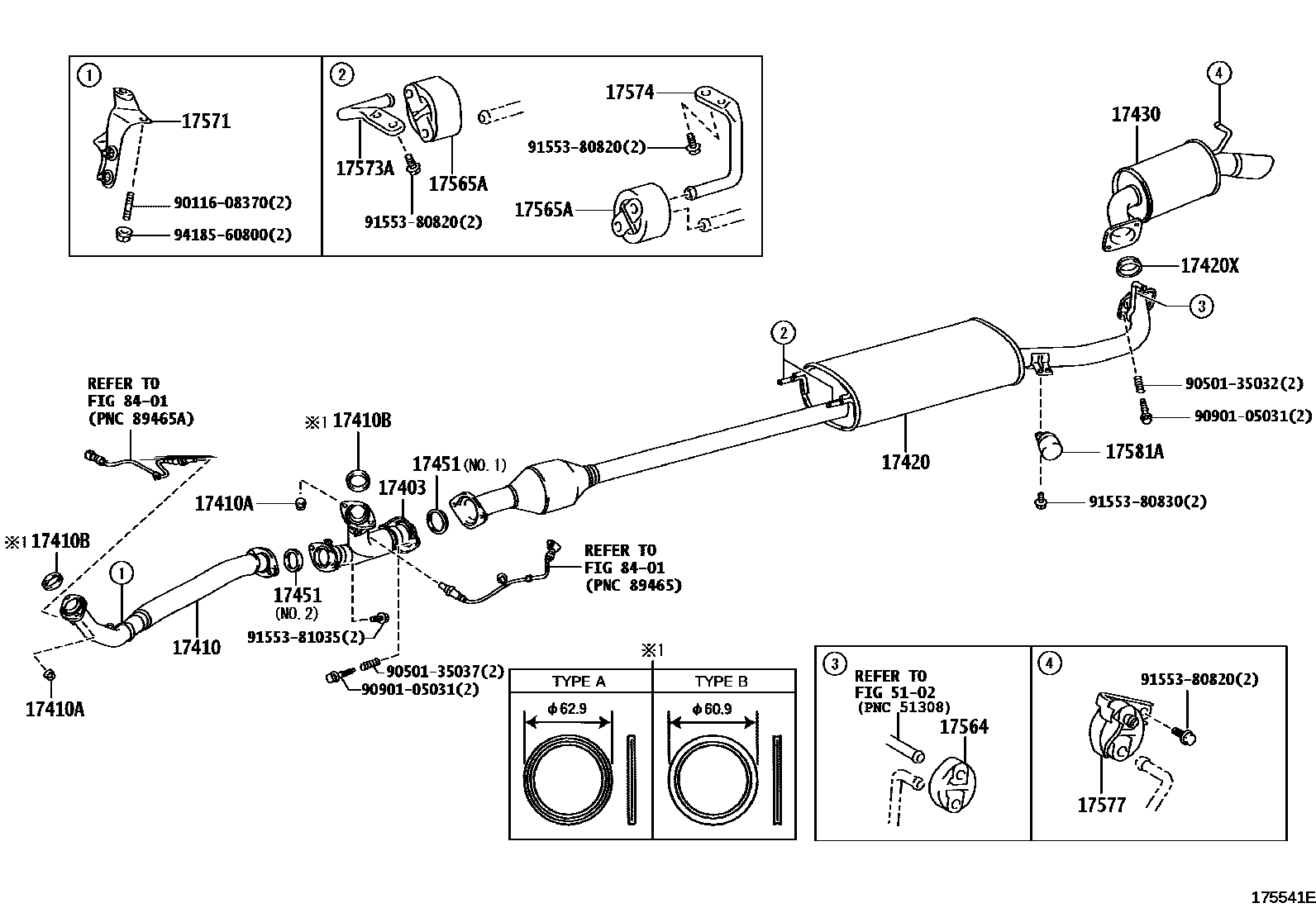

EXHAUST PIPE
17403PIPE SUB-ASSY, EXHAUST, FRONT NO.3
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
NO.1
NO.2
17564SUPPORT,EXHAUST PIPE, NO.4
NO.1
NO.2
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.1
NO.2
NO.2
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17577BRACKET, EXHAUST PIPE SUPPORT, NO.7
17581ADAMPER, EXHAUST PIPE
5102
8401
9011608370
main90116-08370
9050135032
main90501-35032
9050135037
main90501-35037
9090105031
main90901-05031
9155380820
main91553-80820
9155380830
main91553-80830
9155381035
main91553-81035
9418560800
main94185-60800
26 parts on this diagram · 5 diagrams in section
