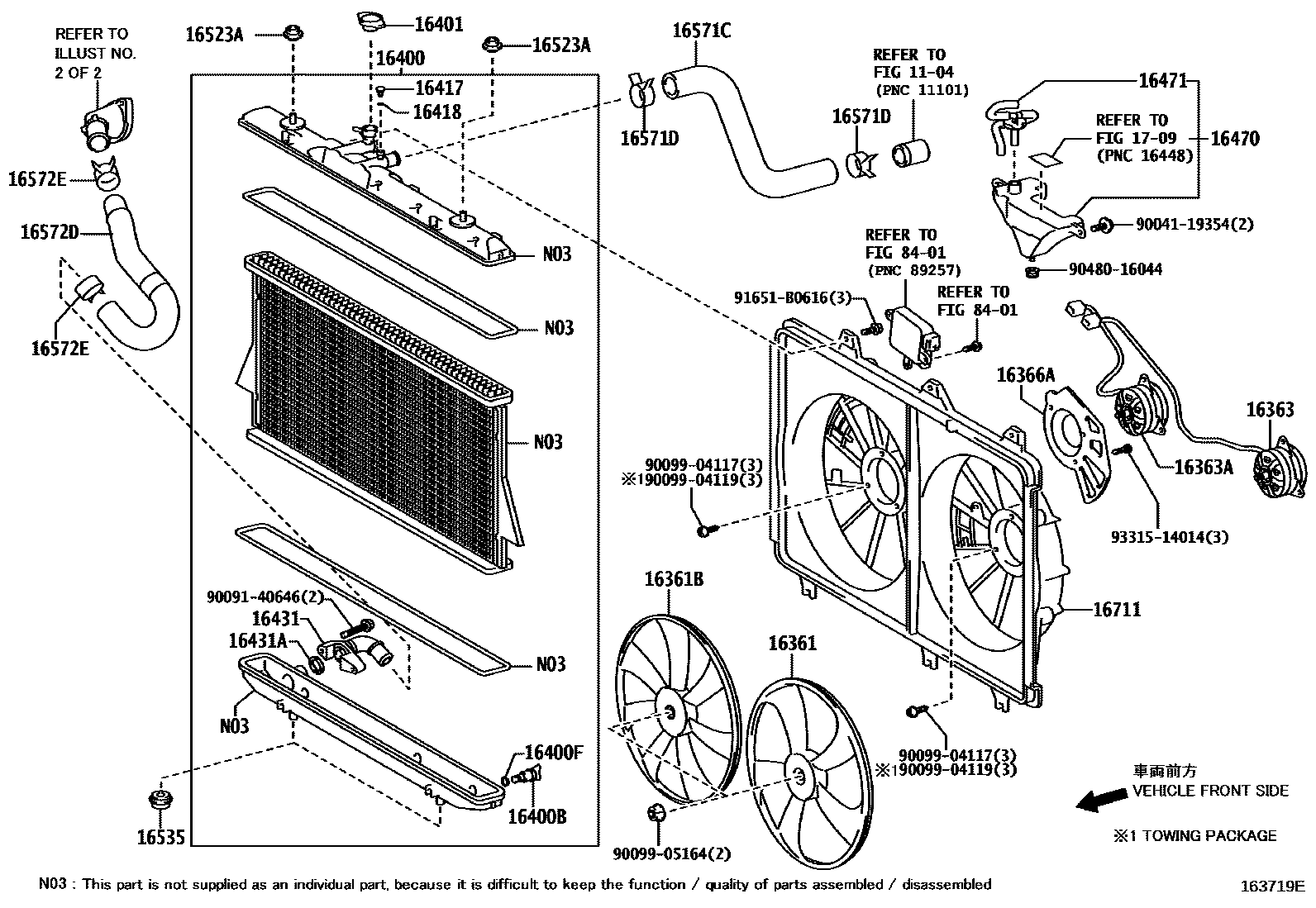

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1TOWING PACKAGE 0004 1 0005 1 0006 1 0007 1 0008 1ECUADOR SPEC 0009 1 0010 1

1104

16361FAN

main16361-20250i3MZFE..MHU48200708

main16361-31260i1ARFE..ASU40200705-201008

main16361-31280i2GRFE..GSU4#200705-201008

TOWING PACKAGE-5000LBS

main16361-31310i1ARFE..ASU40200811

TOWING PACKAGE-3500LBS

main16361-31380i2GRFXE..GVU48201008

16361BFAN, NO.2

main16361-20260i3MZFE..MHU48200708

main16361-31250i2GRFE..GSU4#200705-201008

main16361-31270i2GRFE..GSU4#200705-201008

TOWING PACKAGE-5000LBS

main16361-31370i2GRFXE..GVU48201008

main16361-36010i1ARFE..ASU40200811

TOWING PACKAGE-3500LBS

16363MOTOR, COOLING FAN

main16363-20390i3MZFE..MHU48200708

sub16363-75020

main16363-31190i2GRFXE..GVU48201008

main16363-31210i2GRFE..GSU4#200705-201008

TOWING PACKAGE-5000LBS

main16363-31270i2GRFE..GSU4#200705-201008

main16363-36020i1ARFE..ASU40200811

TOWING PACKAGE-3500LBS

main16363-36030i1ARFE..ASU40200811

16363AMOTOR, COOLING FAN, NO.2

main16363-31200i2GRFXE..GVU48201008

main16363-31280i2GRFE..GSU4#200705-201008

main16363-36010i1ARFE..ASU40200811

TOWING PACKAGE-3500LBS

main16363-36040i1ARFE..ASU40200811

main16363-46170i2GRFE..GSU4#200705-201008

TOWING PACKAGE-5000LBS

sub16363-31450

16366AINSULATOR, COOLING FAN MOTOR

main16366-36010i1ARFE..ASU40200811

16400RADIATOR ASSY

main16041-36050i1ARFE..ASU40200811

main16041-36060i1ARFE..ASU40200811

TOWING PACKAGE-3500LBS

16400BPLUG, RADIATOR DRAIN COCK

main16417-28530i2GRFE..GSU4#200705-201008

NO.1

main23322-87101i2GRFE..GSU4#200705-201008

NO.2

main23322-87101i1ARFE..ASU40200811

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-20290i3MZFE..MHU48200705-201008

NO.1

main16492-21050i2GRFXE..GVU48200705-201402

NO.2

main16492-21050i1ARFE..ASU40200811

16401CAP SUB-ASSY, RADIATOR

main16401-31480i2GRFXE..GVU48200705-201101

main16401-31520i2GRFXE..GVU48201102

sub16401-36020

16417COCK

main16417-28530i1ARFE..ASU40200811

16418PACKING

main16418-20290i1ARFE..ASU40200811

16431INLET, RADIATOR WATER

main16431-36050i1ARFE..ASU40200811

16431ARING, O(FOR RADIATOR WATER INLET)

main16492-36050i1ARFE..ASU40200811

16470TANK ASSY, RADIATOR RESERVE

main16470-31090i3MZFE..MHU48200705-201008

main16470-31140i2GRFXE..GVU48201008

16471CAP SUB-ASSY, RESERVE TANK

main16405-31060i2GRFE..GSU4#200705-201008

main16405-31090i2GRFXE..GVU48201008

16523ACUSHION, RADIATOR SUPPORT

main16523-20020i2GRFE..GSU4#200705-201008

16535SUPPORT, RADIATOR, LOWER

main16535-20030i2GRFXE..GVU48200705-201008

main16535-28030i1ARFE..ASU40200811

16571HOSE, RADIATOR, INLET

main16571-20110i3MZFE..MHU48200708

16571CHOSE, RADIATOR, NO.1

main16571-31230i2GRFE..GSU4#200705-201008

main16571-31300i2GRFXE..GVU48201008

main16571-36060i1ARFE..ASU40200811

16571DCLIP, RADIATOR HOSE, NO.1

main90466-35001i1ARFE..ASU40200811

16572HOSE, RADIATOR, OUTLET

main16572-20140i3MZFE..MHU48200708

16572DHOSE, RADIATOR, NO.2

main16572-31270i2GRFE..GSU4#200705-201008

main16572-31320i2GRFXE..GVU48201008

main16572-36050i1ARFE..ASU40200811

main16572-36070i1ARFE..ASU40200811

TOWING PACKAGE-3500LBS

16572ECLIP, RADIATOR HOSE, NO.2

main90466-35001i1ARFE..ASU40200811

16711SHROUD, FAN

main16711-20190i3MZFE..MHU48200708

main16711-31360i2GRFE..GSU4#200705-201008

sub16711-36080

main16711-31370i2GRFE..GSU4#200705-201008

TOWING PACKAGE-5000LBS

main16711-31520i2GRFXE..GVU48201008

main16711-36070i1ARFE..ASU40200811

TOWING PACKAGE-3500LBS

main16711-36080i1ARFE..ASU40200811

1709

8401

9004119354

main90041-19354

9009140646

main90091-40646

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

9048016044

main90480-16044

91651B0616

main91651-B0616

9331514014

main93315-14014

35 parts on this diagram · 10 diagrams in section
