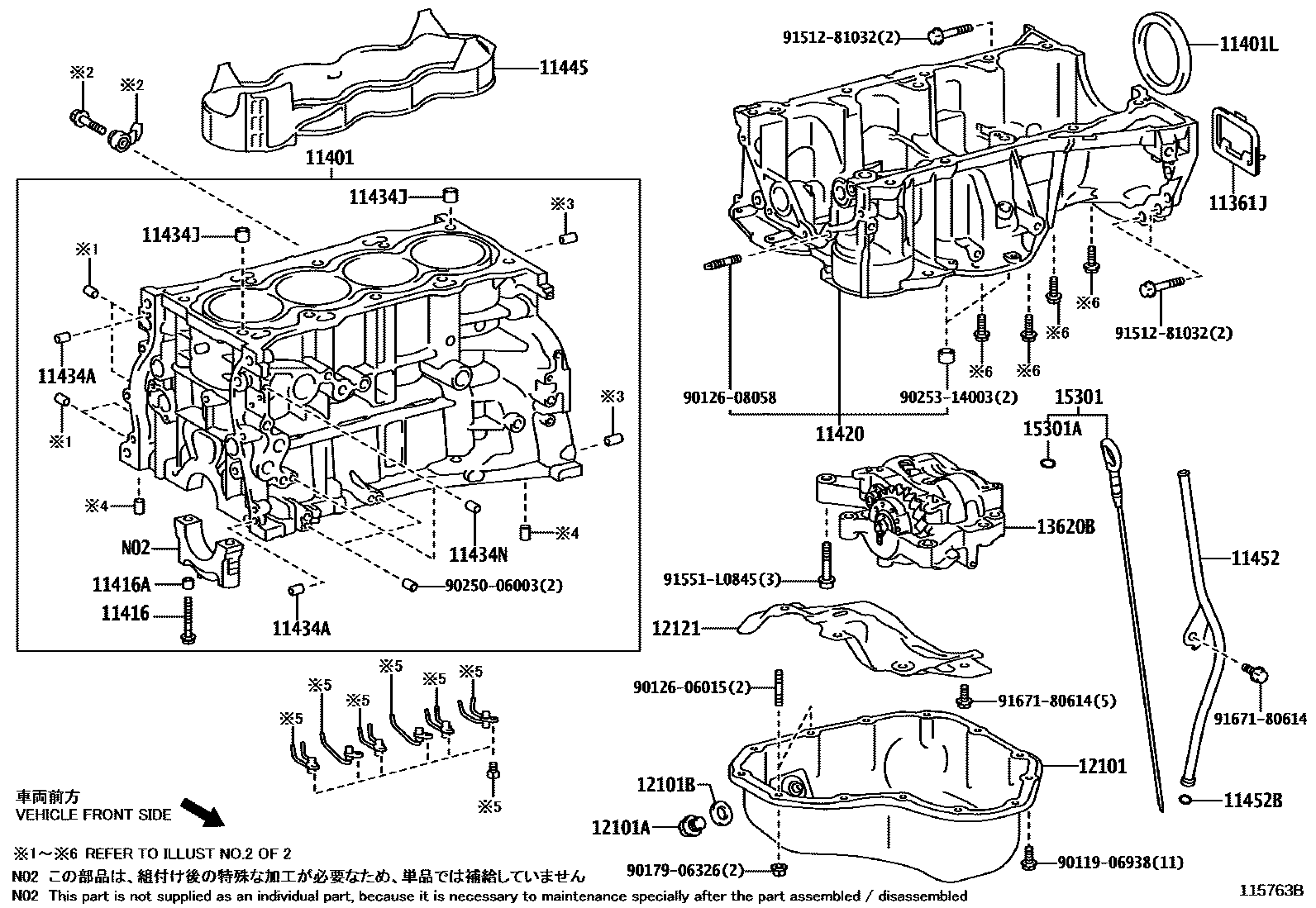

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1W(OIL COOLER) 0005 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-20011i3MZFE..MHU48200708

main11361-28010i1ARFE..ASU40200811

main11361-31060i2GRFE..GSU4#200705-201008

11401BLOCK SUB-ASSY, CYLINDER

main11401-29725i3MZFE..MHU48200708

main11401-80718i2GRFE..GSU4#200705-200804

sub11401-80774

main11401-80774i2GRFE..GSU4#200805-201210

sub11401-80825

main11401-80800i2GRFXE..GVU48201210

sub11401-80814

main11410-39095i1ARFE..ASU40200811-201007

sub11410-39135

11401LSEAL, ENGINE REAR OIL

main90311-89005i1ARFE..ASU40200811

sub90311-89006

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02114i3MZFE..MHU48200708

main90910-02154i2GRFE..GSU4#200705-201402

main90910-02173i1ARFE..ASU40200811-201007

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i1ARFE..ASU40200811-201007

11420CRANKCASE ASSY, STIFFENING

main11420-36020i1ARFE..ASU40200811

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2GRFE..GSU4#200705-201008

L=12,OD=4.0

main90250-06003i1ARFE..ASU40200811

L=14,OD=6

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15001i1ARFE..ASU40200811

main90253-16001i3MZFE..MHU48200708

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i1ARFE..ASU40200811

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-36010i1ARFE..ASU40200811

11452GUIDE, OIL LEVEL GAGE

main11452-20020i3MZFE..MHU48200708

main11452-31060i2GRFE..GSU4#200705-201008

main11452-36020i1ARFE..ASU40200811

sub11452-36021

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRFE..GSU4#200705-201008

main96721-19010i3MZFE..MHU48200708

main96741-19010i1ARFE..ASU40200811

12101PAN SUB-ASSY, OIL

main12101-31121i2GRFE..GSU4#200705-201008

main12101-36040i1ARFE..ASU40200811

main12111-20060i3MZFE..MHU48200708

main12111-31150i2GRFXE..GVU48201008

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2GRFE..GSU4#200705-201008

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1ARFE..ASU40200705-201008

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-20021i3MZFE..MHU48200708

main12121-31070i2GRFE..GSU4#200705-201008

main12121-36030i1ARFE..ASU40200811

13620BBALANCER ASSY, ENGINE

main13620-36010i1ARFE..ASU40200811-201006

sub13620-36011

main13620-36011i1ARFE..ASU40201006-201007

sub13620-36020

15301GAGE SUB-ASSY, OIL LEVEL

main15301-20021i3MZFE..MHU48200708

main15301-31090i2GRFE..GSU4#200705-201008

main15301-31110i2GRFXE..GVU48201008

main15301-36030i1ARFE..ASU40200811

sub15301-36031

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1ARFE..ASU40200811-201007

9011906938

main90119-06938

9012606015

main90126-06015

9012608058

main90126-08058

9017906326

main90179-06326

9025006003

main90250-06003

9025314003

main90253-14003

9151281032

main91512-81032

91551L0845

main91551-L0845

9167180614

main91671-80614

28 parts on this diagram · 5 diagrams in section
