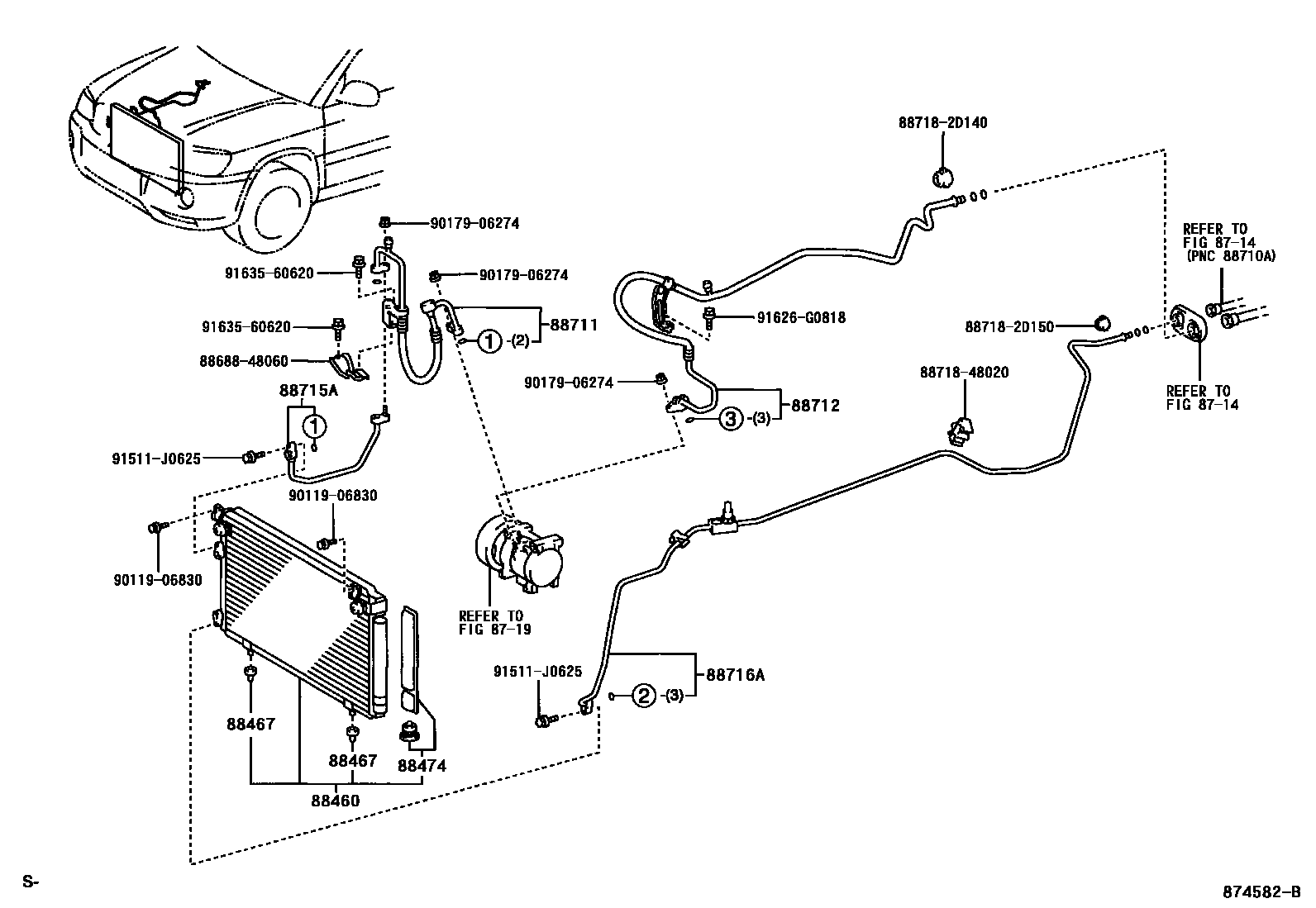

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1O-RING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-48020iACU2#,MCU2#200011-200308

88467CUSHION, COOLER CONDENSER, NO.1

main88467-28040iACU2#,MCU2#200011-200308

88474DRYER, COOLER

main88474-47010iACU2#,MCU2#200011-200308

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-48050iMCU2#200011-200308

main88703-48060iACU2#200011-200308

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-48020iMCU2#200011-200308

main88704-48030iACU2#200011-200308

main88704-48050iACU2#200308

main88704-48060iMCU2#200308

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88705-48030iACU2#,MCU2#200011-200308

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-48080iACU2#,MCU2#200011-200308

main88710-48170iACU2#,MCU2#200308

8868848060BRACKET, COOLER DIAPHRAGM

main88688-48060

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871848020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48020

9011906830

main90119-06830

9017906274

main90179-06274

91511J0625

main91511-J0625

91626G0818

main91626-G0818

9163560620

main91635-60620

18 parts on this diagram · 5 diagrams in section
