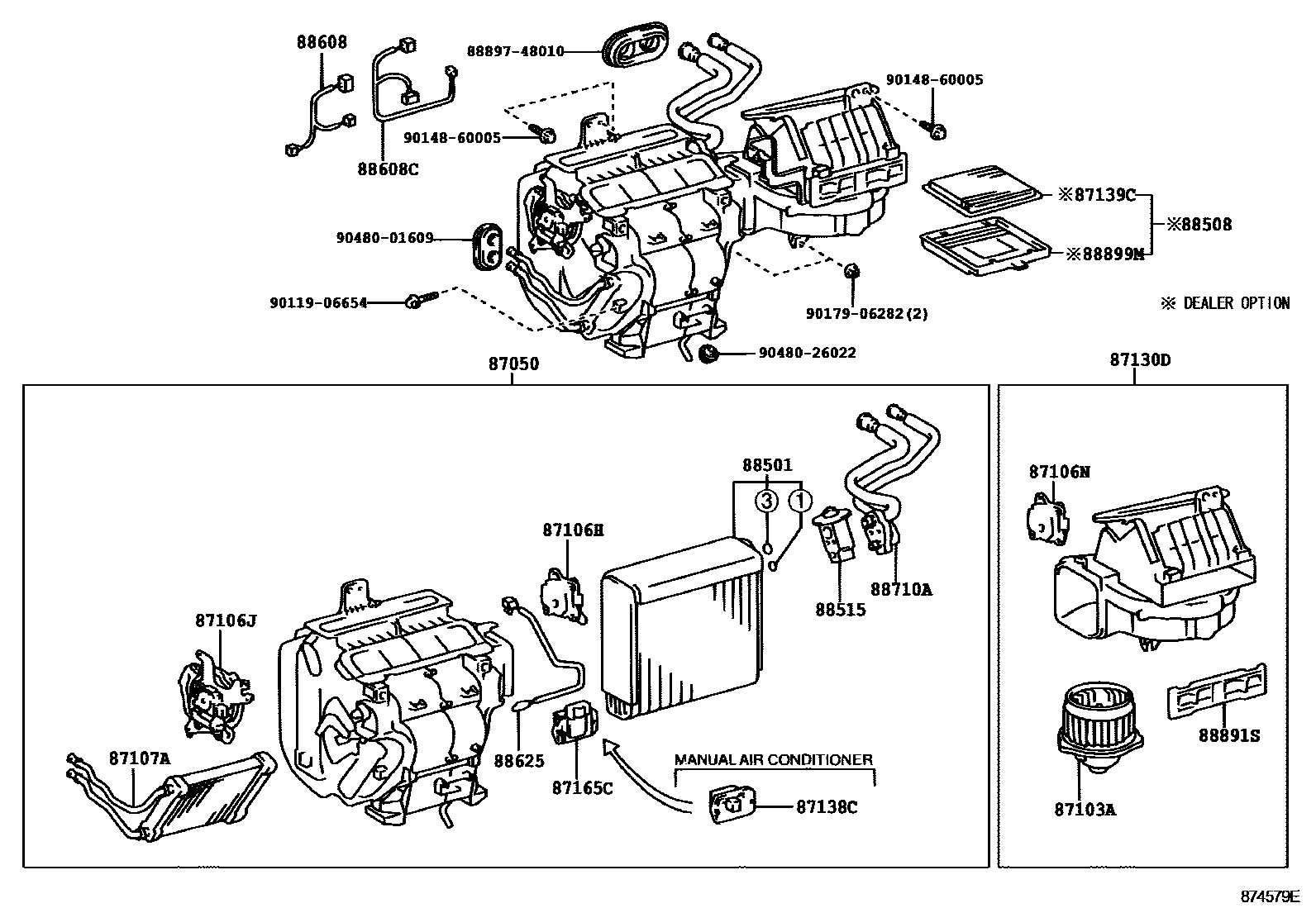

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
MANUAL AIR CONDITIONER
AUTO AIR CONDITIONER
MANUAL AIR CONDITIONER
AUTO AIR CONDITIONER
87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87138CRESISTOR, BLOWER
87139CFILTER, CLEAN AIR
87165CCONTROL, BLOWER MOTOR
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88508FILTER SUB-ASSY, CLEAN AIR
88515VALVE, COOLER EXPANSION
88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2
AUTO AIR CONDITIONER
MANUAL AIR CONDITIONER
AUTO AIR CONDITIONER
MANUAL AIR CONDITIONER
88625THERMISTOR, COOLER, NO.1
88710ATUBE ASSY, AIR CONDITIONER
88891SCOVER, COOLER, NO.1
88899MPLATE, COVER(FOR AIR FILTER)
8889748010VALVE, COOLER MAGNET
main88897-48010
9011906654
main90119-06654
9014860005
main90148-60005
9017906282
main90179-06282
9048001609
main90480-01609
9048026022
main90480-26022
25 parts on this diagram · 3 diagrams in section
