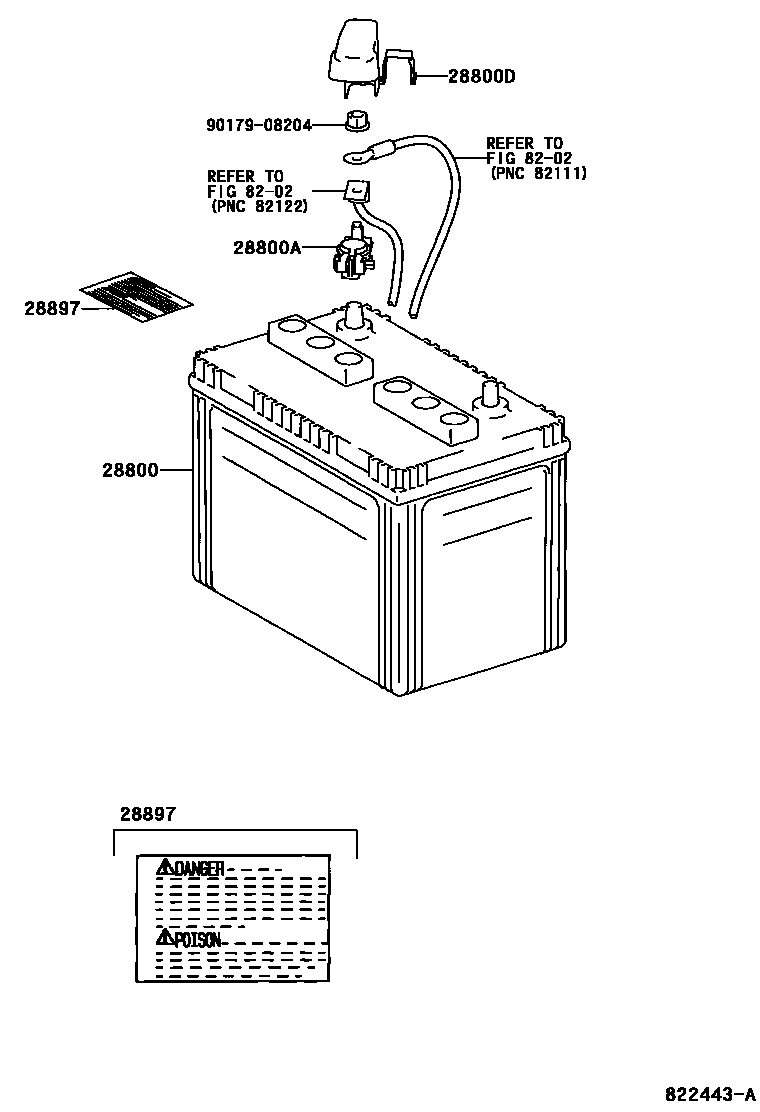

BATTERY & BATTERY CABLE

28800BATTERY

main28800-64132i2AZFE,1MZFE..ACU2#,MCU2#200011-200705

80D26L

sub28800-54020

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2AZFE,3MZFE..ACU2#,MCU2#200308

main90982-05058i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-20350i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

main82821-48020i2AZFE,3MZFE..ACU2#,MCU2#200308

28897PLATE, BATTERY CAUTION

main28897-46020i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

8202

9017908204

main90179-08204

6 parts on this diagram · 1 diagram in section
