FUEL TANK & TUBE

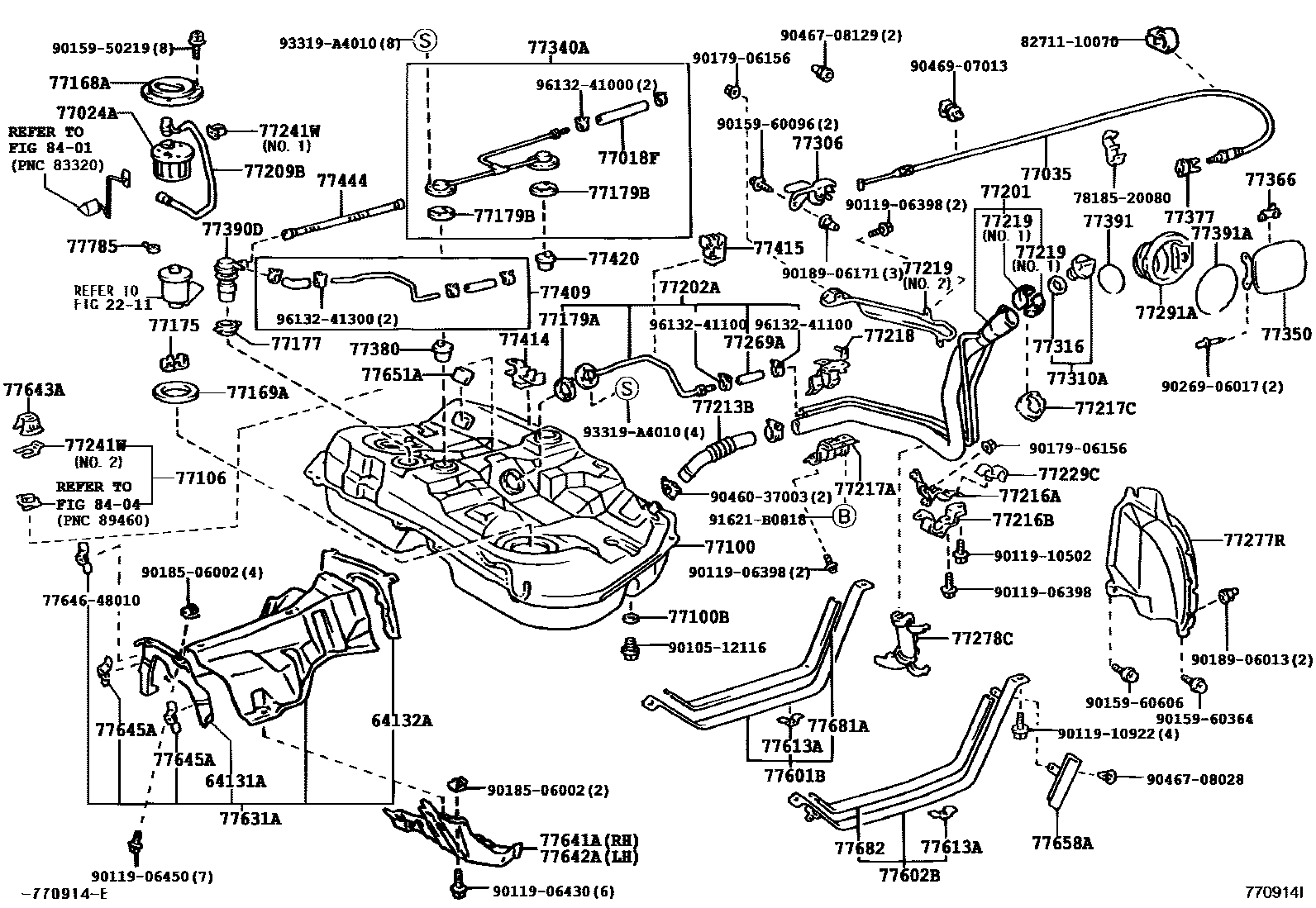

Parts diagram
2211
64131ABRACKET, FUEL TANK PROTECTOR, UPPER NO.1
main64131-48010i200011-200308
64132ABRACKET, FUEL TANK PROTECTOR, UPPER NO.2
main64132-48010i200011-200308
77018FHOSE, FUEL TANK EVAPORATION VENT
main95337-06015i200011-200308
L=150
77024APLATE SUB-ASSY, FUEL SUCTION
main77024-30070i200011-200308
main77024-48010i200308-200705
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
main77035-48040i200011-200308
main77035-48060i200308
77100TANK ASSY, FUEL
main77001-48060i200011-200308
main77001-48070i200308-200608
main77001-48090i200308-200504
77100BGASKET(FOR FUEL TANK)
main90430-12245i200011-200308
77106PLATE SUB-ASSY, FUEL TANK SIDE, REAR
main77106-48020i200011-200308
77168APLATE, FUEL TANK VENT TUBE SET
main77168-33040i200011-200308
77169AGASKET, FUEL SUCTION TUBE SET
main77169-33020i200011-200308
main77169-48010i200308-200701
NO.1
sub77169-48030
main77169-48020i200308-200701
NO.2
sub77169-48040
main77169-48030i200702
NO.1
sub77169-48070
main77169-48040i200702
NO.2
77175SUPPORT, FUEL SUCTION, NO.2
main77175-30050i200011-200308
77177GASKET, CHECK VALVE
main77177-33010i200011-200308
77179AGASKET, FUEL TANK BREATHER TUBE
main77179-26010i200011-200308
sub77179-26011
77179BGASKET, FUEL TANK EVAPORATION VENT TUBE
main77179-26010i200011-200308
sub77179-26011
77201PIPE SUB-ASSY, FUEL TANK INLET
main77201-48070i200011-200308
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
main77019-48010i200011-200308
77209BTUBE SUB-ASSY, FUEL PUMP
main77209-48011i200011-200308
main77209-48020i200308
77213BHOSE, FUEL TANK TO FILLER PIPE
main77213-48050i200011-200308
main77213-48060i200308-200607
sub77213-48061
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
main77216-48020i200011-200308
main77216-48030i200308-200605
77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2
main77104-48010i200011-200308
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
main77217-48020i200011-200308
77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2
main77217-12070i200011-200308
main77217-48040i200308-200502
main77217-48050i200502-200605
77218PLATE, FUEL INLET PIPE SET
main77218-48010i200011-200308
77219COVER, FUEL TANK FILLER PIPE
main77219-32030i200011-200308
NO.1
main77219-48010i200011-200308
NO.2
77229CCLAMP, BREATHER TUBE
main77229-48020i200011-200308
main77229-48030i200308-200605
77241WCLIP, TUBE JOINT
main77241-33011i200308
main77241-33011i200011-200308
NO.1
main77241-60320i200011-200308
NO.2
77269AHOSE, FUEL TANK BREATHER
main77269-48010i200011-200308
77277RPROTECTOR, FUEL TANK FILLER PIPE
main77277-48030i200011-200308
main77277-48060i200308
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
main77278-48010i200011-200605
77291ASHIELD, FUEL TANK FILLER PIPE
main77291-48010i200011-200308
main77291-48030i200308
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
main77306-48020i200011-200308
77310ACAP ASSY, FUEL TANK
main77300-33070i200308-200606
sub77300-47010
main77300-50010i200101-200308
sub77300-53010
main77300-52040i200606
main77300-53010i200011-200101
77316GASKET, FUEL TANK CAP
main77316-16010i200011-200308
main77316-33042i200308-200606
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
main77340-48020i200011-200308
77350LID ASSY, FUEL FILLER OPENING
main77350-48030i200011-200308
main77350-48070i200308-200705
77366SPRING, FUEL FILLER OPENING LID HINGE
main77360-30080i200011-200308
77377RETAINER, FUEL FILLER OPENING LID LOCK
main77377-12050i200011-200308
77380VALVE ASSY, FUEL CUT OFF
main77380-26010i200011-200308
77390DVALVE ASSY, FUEL TANK OVER FILL CHECK
main77390-48010i200011-200308
main77390-48022i200308
77391RING, FUEL INLET BOX
main77391-12020i200011-200308
77391ARING, FUEL INLET BOX
main77391-33010i200011-200308
77409HOSE SUB-ASSY, FUEL, NO.3
main77409-48010i200011-200308
77414SUPPORT, FUEL TUBE GROMMET, NO.4
main77414-48010i200011-200308
77415SUPPORT, FUEL TUBE GROMMET, NO.5
main77415-48010i200011-200308
77420VALVE ASSY, FUEL CUT OFF, NO.2
main77420-26010i200011-200308
77444HOSE, FUEL TANK VENT
main77404-48010i200011-200308
main77404-48020i200308
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
main77601-48030i200011-200308
main77601-48040i200308-200704
main77601-48070i200705
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
main77602-48030i200011-200308
main77602-48040i200308
77613ABRACKET, FUEL TANK BAND, NO.1
main77613-16030i200011-200308
77631APROTECTOR, FUEL TANK, LOWER CENTER
main77606-48030i200011-200308
77641APROTECTOR, FUEL TANK, NO.1
main77641-48030i200011-200308
main77641-48040i200308
77642APROTECTOR, FUEL TANK, NO.2
main77642-48030i200011-200308
77643APROTECTOR, FUEL TANK, NO.3
main77643-48010i200011-200308
77645ARETAINER, FUEL TANK PROTECTOR
main77645-48010i200011-200308
77651ACUSHION, FUEL TANK, NO.1
main77651-20090i200011-200308
main77651-48010i200308-200607
77658APROTECTOR, FUEL TANK EDGE, NO.1
main77658-48010i200011-200308
77681ASEAT, FUEL TANK BAND
main77681-32060i200011-200308
main77681-48010i200308-200705
main77681-48050i200705
77682SEAT, FUEL TANK BAND, LH
main77682-16010i200011-200308
main77682-48010i200308
77785HARNESS, FUEL PUMP
main77785-48010i200308-200702
sub77785-48011
main77785-52020i200011-200308
8401
8404
7764648010PACKING, FUEL TANK BRACKET LOWER, B
main77646-48010
7818520080SHAFT, ACCELERATOR PEDAL SUPPORT
main78185-20080
8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10070
9010512116
main90105-12116
9011906398
main90119-06398
9011906430
main90119-06430
9011906450
main90119-06450
9011910502
main90119-10502
9011910922
main90119-10922
9015950219
main90159-50219
9015960096
main90159-60096
9015960364
main90159-60364
9015960606
main90159-60606
9017906156
main90179-06156
9018506002
main90185-06002
9018906013
main90189-06013
9018906171
main90189-06171
9026906017
main90269-06017
9046037003
main90460-37003
9046708028
main90467-08028
9046708129
main90467-08129
9046907013
main90469-07013
91621B0818
main91621-B0818
93319A4010
main93319-A4010
9613241000
main96132-41000
9613241100
main96132-41100
9613241300
main96132-41300

89 parts on this diagram · 5 diagrams in section
