SEAT BELT & CHILD RESTRAINT SEAT

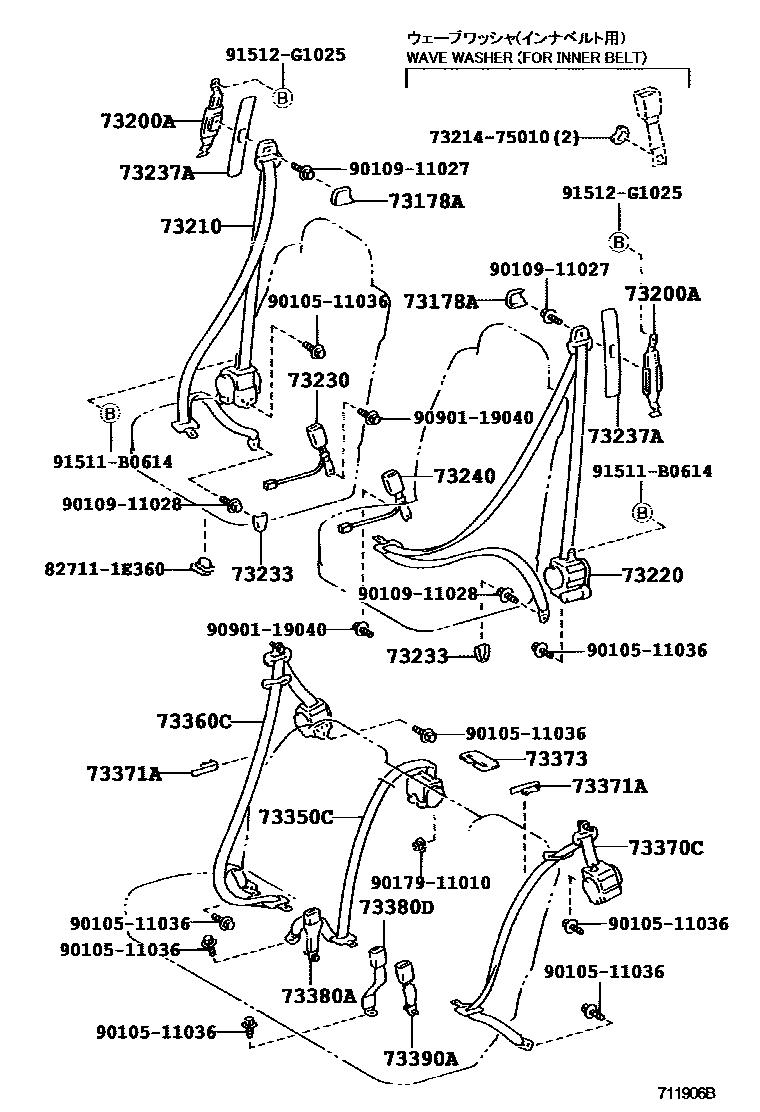

0001 1 0002 1FRONT SEAT 0003 1REAR SEAT 0004 1REAR NO.1 SEAT 0005 1REAR NO.2 SEAT

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33020-A1iACU2#,MCU2#200011-200705

IVORY,TRIM0#

sub73178-33020¥570

main73178-33020-B1iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

sub73178-33020¥570

main73178-33020-P3iACU2#,MCU2#200308-200705

GRAY,TRIM1#

sub73178-33020¥570

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-52010-A0iACU2#,MCU2#200011-200705

IVORY,TRIM0#

sub73200-52010¥5,300

sub73200-28030¥5,400

main73200-52010-B2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

sub73200-52010¥5,300

sub73200-28030¥5,400

main73200-52010-B6iACU2#,MCU2#200308-200705

GRAY,TRIM1#

sub73200-52010¥5,300

sub73200-28030¥5,400

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-48060-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

sub73210-48060¥37,800

main73210-48060-B0iACU2#,MCU2#200011-200308

GRAY,TRIM1#

sub73210-48060¥37,800

main73210-48130-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main73210-48130-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-48040-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

sub73220-48040¥37,800

main73220-48040-B1iACU2#,MCU2#200011-200308

GRAY,TRIM1#

sub73220-48040¥37,800

main73220-48110-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

main73220-48110-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-48020-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

sub73230-48020¥5,800

main73230-48020-B2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

sub73230-48020¥5,800

main73230-48160-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

sub73230-48160¥10,000

main73230-48160-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

sub73230-48160¥10,000

main73230-48230-A0iMCU2#200308-200705

W(POWER SEAT),IVORY,TRIM0#

sub73230-48230¥9,100

main73230-48230-B0iMCU2#200308-200705

W(POWER SEAT),GRAY,TRIM1#

sub73230-48230¥9,100

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-A1iACU2#,MCU2#200011-200705

IVORY,TRIM0#

sub73233-33010¥300

main73233-33010-B2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

sub73233-33010¥300

main73233-33010-P3iACU2#,MCU2#200308-200705

GRAY,TRIM1#

sub73233-33010¥300

73237ACOVER, SHOULDER BELT ANCHOR

main73135-12030-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

sub73135-12030¥760

main73135-12030-B3iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

sub73135-12030¥760

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-48010-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

sub73230-48010¥5,800

main73230-48010-B2iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

sub73230-48010¥5,800

main73230-48030-A0iACU2#,MCU2#200011-200308

W(POWER SEAT),IVORY,TRIM0#

sub73230-48030¥5,800

main73230-48030-B2iACU2#,MCU2#200011-200308

W(POWER SEAT),MD.CHARCOAL,TRIM1#

sub73230-48030¥5,800

main73230-48150-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

sub73230-48150¥10,000

main73230-48150-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

sub73230-48150¥10,000

main73230-48210-A0iACU2#,MCU2#200308-200705

W(POWER SEAT),IVORY,TRIM0#

sub73230-48210¥9,100

main73230-48210-B0iACU2#,MCU2#200308-200705

W(POWER SEAT),GRAY,TRIM1#

sub73230-48210¥9,100

73350CBELT ASSY, REAR SEAT, OUTER CENTER

main73350-48010-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

sub73350-48010¥23,800

main73350-48010-B0iACU2#,MCU2#200011-200308

GRAY,TRIM1#

sub73350-48010¥23,800

main73350-48030-A0iACU2#,MCU2#..05S200308-200705

IVORY,TRIM0#

sub73350-48140¥23,800

sub73350-48030¥23,800

main73350-48030-B2iACU2#,MCU2#..05S200308-200705

GRAY,TRIM1#

sub73350-48140¥23,800

sub73350-48030¥23,800

main73350-48040-A0iACU2#,MCU2#..07S200308-200705

IVORY,TRIM0#

sub73350-48040¥23,900

main73350-48040-B0iACU2#,MCU2#..07S200308-200705

GRAY,TRIM1#

sub73350-48040¥23,900

73360CBELT ASSY, REAR NO.1 SEAT, OUTER RH

main73360-48030-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

sub73360-48030¥24,600

main73360-48030-B0iACU2#,MCU2#200011-200308

GRAY,TRIM1#

sub73360-48030¥24,600

main73360-48050-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

sub73360-48050¥23,900

main73360-48050-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

sub73360-48050¥23,900

73370CBELT ASSY, REAR NO.1 SEAT, OUTER LH

main73370-48030-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

sub73370-48030¥24,600

main73370-48030-B0iACU2#,MCU2#200011-200308

GRAY,TRIM1#

sub73370-48030¥24,600

main73370-48050-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

sub73370-48050¥23,900

main73370-48050-B0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

sub73370-48050¥23,900

73371AHANGER REAR SEAT SHOULDER BELT

main73371-44020-A1iACU2#,MCU2#200011-200705

IVORY,TRIM0#

sub73371-44020¥520

main73371-44020-B2iACU2#,MCU2#200011-200308

DK.CHARCOAL,TRIM1#

sub73371-44020¥520

main73371-44020-P0iACU2#,MCU2#200308-200705

GRAY,TRIM1#

sub73371-44020¥520

73373COVER, REAR SEAT SHOULDER BELT

main73373-33020-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

sub73373-33020¥610

sub73373-12020¥740

main73373-33020-B4iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

sub73373-33020¥610

sub73373-12020¥740

main73373-48011iACU2#,MCU2#..05S¥940200308

main73373-48040iACU2#,MCU2#..07S¥2,420200308

73380ABELT ASSY, REAR SEAT, INNER

main73380-48010-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

sub73380-48010¥4,750

main73380-48010-B3iACU2#,MCU2#200011-200308

MD.CHARCOAL,TRIM1#

sub73380-48010¥4,750

main73380-48030-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

sub73380-48030¥3,810

main73380-48030-B1iACU2#,MCU2#200308-200705

GRAY,TRIM1#

sub73380-48030¥3,810

73380DBELT ASSY, REAR SEAT, INNER

main73380-48020-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

sub73380-48020¥3,810

main73380-48020-B0iACU2#,MCU2#200011-200308

GRAY,TRIM1#

sub73380-48020¥3,810

main73380-48040-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

sub73380-48040¥3,810

main73380-48040-B1iACU2#,MCU2#200308-200705

NEW GRAY,TRIM1#

sub73380-48040¥3,810

73390ABELT ASSY, REAR SEAT, INNER

main73480-48020-A0iACU2#,MCU2#200011-200308

IVORY,TRIM0#

sub73480-48020¥3,810

main73480-48020-B0iACU2#,MCU2#200011-200308

GRAY,TRIM1#

sub73480-48020¥3,810

main73480-48030-A0iACU2#,MCU2#200308-200705

IVORY,TRIM0#

sub73480-48030¥4,730

main73480-48030-B1iACU2#,MCU2#200308-200705

GRAY,TRIM1#

sub73480-48030¥4,730

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010¥170

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360¥60

9010511036

main90105-11036¥110

9010911027

main90109-11027¥180

9010911028

main90109-11028¥890

9017911010

main90179-11010¥110

9090119040

main90901-19040¥120

91511B0614

main91511-B0614¥90

91512G1025

main91512-G1025¥100

25 parts on this diagram · 5 diagrams in section
