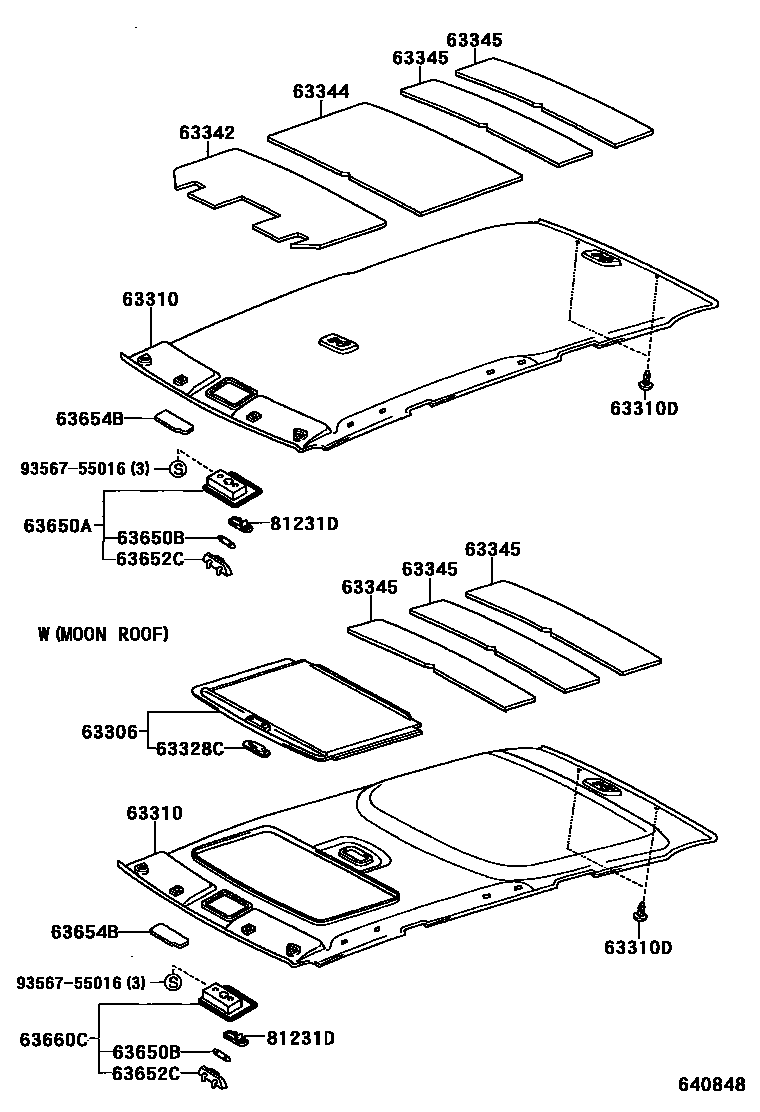

ROOF HEADLINING & SILENCER PAD
63306TRIM SUB-ASSY, SUNSHADE
IVORY,TRIM0#
IVORY,TRIM03
LT. GRAY,TRIM1#
LT. GRAY,TRIM0#
LT. GRAY,TRIM13
63310HEADLINING ASSY, ROOF
IVORY,TRIM0#
MEDIUM CHARCOAL,TRIM1#
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),MEDIUM CHARCOAL,TRIM1#
IVORY,TRIM0#
MEDIUM CHARCOAL,TRIM1#
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),MEDIUM CHARCOAL,TRIM1#
IVORY,TRIM0#
LT. GRAY,TRIM1#
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),LT. GRAY,TRIM1#
W(TELEVISION & MOON ROOF),IVORY,TRIM0#
W(TELEVISION & MOON ROOF),LT. GRAY,TRIM1#
63310DCLIP, ROOF HEADLINING
63328CKNOB, SUNSHADE TRIM
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
63342PAD, ROOF SILENCER, NO.2
63344PAD, ROOF SILENCER, NO.4
W(MOON ROOF)
63345PAD, ROOF SILENCER, NO.5
W(MOON ROOF)
63650ABOX ASSY, ROOF CONSOLE
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
W(GARAGE DOOR OPENER & MOON ROOF),IVORY,TRIM0#
sub63650-48040
W(GARAGE DOOR OPENER & MOON ROOF),GRAY,TRIM1#
sub63650-48040
63650BBULB, ROOF CONSOLE BOX
63652CCOVER, ROOF CONSOLE BOX
IVORY,TRIM0#
MD.CHARCOAL,TRIM1#
63654BCOVER, ROOF CONSOLE BOX, INNER
sub63654-33011
63660CBOX ASSY, ROOF CONSOLE W/O RELAY
81231DLENS, COURTESY
W(MOON ROOF)
9356755016
main93567-55016
14 parts on this diagram · 3 diagrams in section
