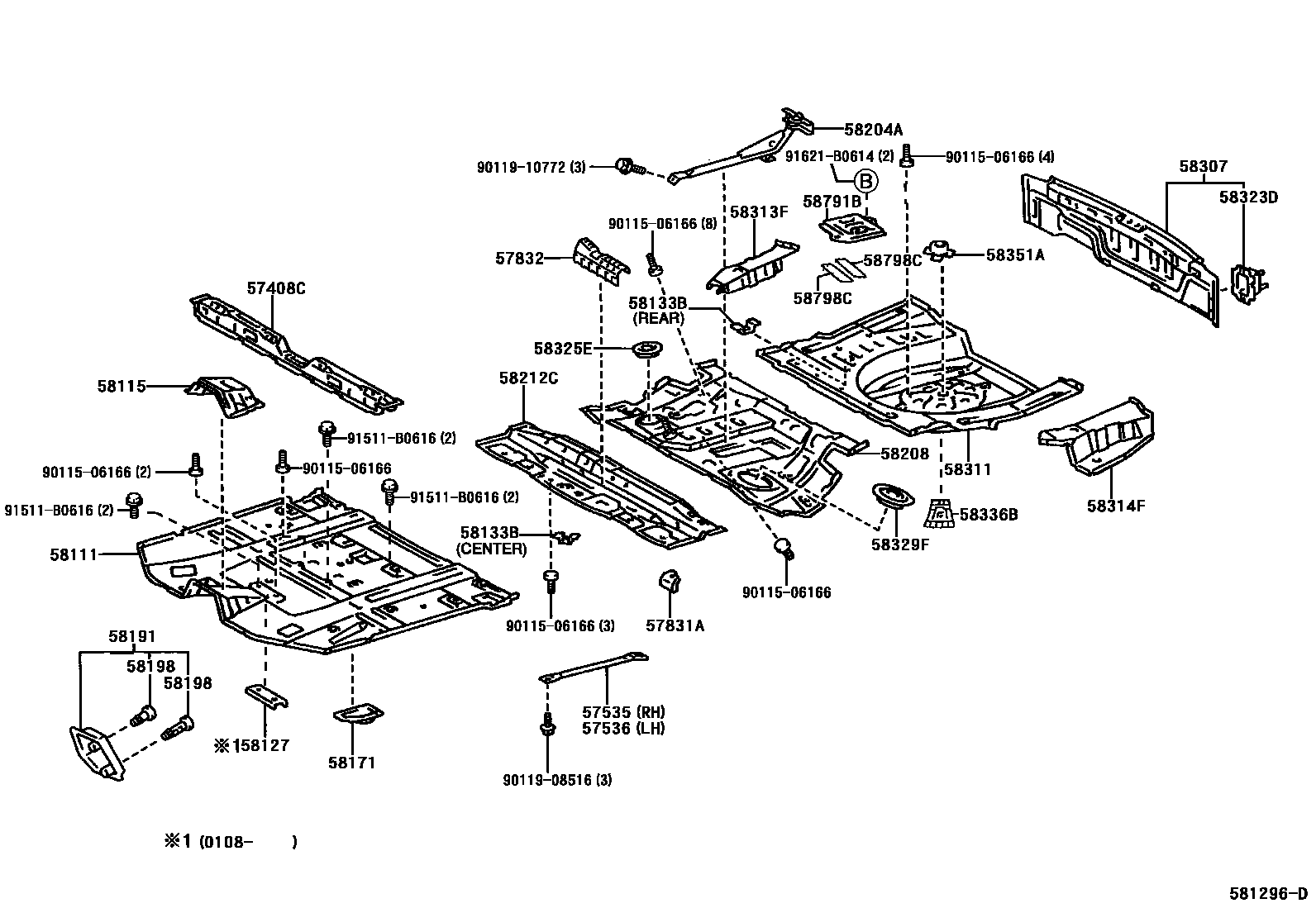

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1HOLE PLUG 0004 1HOLE PLUG

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57451-48901iACU2#,MCU2#200011-200308

sub58013-48010

main58013-48010iACU2#,MCU2#200308

57535BRACE, FRONT FLOOR, RH

main57508-48010iACU2#,MCU2#200011-200308

57536BRACE, FRONT FLOOR, LH

main57509-48010iACU2#,MCU2#200011-200308

57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1

main57831-48010iACU2#,MCU2#200011-200308

57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2

main57832-48010iACU2#,MCU2#200011-200308

main57832-48020iACU2#,MCU2#200308

58111PAN, FRONT FLOOR

main58111-48905iACU2#,MCU2#200011-200108

sub58111-48906

sub90950-01526

main58111-48906iACU2#,MCU2#200108-200210

sub58111-48911

main58111-48907iACU25,MCU28200308-200408

main58111-48911iACU2#,MCU2#200210-200308

main58111-48912iACU25,MCU28200406

sub58111-48916

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58115-48030iACU2#,MCU2#200011-200308

main58115-48040iACU2#,MCU2#200308

58127PATCH, FRONT FLOOR PANEL

main58127-48010iACU2#,MCU2#200108-200308

58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3

main58133-22040iACU2#,MCU2#200011-200308

CENTER

main58133-22040iACU2#,MCU2#200011-200308

REAR

main58133-22040iACU2#,MCU2#200308

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-48020iACU2#,MCU2#200011-200308

main58171-48030iACU2#,MCU2#200308

58191FOOTREST, FRONT FLOOR

main58191-48040iACU2#,MCU2#200011-200308

58198CLIP, FOOTREST

main58198-20210iACU2#,MCU2#200011-200308

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-48020iACU2#,MCU2#200011-200308

main58204-48030iACU2#,MCU2#..05S200308

main58205-48010iACU2#,MCU2#..07S200308

58208PAN, CENTER FLOOR

main58211-48900iACU2#,MCU2#200011-200210

sub58211-48905

main58211-48905iACU2#,MCU2#200210-200308

58212CPAN, CENTER FLOOR, FRONT

main58212-48903iACU2#,MCU2#200011-200210

sub58212-48905

main58212-48904iACU2#,MCU2#200308

main58212-48905iACU2#,MCU2#200210-200308

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-48050iACU2#,MCU2#200011-200308

main58307-48080iACU2#,MCU2#200308-200705

58311PAN, REAR FLOOR

main58311-48901iACU2#,MCU2#200011-200209

sub58311-48906

main58311-48905iACU2#,MCU2#200308

main58311-48906iACU2#,MCU2#200209-200308

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-48010iACU2#,MCU2#200011-200302

sub58313-48011

sub90467-06147

main58313-48011iACU2#,MCU2#200302-200308

main58313-48050iACU2#,MCU2#200308-200702

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-48010iACU2#,MCU2#200011-200302

sub58314-48011

sub90467-06147

main58314-48011iACU2#,MCU2#200302-200308

main58314-48030iACU2#,MCU2#200308-200702

58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT

main58323-48040iACU2#,MCU2#200308

RH

main58323-48060iACU2#,MCU2#200011-200308

RH

main58324-48030iACU2#,MCU2#200308

LH

main58324-48040iACU2#,MCU2#200011-200308

LH

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-48010iACU2#,MCU2#200011-200308

main58325-48020iACU2#,MCU2#200308

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-48010iACU2#,MCU2#200011-200308

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-48011iACU2#,MCU2#200011-200308

58351ABRACKET, SPARE WHEEL CARRIER

main58351-50010iACU2#,MCU2#200011-200308

58791BCARRIER, JACK

main58791-48010iACU2#,MCU2#200011-200308

58798CCUSHION, JACK CARRIER

main58798-48010iACU2#,MCU2#200011-200308

9011506166

main90115-06166

9011908516

main90119-08516

9011910772

main90119-10772

91511B0616

main91511-B0616

91621B0614

main91621-B0614

31 parts on this diagram · 4 diagrams in section
