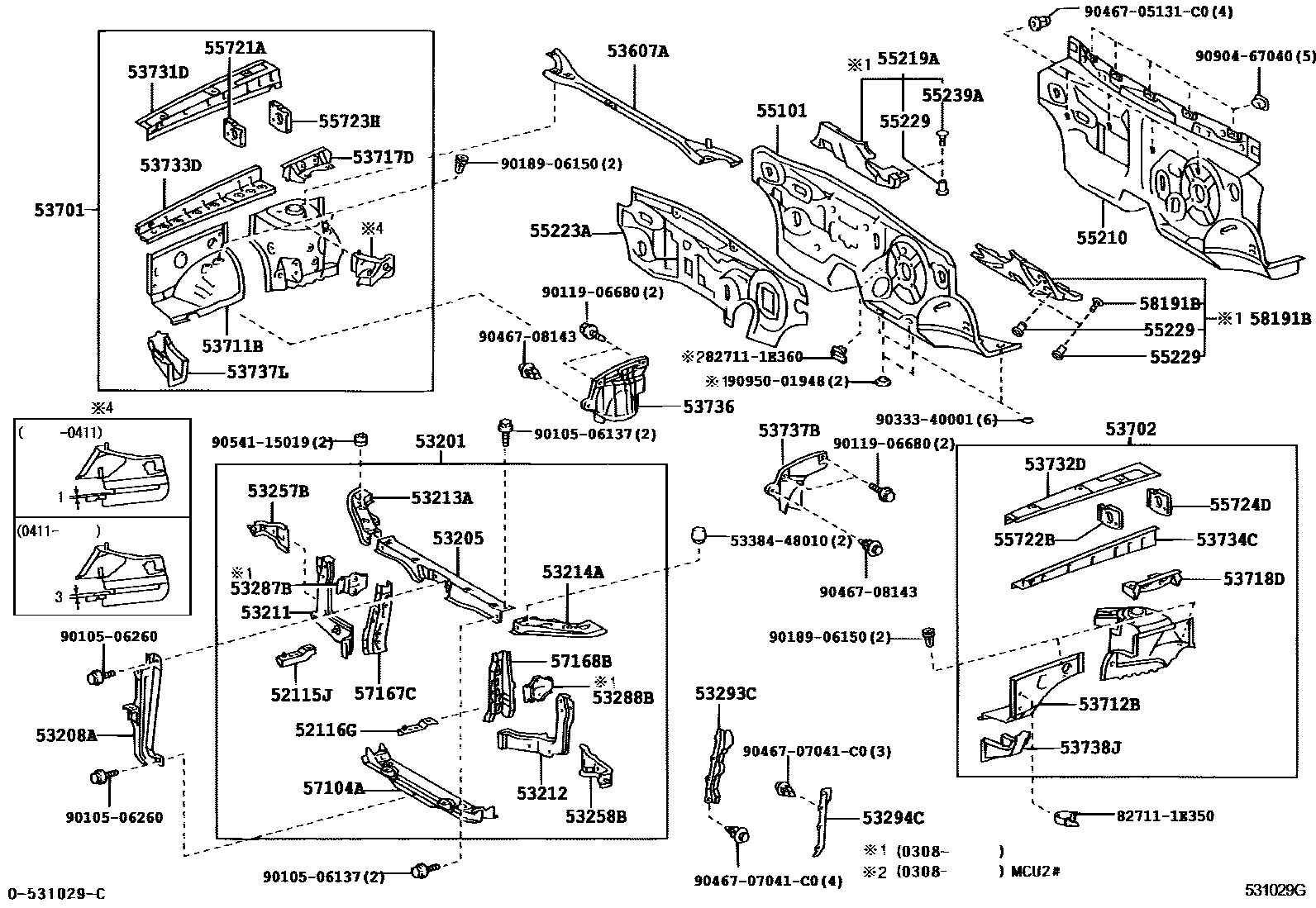

FRONT FENDER APRON & DASH PANEL
52115JSUPPORT, FRONT BUMPER SIDE, RH
52116GSUPPORT, FRONT BUMPER SIDE, LH
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
W(VSC)
W(DAY TIME RUNNING LIGHT SYSTEM)
53702APRON SUB-ASSY, FRONT FENDER, LH
53712BAPRON, FRONT FENDER, FRONT LH
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53737BSEAL, FRONT FENDER APRON, LH
53737LGUSSET, FRONT FENDER APRON WIND GUIDE, RH
53738JGUSSET, FRONT FENDER APRON WIND GUIDE, LH
55210INSULATOR ASSY, DASH PANEL
55219APACKING, DASH PANEL HOLE COVER
55223AINSULATOR, DASH PANEL, OUTER
55229PLATE, DASH PANEL INSULATOR, NO.4
BLACK
YELLOW
55239APLATE, DASH PANEL INSULATOR, NO.3
55721ABRACE, COWL TOP TO COWL, INNER NO.1
55722BBRACE, COWL TOP TO COWL, INNER NO.2
55723HREINFORCEMENT, COWL TOP SIDE, RH
55724DREINFORCEMENT, COWL TOP SIDE, LH
57104AMEMBER SUB-ASSY, FRONT CROSS
57167CGUSSET, FRONT CROSSMEMBER SIDE, RH
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
58191BFOOTREST, FRONT FLOOR
5338448010BAR, HOOD SILENCER SUPPORT
main53384-48010
827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E350
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9010506137
main90105-06137
9010506260
main90105-06260
9011906680
main90119-06680
9018906150
main90189-06150
9033340001
main90333-40001
9046705131C0
main90467-05131C0
9046707041C0
main90467-07041C0
9046708143
main90467-08143
9054115019
main90541-15019
9090467040
main90904-67040
9095001948
main90950-01948
58 parts on this diagram · 1 diagram in section
