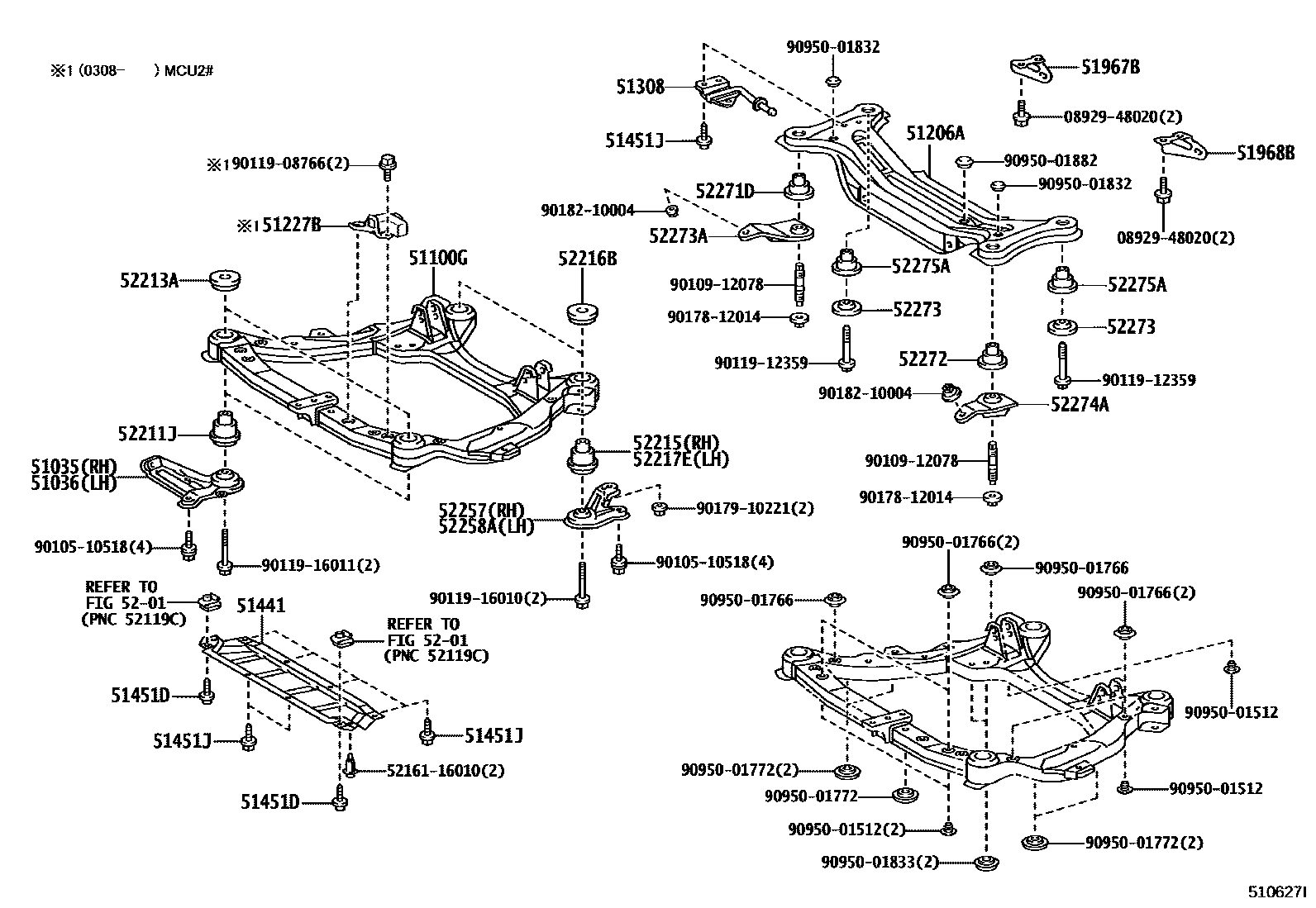

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-48010iACU2#,MCU2#200011-200308

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-48010iACU2#,MCU2#200011-200308

51100GFRAME ASSY, FRONT

main51100-28030iACU2#,MCU2#200011-200302

sub51100-28031

sub51100-28051

main51100-28031iACU2#,MCU2#200302-200703

sub51100-48070

main51100-48070iACU2#,MCU2#200704

sub51100-48071

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-48020iACU25,MCU25200011-200208

sub51206-48021

sub48198-48010

sub48409-48010

sub48730-48031

sub48730-48041

sub48730-48051

sub48730-48061

sub48740-48021

sub90179-14069

main51206-48021iACU25,MCU25200208-200302

sub51206-48022

main51206-48022iACU25,MCU25200302-200308

main51206-48030iACU20,MCU20200011-200502

sub51206-48031

main51206-48031iACU20,MCU23200503-200508

sub51206-48070

main51206-48032iACU20,MCU23200508-200509

sub51206-48070

main51206-48040iACU25,MCU28200308

main51206-48070iACU20,MCU23200509

sub51206-48071

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-48030iMCU2#200308

51308BRACKET SUB-ASSY, EXHAUST PIPE CLAMP

main51308-48010iACU20,MCU20200011-200308

main51308-48021iACU20,MCU23200308-200512

sub51308-48022

main51308-48022iACU20,MCU23200601

51441COVER, ENGINE UNDER, NO.1

main51441-48020iACU2#,MCU2#200011-200308

51451DSCREW, NO.1

main90159-60444iACU2#,MCU2#200011-200705

51451JBOLT, NO.1

main90119-06699iACU2#,MCU2#200011-200705

51967BHOOK, TRANSPORT, REAR RH

main51967-48010iACU2#,MCU2#200011-200302

main51967-48020iACU2#,MCU2#200302-200308

51968BHOOK, TRANSPORT, REAR LH

main51968-48010iACU2#,MCU2#200011-200308

5201

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-28020iACU2#,MCU2#200011-200308

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28020iACU2#,MCU2#200011-200308

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28010iACU2#,MCU2#200011-200308

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28010iACU2#,MCU2#200011-200308

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-28010iACU2#,MCU2#200011-200308

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-48020iACU2#,MCU2#200011-200308

main51023-48030iACU2#,MCU2#200308

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-48020iACU2#,MCU2#200011-200308

main51024-48030iACU2#,MCU2#200308

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-32010iACU25,MCU25200011-200308

main52271-33030iACU20,MCU23200011-200308

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-32010iACU25,MCU25200011-200308

main52272-33040iACU20,MCU20200011-200308

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33010iACU20,MCU20200011-200308

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-48010iACU20,MCU20200011-200308

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-48010iACU20,MCU20200011-200308

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-33050iACU20,MCU20200011-200308

main52275-48010iACU25,MCU28200011-200308

0892948020

main08929-48020

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9010510518

main90105-10518

9010912078

main90109-12078

9011908766

main90119-08766

9011912359

main90119-12359

9011916010

main90119-16010

9011916011

main90119-16011

9017812014

main90178-12014

9017910221

main90179-10221

9018210004

main90182-10004

9095001512

main90950-01512

9095001766

main90950-01766

9095001772

main90950-01772

9095001832

main90950-01832

9095001833

main90950-01833

9095001882

main90950-01882

42 parts on this diagram · 2 diagrams in section
