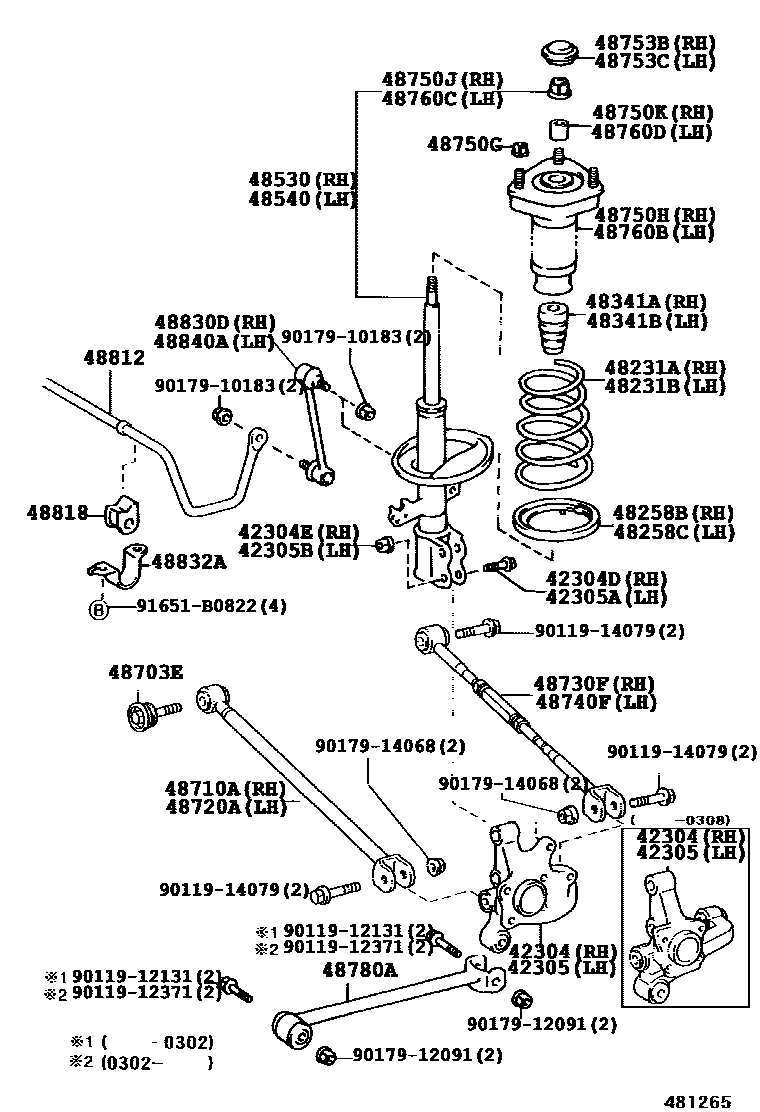

REAR SPRING & SHOCK ABSORBER
42304DBOLT (FOR REAR AXLE CARRIER RH)
42304ENUT (FOR REAR AXLE CARRIER RH)
42305ABOLT (FOR REAR AXLE CARRIER LH)
42305BNUT (FOR REAR AXLE CARRIER LH)
48231ASPRING, COIL, REAR RH
sub48231-48121
sub48231-48151
sub48231-48191
sub48231-48231
TOURING EDITION(USA/CANADA/HAWAII/P.RICO)
48231BSPRING, COIL, REAR LH
sub48231-48121
sub48231-48151
sub48231-48191
sub48231-48231
TOURING EDITION(USA/CANADA/HAWAII/P.RICO)
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-48080
MARK 48530-48100
MARK 48530-48200
MARK 48530-48220,TOURING EDITION(USA/CANADA/HAWAII/P.RICO)
sub48530-49335
MARK 48530-48230
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48540-48080
MARK 48540-48100
MARK 48540-48210
MARK 48540-48220,TOURING EDITION(USA/CANADA/HAWAII/P.RICO)
sub48540-49225
MARK 48540-48230
48703EBOLT(FOR REAR SUSPENSION ARM)
*14-1.50PX76-36
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48780AROD ASSY, STRUT, REAR
48812BAR, STABILIZER, REAR
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
LH
RH
RH
48840ALINK ASSY, REAR STABILIZER, LH
9011912131
main90119-12131
9011912371
main90119-12371
9011914079
main90119-14079
9017910183
main90179-10183
9017912091
main90179-12091
9017914068
main90179-14068
91651B0822
main91651-B0822
41 parts on this diagram · 3 diagrams in section
