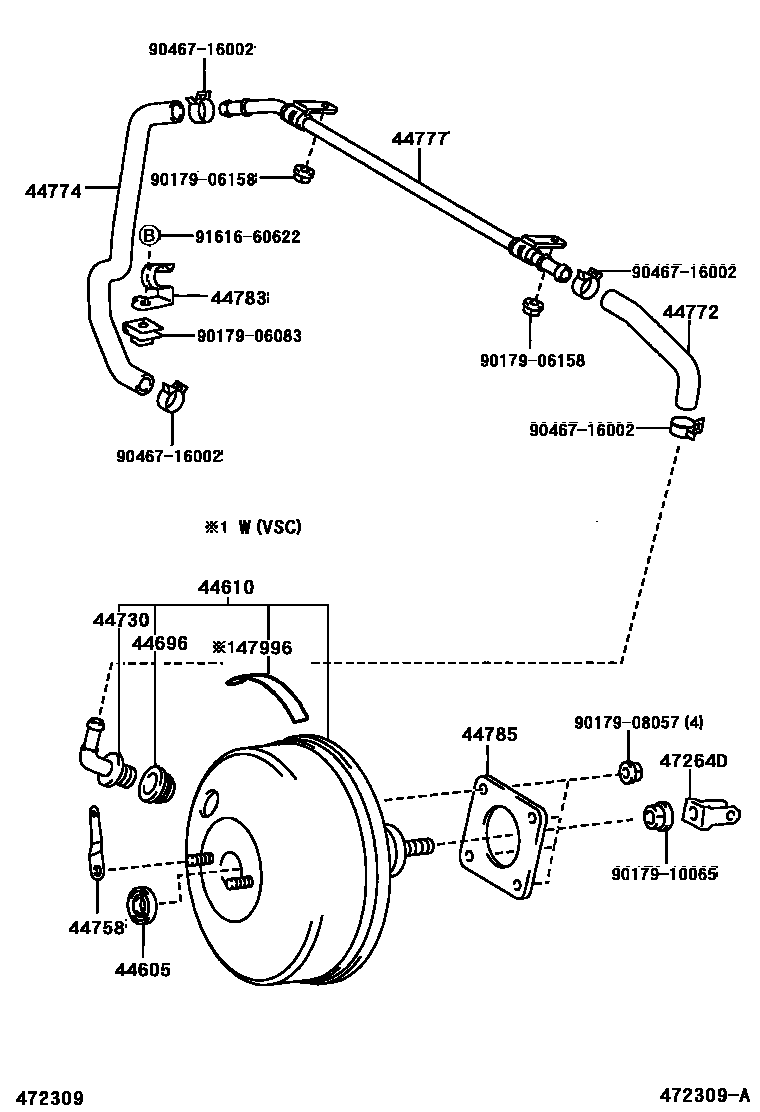

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-48010iACU2#,MCU2#200011-200308

44610BOOSTER ASSY, BRAKE

main44610-48110iACU2#,MCU2#200011-200105

sub44610-48141

main44610-48120iACU2#,MCU2#200011-200105

W(VSC)

sub44610-48151

main44610-48141iACU2#,MCU2#200105-200208

main44610-48142iACU2#,MCU2#200208-200308

main44610-48151iACU2#,MCU2#200105-200308

W(VSC)

main44610-48270iACU2#,MCU2#200308

sub44610-48271

44696GROMMET, CHECK VALVE

main90480-24015iACU2#,MCU2#200011-200308

main90480-24439iACU2#,MCU2#200308

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iACU2#,MCU2#200308

main44730-28010iACU2#,MCU2#200011-200308

44758BRACKET, VACUUM CHECK VALVE

main44758-20220iACU2#,MCU2#200011-200308

main44758-60060iACU2#,MCU2#200308

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-48030iACU2#200011-200308

main44772-48040iACU2#200308

44774HOSE, UNION TO CONNECTOR TUBE

main44774-48020iACU2#200011-200308

main44774-48030iACU2#200308

44777CONNECTOR, VACUUM HOSE, NO.1

main44770-48020iACU2#200011-200308

main44770-48021iACU2#200308

44783CLAMP, VACUUM HOSE

main44783-28010iACU2#200011-200308

44785GASKET, BRAKE BOOSTER

main44785-10020iACU2#,MCU2#200308-200309

main44785-16020iACU2#,MCU2#200309

main44785-32010iACU2#,MCU2#200011-200308

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iACU2#,MCU2#200011-200208

W(VSC)

main47264-30060iACU2#,MCU2#200208-200308

main47264-48010iACU2#,MCU2#200011-200208

47996LABEL, BRAKE BLEED NOTICE

main47996-50050iACU2#,MCU2#200011-200308

9017906083

main90179-06083

9017906158

main90179-06158

9017908057

main90179-08057

9017910065

main90179-10065

9046716002

main90467-16002

9161660622

main91616-60622

18 parts on this diagram · 4 diagrams in section
