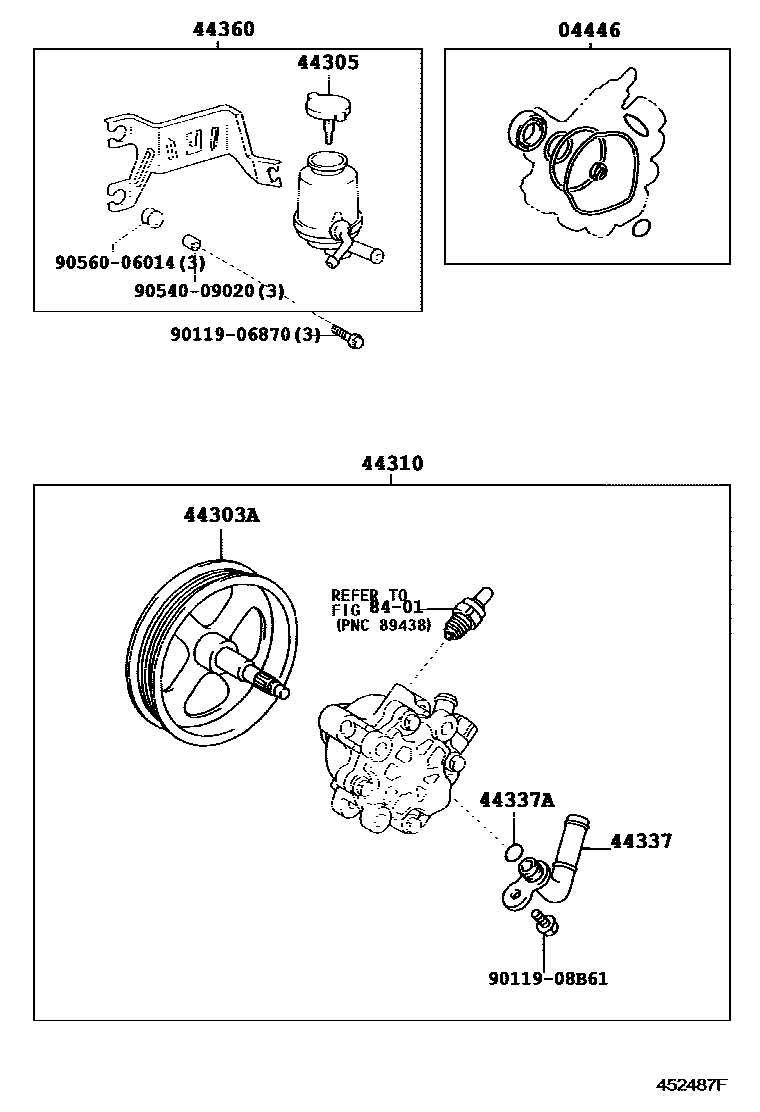

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iACU2#200011-200308

main04446-34010iMCU2#200011-200308

sub04446-53030

main04446-53030iMCU2#200308

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iACU2#200011-200308

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iACU2#,MCU2#200011-200308

sub44305-28060

44310PUMP ASSY, VANE

main44310-48030iACU2#200011-200308

sub44310-28240

main44310-48050iACU2#200308

44337UNION, POWER STEERING SUCTION PORT

main44337-48010iACU2#200011-200308

main44337-48020iMCU2#200011-200308

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iMCU2#200011-200308

main90301-11020iACU2#200011-200308

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-48030iACU2#,MCU2#200011-200308

8401

9011906870

main90119-06870

9011908B61

main90119-08B61

9054009020

main90540-09020

9056006014

main90560-06014

12 parts on this diagram · 2 diagrams in section
