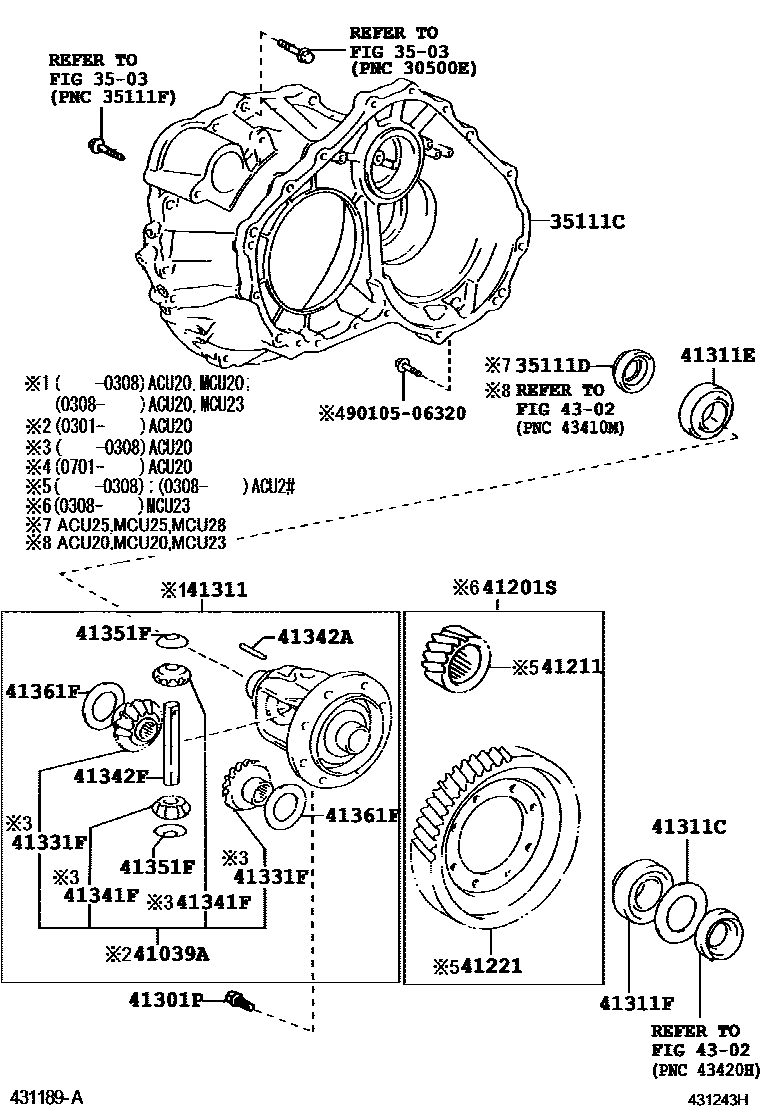

FRONT AXLE HOUSING & DIFFERENTIAL
3503
35111CHOUSING, TRANSAXLE
sub35105-28011
sub35105-28012
AISIN:REFER 35-01
AISIN:REFER 35-01
sub35105-28031
sub35105-42011
sub35105-42012
sub35105-42013
sub35105-44060
sub35105-48021
sub35105-48022
AISIN:REFER 35-01
AISIN:REFER 35-01
41039AGEAR KIT, DIFFERENTIAL
sub41039-28030
41201SFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=80:23=3.478
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
TOYOTA:REFER 35-01
TOYOTA:REFER 35-01
AISIN:REFER 35-01
AISIN:REFER 35-01
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 0,TOYOTA:REFER 35-01
T=2.05,MARK 1,TOYOTA:REFER 35-01
T=2.10,MARK 2,TOYOTA:REFER 35-01
T=2.15,MARK 3,TOYOTA:REFER 35-01
T=2.20,MARK 4,TOYOTA:REFER 35-01
T=2.25,MARK 5,TOYOTA:REFER 35-01
T=2.30,MARK 6,TOYOTA:REFER 35-01
T=2.35,MARK 7,TOYOTA:REFER 35-01
T=2.40,MARK 8,TOYOTA:REFER 35-01
T=2.45,MARK 9,TOYOTA:REFER 35-01
T=2.50,MARK A,TOYOTA:REFER 35-01
T=2.55,MARK B,TOYOTA:REFER 35-01
T=2.60,MARK C,TOYOTA:REFER 35-01
T=2.65,MARK D,TOYOTA:REFER 35-01
T=2.70,MARK E,TOYOTA:REFER 35-01
T=2.75,MARK F,TOYOTA:REFER 35-01
T=2.80,MARK G,TOYOTA:REFER 35-01
T=2.85,MARK H,TOYOTA:REFER 35-01
T=1.90,MARK 0
T=1.95,MARK 1
T=2.00,MARK 2
T=2.05,MARK 3
T=2.10,MARK 4
T=2.15,MARK 5
T=2.20,MARK 6
T=2.25,MARK 7
T=2.30,MARK 8
T=2.35,MARK 9
T=2.40,MARK A
T=2.45,MARK B
T=2.50,MARK C
T=2.55,MARK D
T=2.60,MARK E
T=2.65,MARK F
T=2.70,MARK G
T=2.75,MARK H
T=2.80,MARK J
T=2.00,MARK 0
T=2.00,MARK 0,AISIN:REFER 35-01
T=2.05,MARK 1
T=2.05,MARK 1,AISIN:REFER 35-01
T=2.10,MARK 2
T=2.10,MARK 2,AISIN:REFER 35-01
T=2.15,MARK 3
T=2.15,MARK 3,AISIN:REFER 35-01
T=2.20,MARK 4,AISIN:REFER 35-01
T=2.20,MARK 4
T=2.25,MARK 5
T=2.25,MARK 5,AISIN:REFER 35-01
T=2.30,MARK 6,AISIN:REFER 35-01
T=2.30,MARK 6
T=2.35,MARK 7
T=2.35,MARK 7,AISIN:REFER 35-01
T=2.40,MARK 8,AISIN:REFER 35-01
T=2.40,MARK 8
T=2.45,MARK 9,AISIN:REFER 35-01
T=2.45,MARK 9
T=2.50,MARK A
T=2.50,MARK A,AISIN:REFER 35-01
T=2.55,MARK B
T=2.55,MARK B,AISIN:REFER 35-01
T=2.60,MARK C,AISIN:REFER 35-01
T=2.60,MARK C
T=2.65,MARK D,AISIN:REFER 35-01
T=2.65,MARK D
T=2.70,MARK E,AISIN:REFER 35-01
T=2.70,MARK E
T=2.75,MARK F,AISIN:REFER 35-01
T=2.75,MARK F
T=2.80,MARK G,AISIN:REFER 35-01
T=2.80,MARK G
T=2.85,MARK H,AISIN:REFER 35-01
T=2.85,MARK H
T=2.025,MARK J,AISIN:REFER 35-01
T=2.075,MARK K,AISIN:REFER 35-01
T=2.125,MARK L,AISIN:REFER 35-01
T=2.175,MARK M,AISIN:REFER 35-01
T=2.225,MARK N,AISIN:REFER 35-01
T=2.275,MARK P,AISIN:REFER 35-01
T=2.325,MARK Q,AISIN:REFER 35-01
T=2.375,MARK R,AISIN:REFER 35-01
T=2.425,MARK S,AISIN:REFER 35-01
T=2.475,MARK T,AISIN:REFER 35-01
T=2.525,MARK U,AISIN:REFER 35-01
T=2.575,MARK V,AISIN:REFER 35-01
T=2.625,MARK W,AISIN:REFER 35-01
T=2.675,MARK X,AISIN:REFER 35-01
T=2.725,MARK Y,AISIN:REFER 35-01
T=2.775,MARK AA,AISIN:REFER 35-01
T=2.825,MARK AB,AISIN:REFER 35-01
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
TOYOTA:REFER 35-01
AISIN:REFER 35-01
AISIN:REFER 35-01
TOYOTA:REFER 35-01
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
AISIN:REFER 35-01
TOYOTA:REFER 35-01
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
AISIN:REFER 35-01
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
AISIN:REFER 35-01
AISIN
TOYOTA
TOYOTA:REFER 35-01
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
T=1.625
T=1.725
T=1.825
4302
9010506320
main90105-06320
20 parts on this diagram · 1 diagram in section
