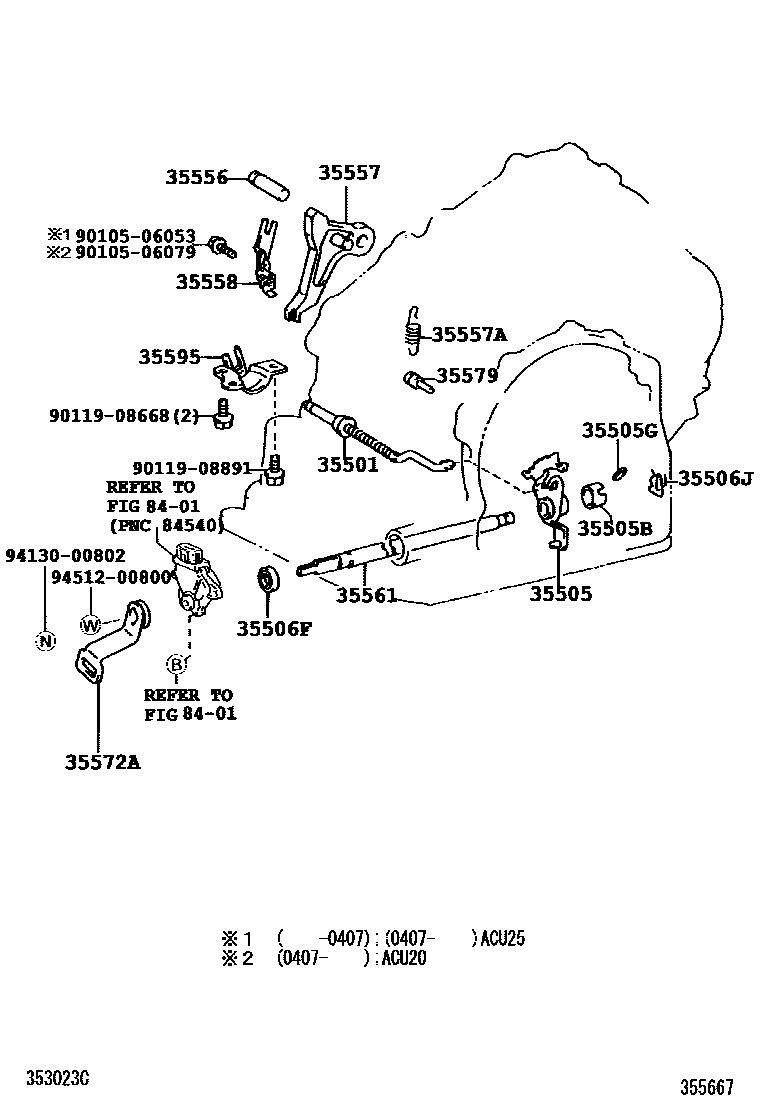

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U140E,U140F,U241E 0003 1U151E,U151F

35501ROD SUB-ASSY, PARKING LOCK

main35501-07010iMCU2#200602-200603

(L)

main35501-21010iACU2#200011-200308

main35501-21010iMCU2#200308-200603

(J)

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-21010iACU2#,MCU2#200011-200308

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iACU2#,MCU2#200011-200308

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iACU2#,MCU2#200011-200308

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iACU25,MCU2#200011-200705

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iACU2#,MCU2#200011-200308

35556SHAFT, PARKING LOCK PAWL

main35556-07010iMCU2#200602

TOYOTA:REFER 35-01

sub35556-21010

main35556-28010iMCU2#200308

AISIN:REFER 35-01

main35556-28010iACU25,MCU2#200011-200308

main35556-28020iACU20200011-200407

main35556-32030iACU20200407

35557PAWL, PARKING LOCK

main35557-28010iACU25,MCU2#200011-200206

sub35590-21010

main35557-28020iACU20200011-200407

sub35590-32010

main35590-21010iACU25,MCU2#200206-200308

main35590-32010iACU20200407

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90080-50373iMCU2#200602

(L)

main90506-18077iACU2#200308

(J)

main90506-18077iACU2#,MCU2#200011-200308

35558CLAMP, PAWL SHAFT

main35558-21010iMCU2#200602

TOYOTA:REFER 35-01

main35558-28010iACU25200308

AISIN:REFER 35-01

main35558-28010iACU25,MCU2#200011-200308

main35558-28020iACU20200011-200407

main35558-32010iACU20200407

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iACU2#,MCU2#200011-200308

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-08010iMCU2#200602-200705

(L),TMC:REFER 35-01

main35572-28100iMCU2#200308-200705

AISIN:REFER 35-01

sub35572-48010

main35572-28100iACU2#,MCU2#200011-200407

sub35572-48010

main35572-48010iACU20200407-200705

main35572-48010iMCU2#200602-200705

(J),TMC:REFER 35-01

35579PIN, PARKING LOCK PAWL

main35594-07010iMCU2#200602

TOYOTA:REFER 35-01

sub35594-21010

main35594-21010iACU20200407

main35594-28010iACU25200308

AISIN:REFER 35-01

main35594-28010iACU2#,MCU2#200011-200407

35595BRACKET, PARKING LOCK PAWL

main35595-21010iACU2#,MCU2#200011-200308

8401

9010506053

main90105-06053

9010506079

main90105-06079

9011908668

main90119-08668

9011908891

main90119-08891

9413000802

main94130-00802

9451200800

main94512-00800

21 parts on this diagram · 2 diagrams in section
