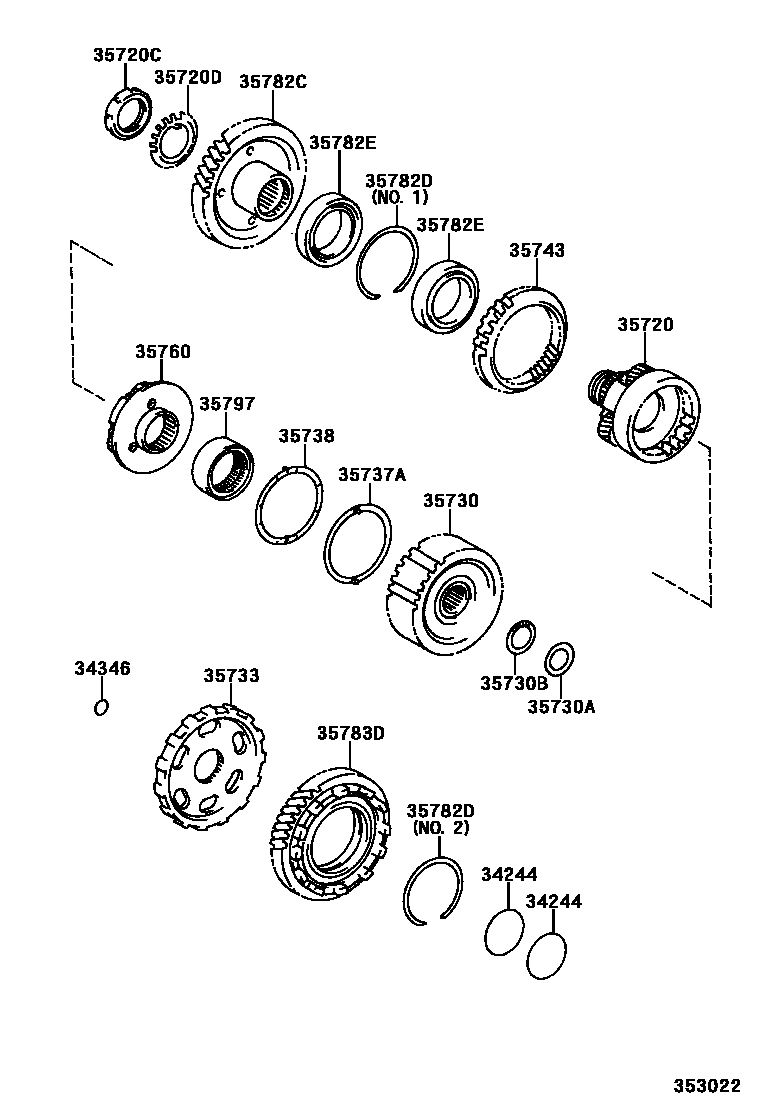

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL
35720CNUT (FOR FRONT PLANETARY GEAR)
(J)
(L)
35720DWASHER (FOR FRONT PLANETARY GEAR)
35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)
TOYOTA:REFER 35-01
AISIN:REFER 35-01
35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)
NO.2,BLACK PAINTED
NO.2 BLACK PAINTED
NO.2 BROWN PAINTED
*116,NO.1
*122,NO.1
NO.2,T=3.4
NO.2,T=3.7
35733GEAR, PARKING LOCK
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
(L)TOYOTA:REFER35-01
(J)TOYOTA:REFER35-01
AISIN:REFER 35-01
35738WASHER, PLANETARY CARRIER THRUST, NO.2
(L)
(J)
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
*116,NO.1,(L)
*116,NO.2,(L)
*116,NO.1,(J)
NO.1
*122,NO.1
NO.2
*122,NO.2
*116,NO.2,(J)
35782EBEARING(FOR COUNTER DRIVE GEAR)
TOYOTA:REFER 35-01
AISIN:REFER 35-01
35797RACE, 1 WAY CLUTCH INNER
18 parts on this diagram · 2 diagrams in section
