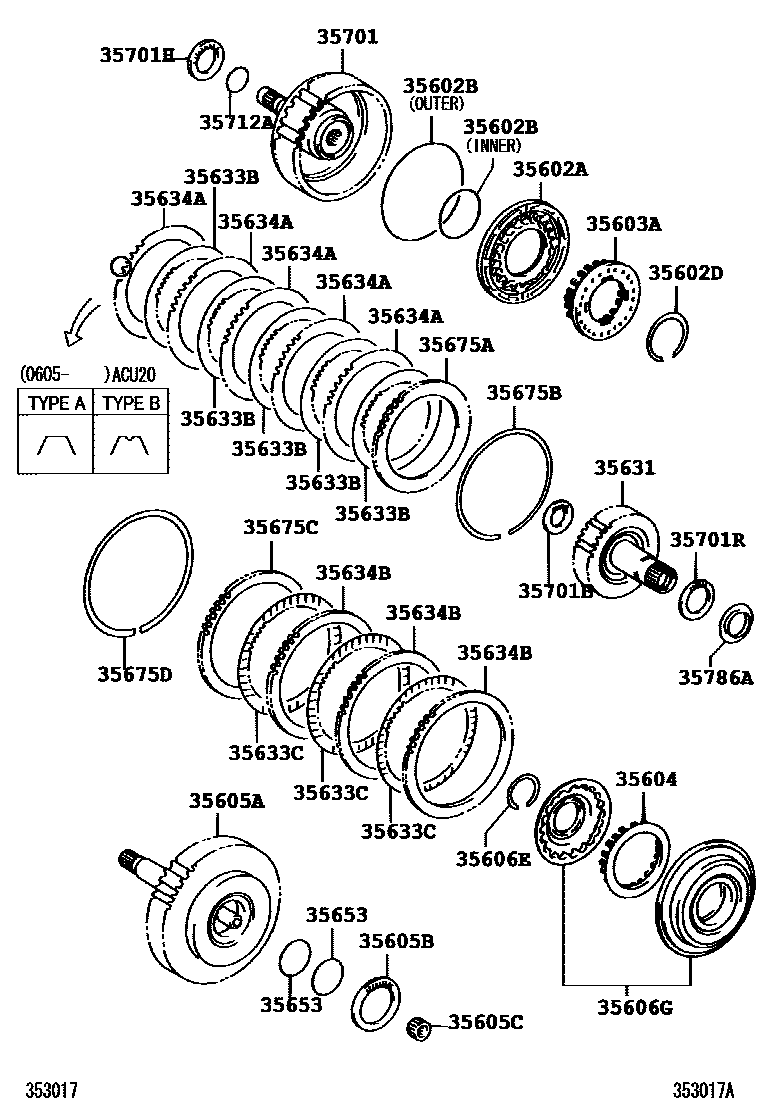

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35602APISTON SUB-ASSY, FORWARD CLUTCH
TOYOTA:REFER 35-01
AISIN:REFER 35-01
35602BRING, O (FOR FORWARD CLUTCH PISTON)
INNER
INNER
OUTER
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
(L)
(J)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
TOYOTA:REFER 35-01
AISIN:REFER 35-01
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35605ADRUM SUB-ASSY, DIRECT CLUTCH
35605BBEARING, THRUST NEEDLE ROLLER
TOYOTA:REFER 35-01
OD=69.97
AISIN:REFER 35-01
35605CBEARING, NEEDLE ROLLER
(L)
(J)
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35606GPISTON SET, DIRECT CLUTCH
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
(L)
(J)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
TOYOTA:REFER 35-01
AISIN:REFER 35-01
35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
(L)
(J)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8,TOYOTA:REFER 35-01
T=1.8
T=1.8,TYPE A:REFER ILLUST.
T=1.8
T=1.8,AISIN:REFER 35-01
T=1.8,TYPE B:REFER ILLUST.
35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
T=1.8,(L)
T=3.0
T=3.0
T=1.8,(J)
35653RING, REAR CLUTCH OIL SEAL, OUTER
35675AFLANGE, FORWARD CLUTCH
T=3.00,(L)
T=3.15,(L)
T=3.30,(L)
T=3.45,(L)
T=3.60,(L)
T=3.00,(J)
T=3.00
T=3.15,(J)
T=3.15
T=3.30,(J)
T=3.30
T=3.45,(J)
T=3.45
T=3.60,(J)
T=3.60
T=3.75
T=2.85
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
(L)
(J)
35675CFLANGE, DIRECT CLUTCH
T=3.0,(L)
T=3.1,(L)
T=3.2,(L)
T=3.3,(L)
T=3.4,(L)
T=3.5,(L)
T=3.6,TOYOTA:REFER 35-01
T=3.0
T=3.0,(J)
T=3.1,(J)
T=3.1
T=3.2
T=3.2,(J)
T=3.3
T=3.3,(J)
T=3.4
T=3.4,(J)
T=3.5
T=3.5,(J)
T=2.9
T=3.6,AISIN:REFER 35-01
T=3.6
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
(L)
(J)
35701SHAFT SUB-ASSY, INPUT
TOYOTA:REFER 35-01
AISIN:REFER 35-01
35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
(L)
(J)
35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
OD=52.05,(L)
OD=52.2
OD=52.2,(J)
35701RBEARING, THRUST NEEDLE ROLLER
(L)
(J)
35712ARING, INPUT SHAFT OIL SEAL
35786ARACE, THRUST BEARING, NO.1
(L)
(J)
