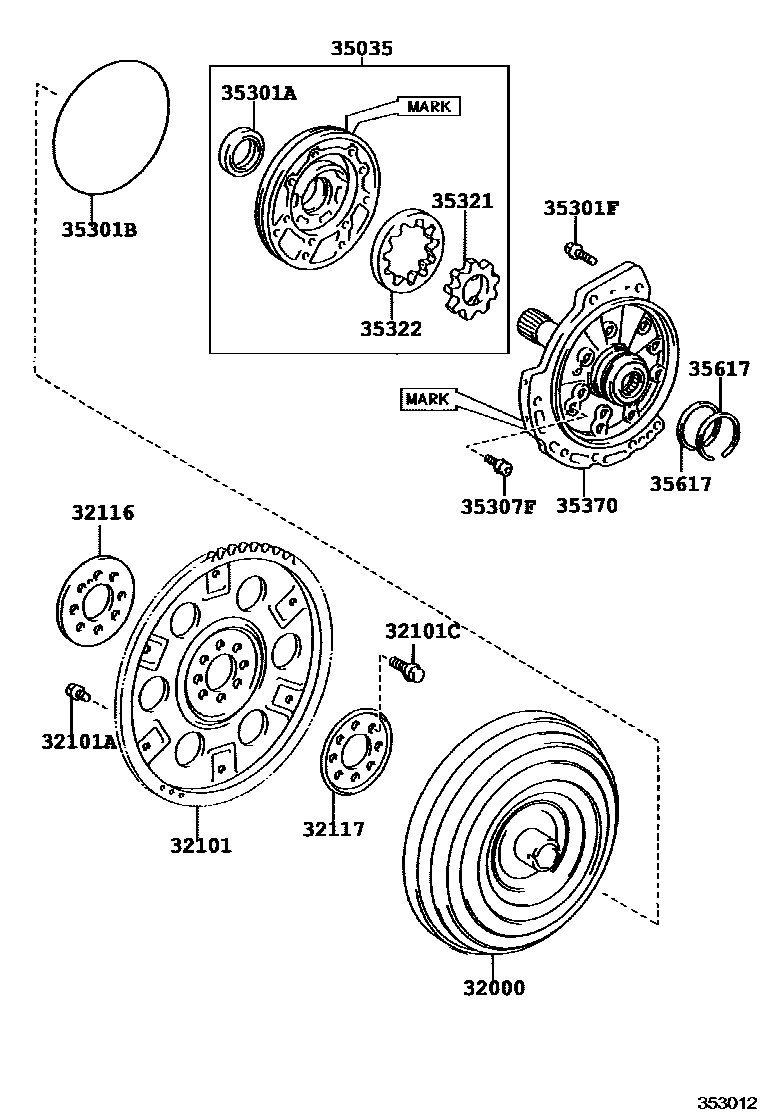

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
(L)
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,GREEN
*9-1.25PX12.4-8.4,YELLOW
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13,(J)
*10-1.25PX18-13
35301ASEAL, OIL (FOR FRONT OIL PUMP)
(L)
(J)
35301BRING, O (FOR FRONT OIL PUMP BODY)
(L)
(J)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX28-28,TOYOTA:REFER 35-01
*8-1.25PX28-28
*8-1.25PX28-28,AISIN:REFER 35-01
*8-1.25PX28-28
35307FBOLT (FOR STATOR SHAFT)
(L)
(J)
35321GEAR, FRONT OIL PUMP DRIVE
T=11.715,MARK A,(L)
T=11.715,MARK B,(L)
T=11.715,MARK C,(L)
T=11.715,MARK D,(L)
T=11.715,MARK E,(L)
T=10.715,MARK 1
T=10.715,MARK 2
T=10.715,MARK 3
T=10.715,MARK 4
T=10.715,MARK 5
T=11.715,MARK A,(J)
T=11.715,MARK B,(J)
T=11.715,MARK C,(J)
T=11.715,MARK D,(J)
T=11.715,MARK E,(J)
35322GEAR, FRONT OIL PUMP DRIVEN
T=11.715,MARK A,(L)
T=11.715,MARK B,(L)
T=11.715,MARK C,(L)
T=11.715,MARK D,(L)
T=11.715,MARK E,(L)
T=10.715,MARK 1
T=10.715,MARK 2
T=10.715,MARK 3
T=10.715,MARK 4
T=10.715,MARK 5
T=11.715,MARK A,(J)
T=11.715,MARK B,(J)
T=11.715,MARK C,(J)
T=11.715,MARK D,(J)
T=11.715,MARK E,(J)
35617RING, CLUTCH DRUM OIL SEAL
15 parts on this diagram · 2 diagrams in section
