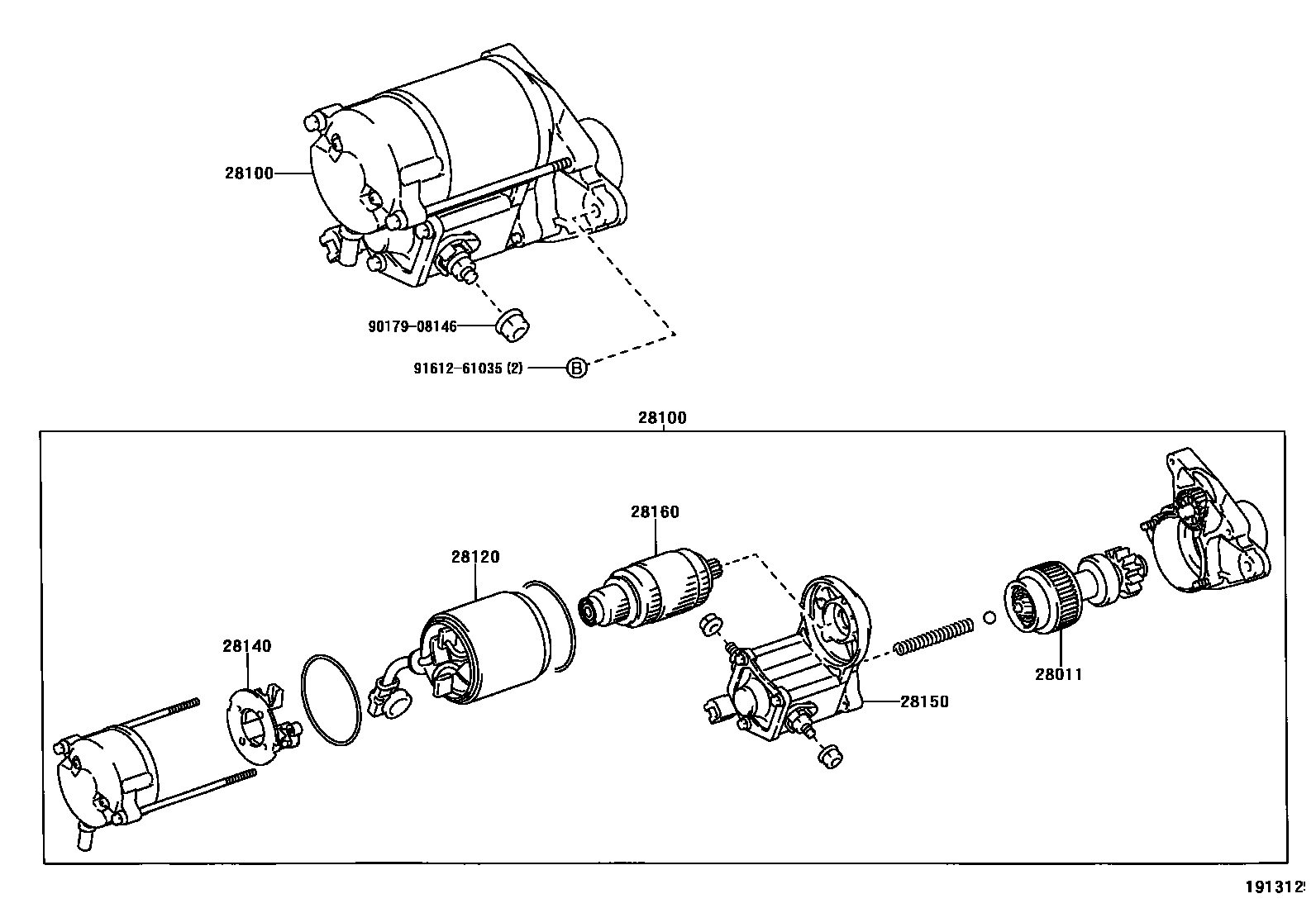

STARTER

0001 112V 1.4W 0002 112V 1.6KW,1.7KW

28011CLUTCH SUB-ASSY, STARTER

main28011-74070i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

28100STARTER ASSY

main28100-03100i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

12V 1.4KW,(L)

main28100-20020i3MZFE..MCU2#200308

12V 1.7KW

sub28100-20021

main28100-28041i2AZFE..ACU2#200308

12V 1.6KW

sub28100-28042

main28100-74260i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

12V 1.4KW,(J)

28120YOKE ASSY, STARTER

main28120-01030i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

(L)

main28120-28040i2AZFE,3MZFE..ACU2#,MCU2#200308

sub28120-28060

main28120-66040i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

(J)

28140HOLDER ASSY, STARTER BRUSH

main28140-03010i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

(L)

main28140-74070i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

(J)

28150SWITCH ASSY, MAGNET STARTER

main28150-03100i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

(L)

main28150-74270i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

(J)

28160ARMATURE ASSY, STARTER

main28160-01020i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

(L)

main28160-28040i2AZFE,3MZFE..ACU2#,MCU2#200308

main28160-74070i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

(J)

9017908146

main90179-08146

9161261035

main91612-61035

8 parts on this diagram · 2 diagrams in section
