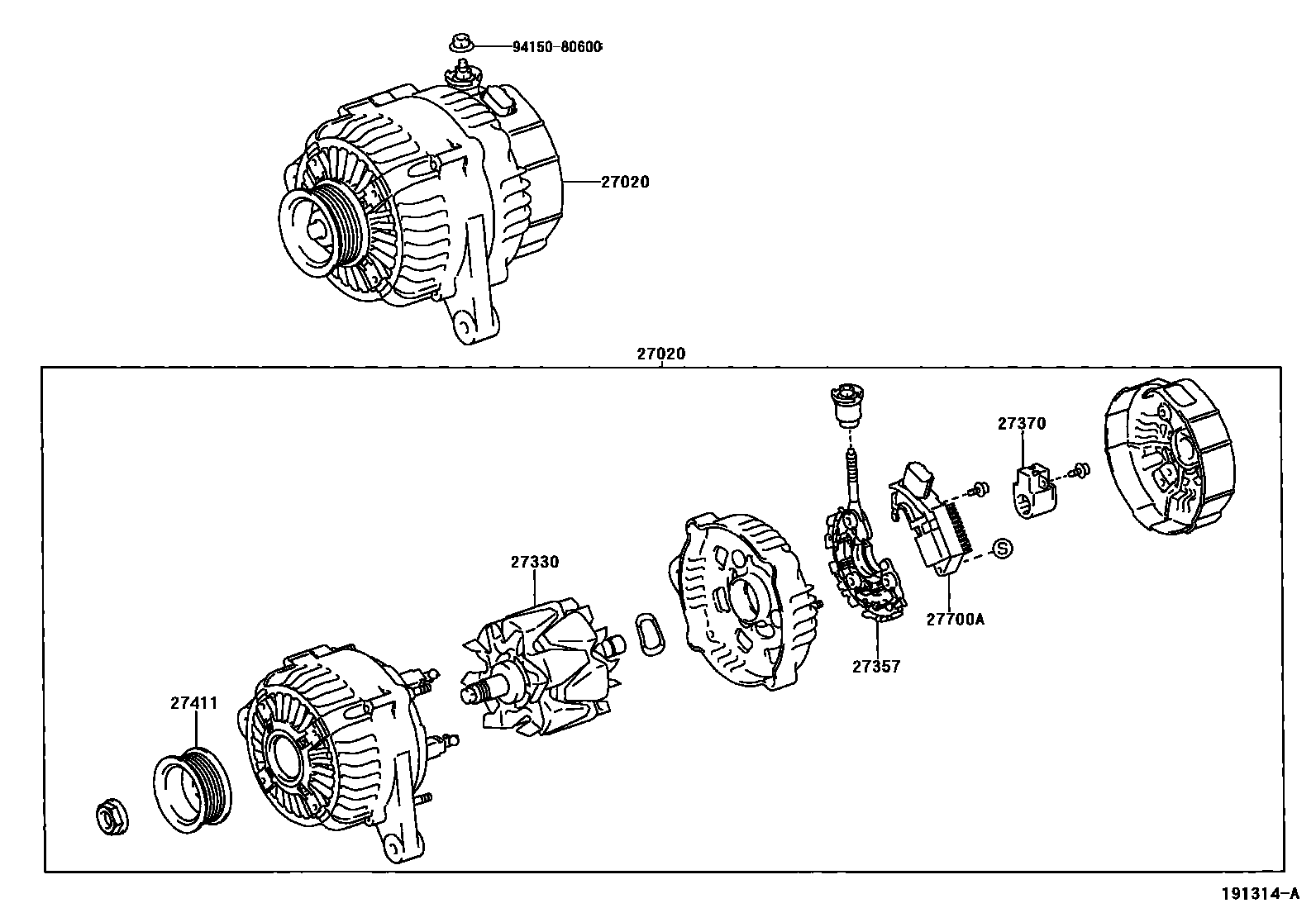

ALTERNATOR

0001 112V 100A 0002 112V 130A 0003 112V 130A 0004 112V 100A 0005 112V 100A,130A 0006 112V 100A,130A

27020ALTERNATOR ASSY

main27060-20170i1MZFE..MCU2#200011-200308

12V 130A

sub27060-20180

main27060-20200i1MZFE..MCU2#200011-200308

12V 100A

main27060-20270i3MZFE..MCU2#200308

12V 100A

sub27060-20210

main27060-20280i3MZFE..MCU2#200308

12V 130A

sub27060-20290

main27060-28100i2AZFE..ACU2#200011-200308

12V 100A

sub27060-28090

main27060-28130i2AZFE..ACU2#200011-200308

12V 130A

main27060-28270i2AZFE..ACU2#200308

12V 100A

sub27060-28260

main27060-28290i2AZFE..ACU2#200308

12V 130A

sub27060-28240

27330ROTOR ASSY, ALTERNATOR

main27330-20070i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

12V 100A

main27330-20130i2AZFE,1MZFE..ACU2#,MCU2#200011-200602

12V 130A

sub27330-33090

main27330-30070i2AZFE,3MZFE..ACU2#,MCU2#200308

12V 100A

main27330-33090i2AZFE,3MZFE..ACU2#,MCU2#200602

12V 130A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-70450i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

12V 100A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i2AZFE,1MZFE..ACU2#,MCU2#200011-200602

12V 130A

main27370-58460i2AZFE,3MZFE..ACU2#,MCU2#200308

12V 100A

main27370-75060i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

12V 100A

27411PULLEY, ALTERNATOR

main27411-28060i2AZFE..ACU2#200011-200308

main27411-46080i1MZFE..MCU2#200011-200308

27700AREGULATOR ASSY, GENERATOR

main27700-20050i2AZFE,1MZFE..ACU2#,MCU2#200011-200308

12V 100A

9415080600

main94150-80600

7 parts on this diagram · 6 diagrams in section
