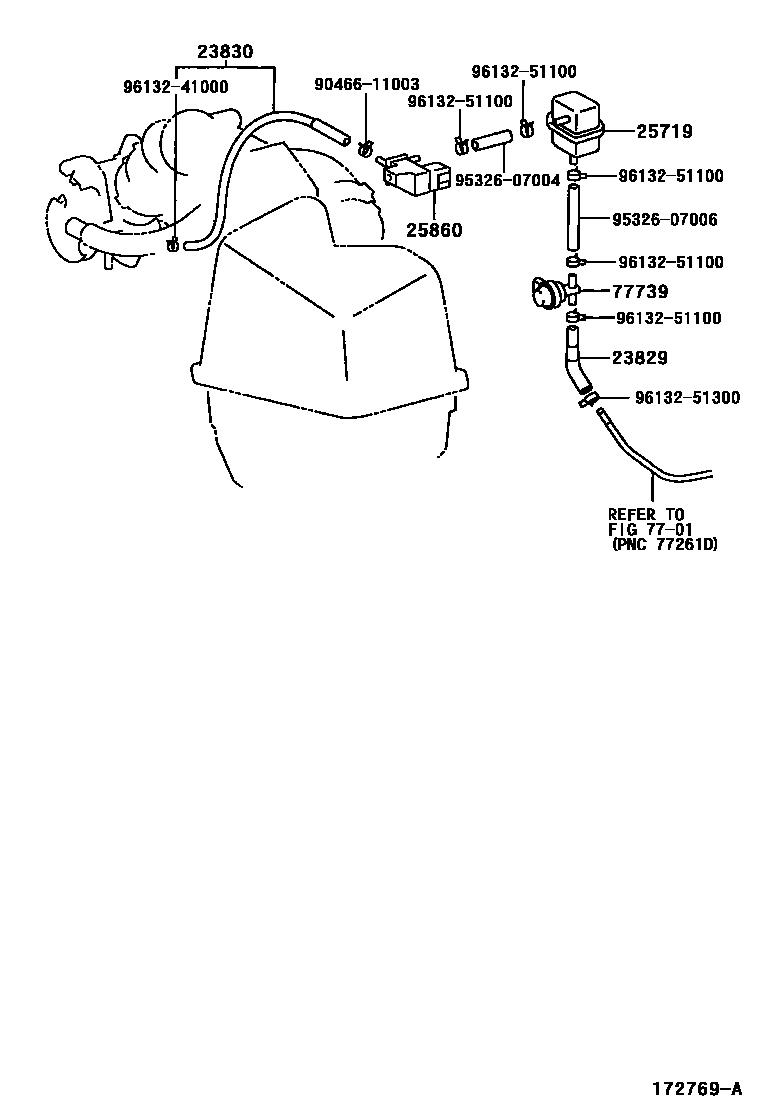

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-20050i1MZFE..MCU2#200011-200308

main23829-28050i2AZFE..ACU2#200011-200308

23830HOSE ASSY, FUEL VAPOR FEED, NO.2

main23830-28040i2AZFE..ACU2#200011-200308

sub23829-28070

sub96132-41000

main23830-28110i2AZFE..ACU2#200308

25719TANK, VACUUM SURGE

main25719-20020i1MZFE..MCU2#200011-200112

main25719-20040i1MZFE..MCU2#200112-200308

main25719-28020i2AZFE..ACU2#200203-200308

main25719-62040i2AZFE..ACU2#200011-200203

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28010i2AZFE..ACU2#200011-200308

main25860-28050i2AZFE..ACU2#200308

main25860-62010i1MZFE..MCU2#200011-200308

7701

77739VALVE, EVAP SERVICE PORT

main77739-33010iMCU2#200011-200608

9046611003

main90466-11003

9532607004

main95326-07004

9532607006

main95326-07006

9613241000

main96132-41000

9613251100

main96132-51100

9613251300

main96132-51300

12 parts on this diagram · 4 diagrams in section
