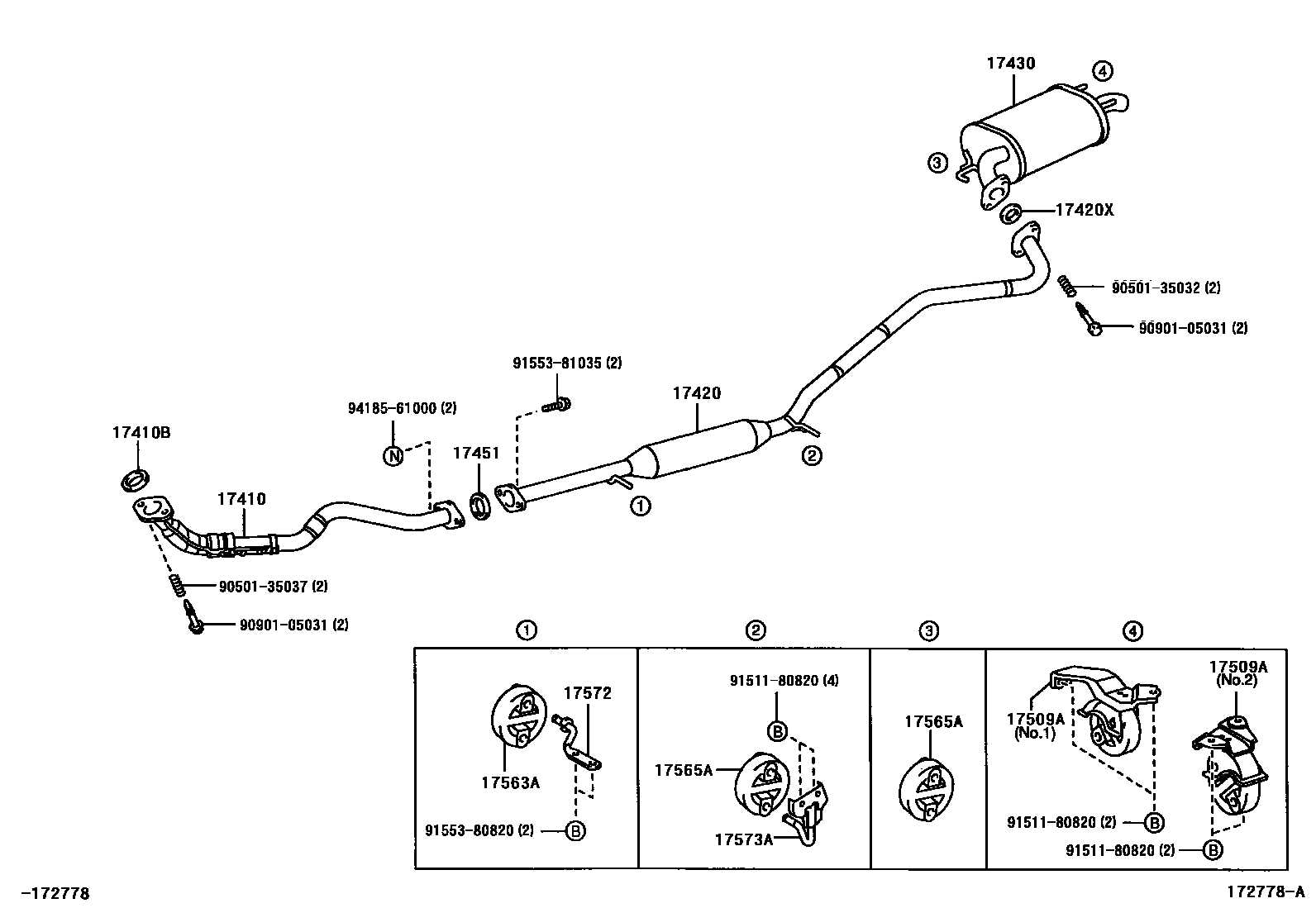

EXHAUST PIPE
17410BGASKET, EXHAUST PIPE
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
REAR
NO.1
NO.2
FRONT,NO.1
FRONT,NO.2
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
NO.1
NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
9050135032
main90501-35032
9050135037
main90501-35037
9090105031
main90901-05031
9151180820
main91511-80820
9155380820
main91553-80820
9155381035
main91553-81035
9418561000
main94185-61000
19 parts on this diagram · 4 diagrams in section
